ComBricks User Manual v6.4.0 | January 18| © PROCENTEC 47/219
4.5 Network configuration
The network names and the assignment of the repeater modules are customized here. For optimal use of
ProfiTrace OE, it is important that correct and understandable network names are defined (see Fig. 32). The
network names are used in multiple components: ProfiTrace Live List, event emails, message recording, etc.
Each of the 4 Live Lists can be individually setup to a different time-out. The default value is 5 seconds. The
time indicates how long a slave will be displayed as green when it has lost communication to the master. After
the set time it will turn yellow if it has no communication anymore.
The network assignment of the repeater modules is also displayed and can be adjusted if software settings are
enabled (see Fig. 32). It is possible to assign a module to Network 1 to 4, or to disconnect it from the
backplanes. This makes it possible to create a multiplexed system, or temporarily remove certain slaves from
the PROFIBUS network.
Dipswitch settings are always primary to software settings.
Network selection:
1, 2, 3 , 4 or
Not Connected
Customizable
network names
Hardware or
software settings
Head Stations: 1A, 1B, 1C
Firmware: V1.252 and higher
Login: Administrator

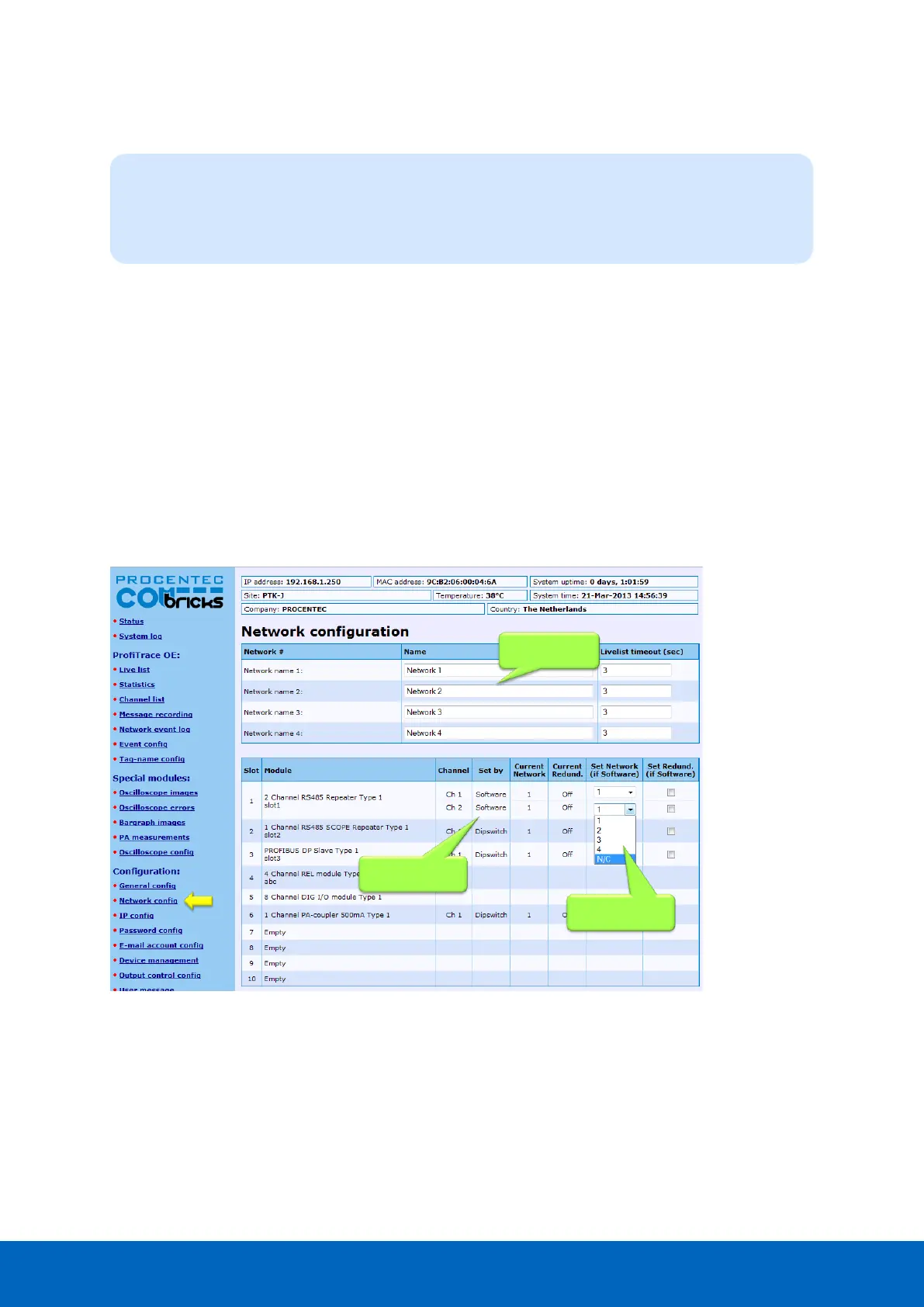

Fig. 32 - Network configuration
