5.2 Statistics
The statistics matrix is a powerful feature of the analyzer. This field can really indicate what the condition of
the installation is. It displays all the important information that a user, especially a maintenance technician, is
really interested in (see Fig. 39):
Retry messages
Fall-outs (losts)
Diagnostic messages
Location of the connected devices, etc.
Paragraph 5.9 describes the statistics and when they occur.
Because of this feature, the user does not have to inspect messages or do difficult operations to ensure the
quality of the installation.
If the statistics do NOT show deviations, the installation appears to be running correctly.
Here it stops for the technician who is only interested in a quick feedback. The advanced technician can
proceed with a message recording and an inspection of the signal quality.
Similar Statistics as
ProfiTrace 2
Monitoring 4
networks
Monitoring 4
networks
Monitoring 4
networks
Monitoring 4
networks

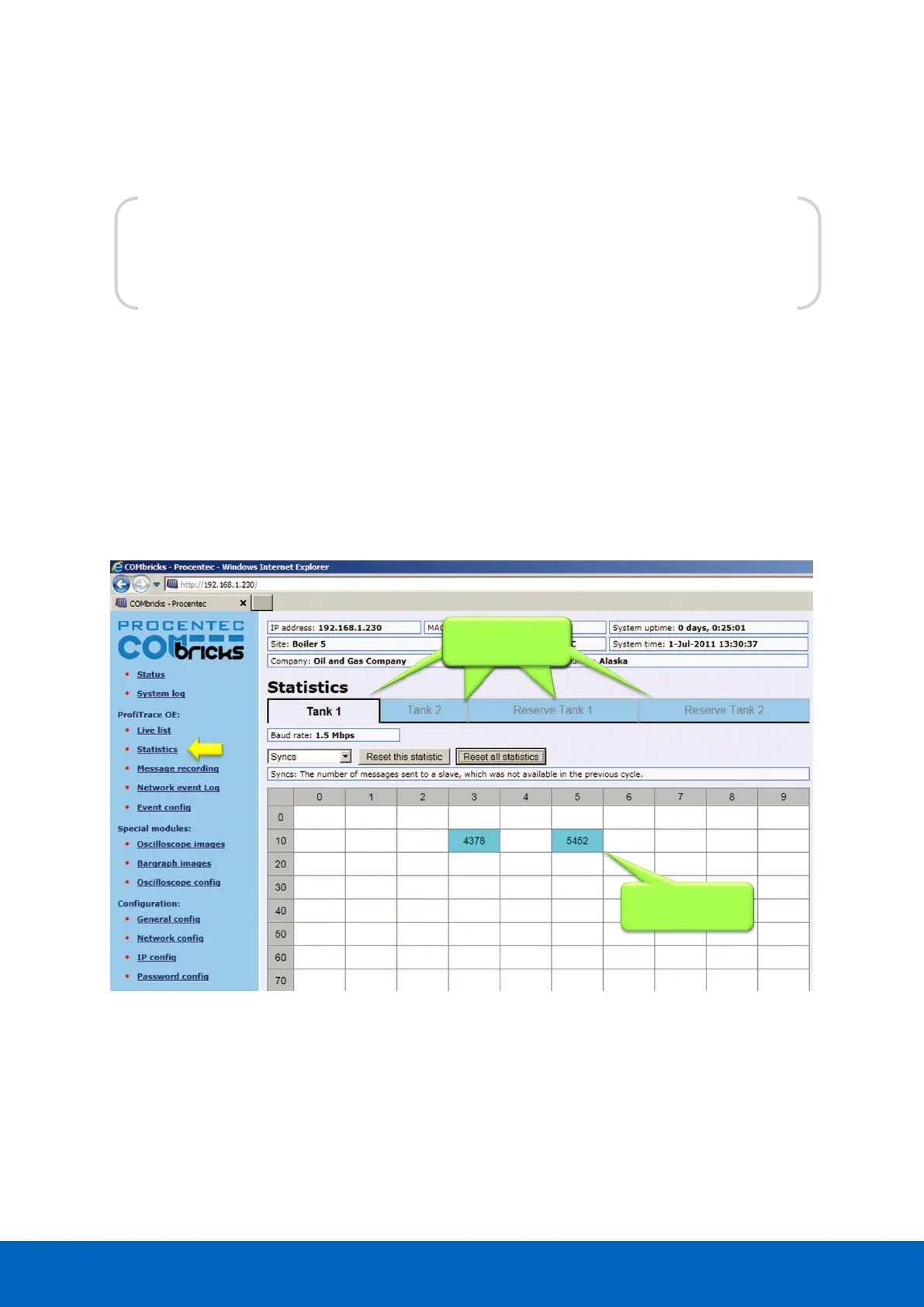

Fig. 39 - ProfiTrace OE Statistics
