ComBricks User Manual v6.4.0 | January 18| © PROCENTEC 84/219
7.2 Channel structure

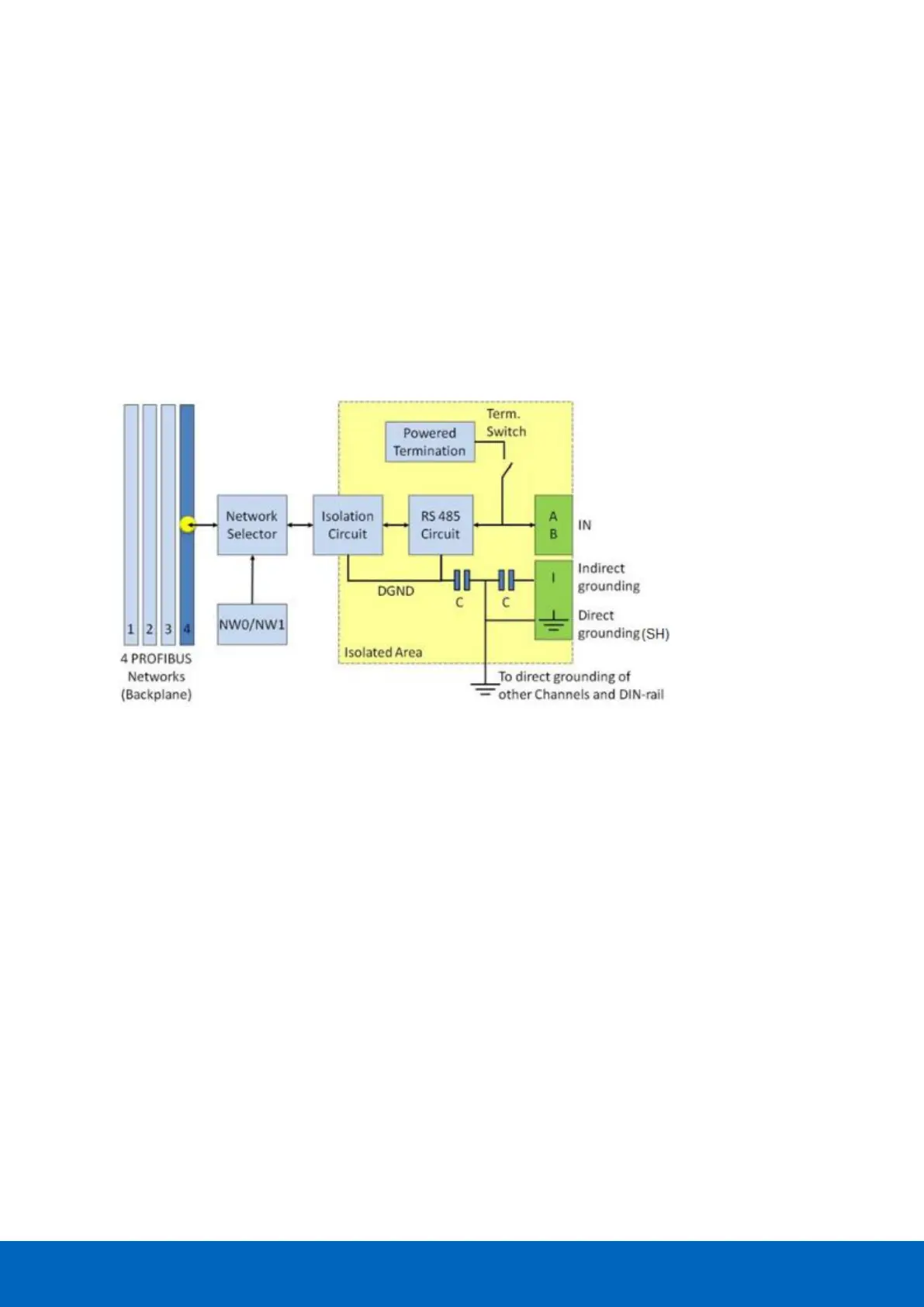

Every Channel is electrically isolated and internally connected to one of the transparent PROFIBUS networks on
the backplane (see Fig. 51).
The shielding of the PROFIBUS cable can be directly grounded or indirectly grounded (see Paragraph 7.4).
The termination is switchable and powered by the repeater module. A LED on the front of the module or in the
web server diagnostics indicate the status of the termination switch.
For the old models: When the termination is switched ON, the OUT connector of the specific
channel is disconnected. If it is activated on Channel 1, the DB9 connector is NOT disconnected. In
that case, check for possible termination errors. An extra termination on the connected plug could
jeopardize the communication on the segment. See paragraph 3.11 for examples.
