ComBricks User Manual v6.4.0 | January 18| © PROCENTEC 12/219
1.4.1 Cable Redundancy
The bus redundancy technology of the repeater modules is very advanced. A redundant system can be built
using 10 parallel cables. This architecture provides extremely high availability. Most suppliers only allow 2
cables (see Fig. 3).
redundant channels
Maximum 10 redundant channels
1 channel repeaters
2 segments
3 segments
Mix of 1 channel and
2 channel repeaters
2 segments
Maximum 10 modules (2 channel repeaters)
20 segments

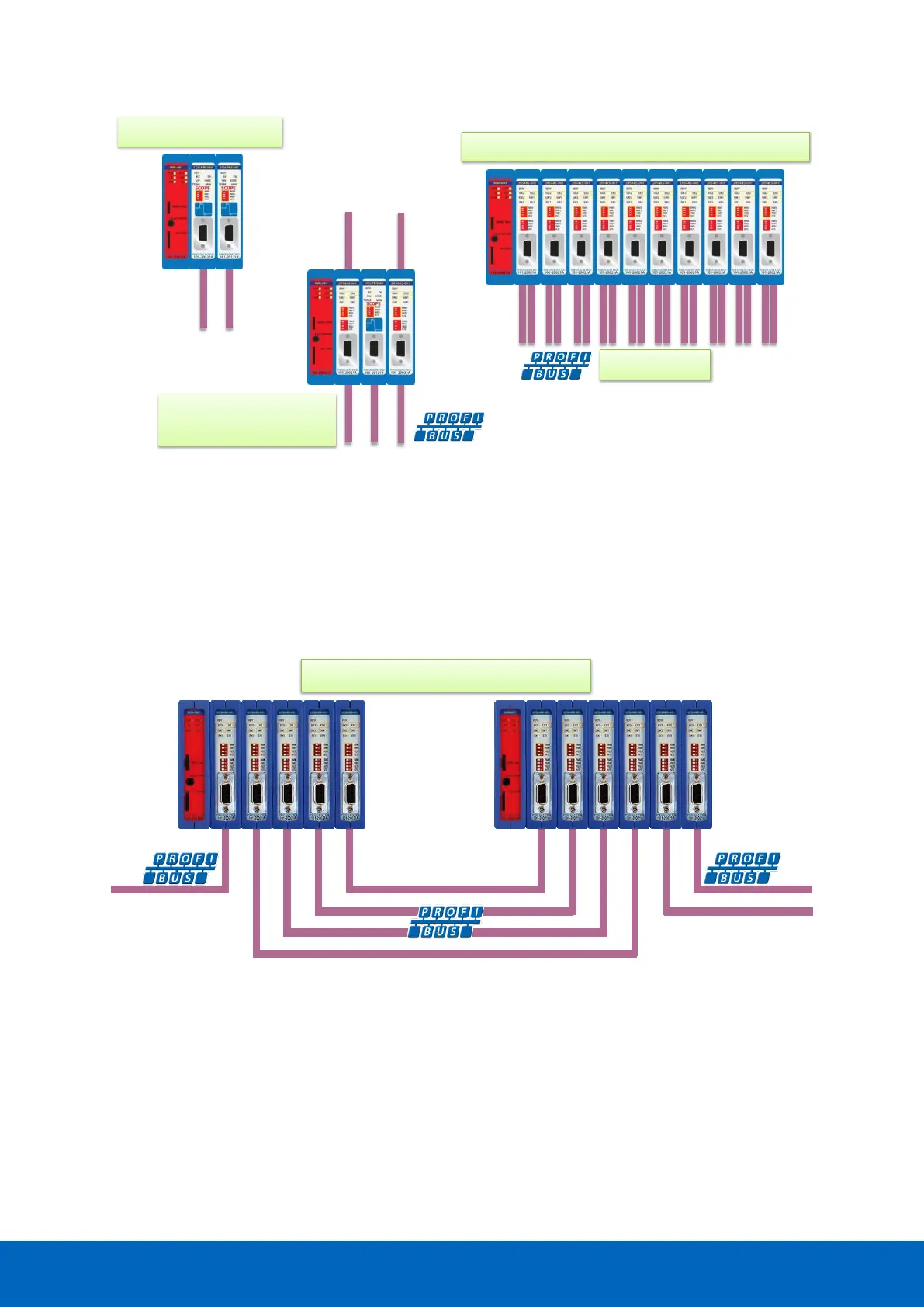

Fig. 3 - Redundancy configuration example
