ComBricks User Manual v6.4.0 | January 18| © PROCENTEC 30/219
3.5 Detaching backplane units
Detaching backplane units is a delicate procedure that should be done according the description
below and Fig. 19 in order to prevent damages.
Do not add or remove backplane units while the backplane is powered!
This can cause serious damage to the ComBricks set.

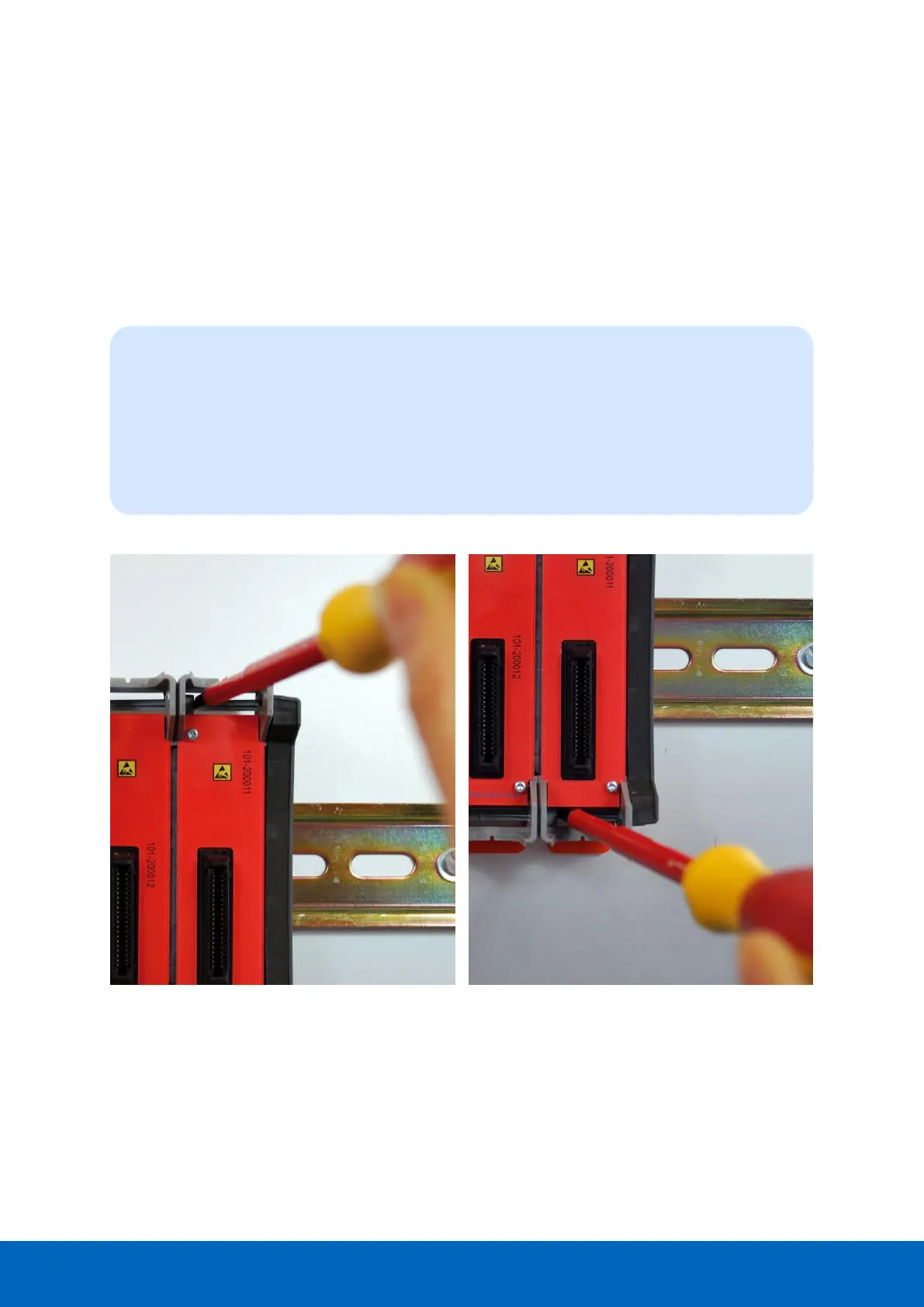

Fig. 19 - Detaching backplane units
STEP 1: Push the top arm down with a screwdriver and delicately pull the top of the backplane unit
that has to be removed. The arm should now be unlocked.
STEP 2: Push the bottom arm down with a screwdriver and delicately slide the bottom of the
backplane that has to be removed. The arm should now be unlocked.
STEP 3: Slide the backplane unit away from the section that remains.
