ComBricks User Manual v6.4.0 | January 18| © PROCENTEC 86/219

7.7 PROFIBUS DP cable specifications

The cable should comply with the PROFIBUS DP cable specifications for RS-485.

Table 4 - PROFIBUS DP cable specifications

Parameter

Value

Parameter

Value

Wires

2 (twisted)

Wire diameter

≥ 0.64 mm

Impedance

150 Ohm (3 to 20 MHz)

Wire area

≥ 0.32 mm

Capacity

≤ 30 pF/m

Shielding resistance

≤ 9.5 Ohm/km

Loop resistance

≤ 110 Ohm/km

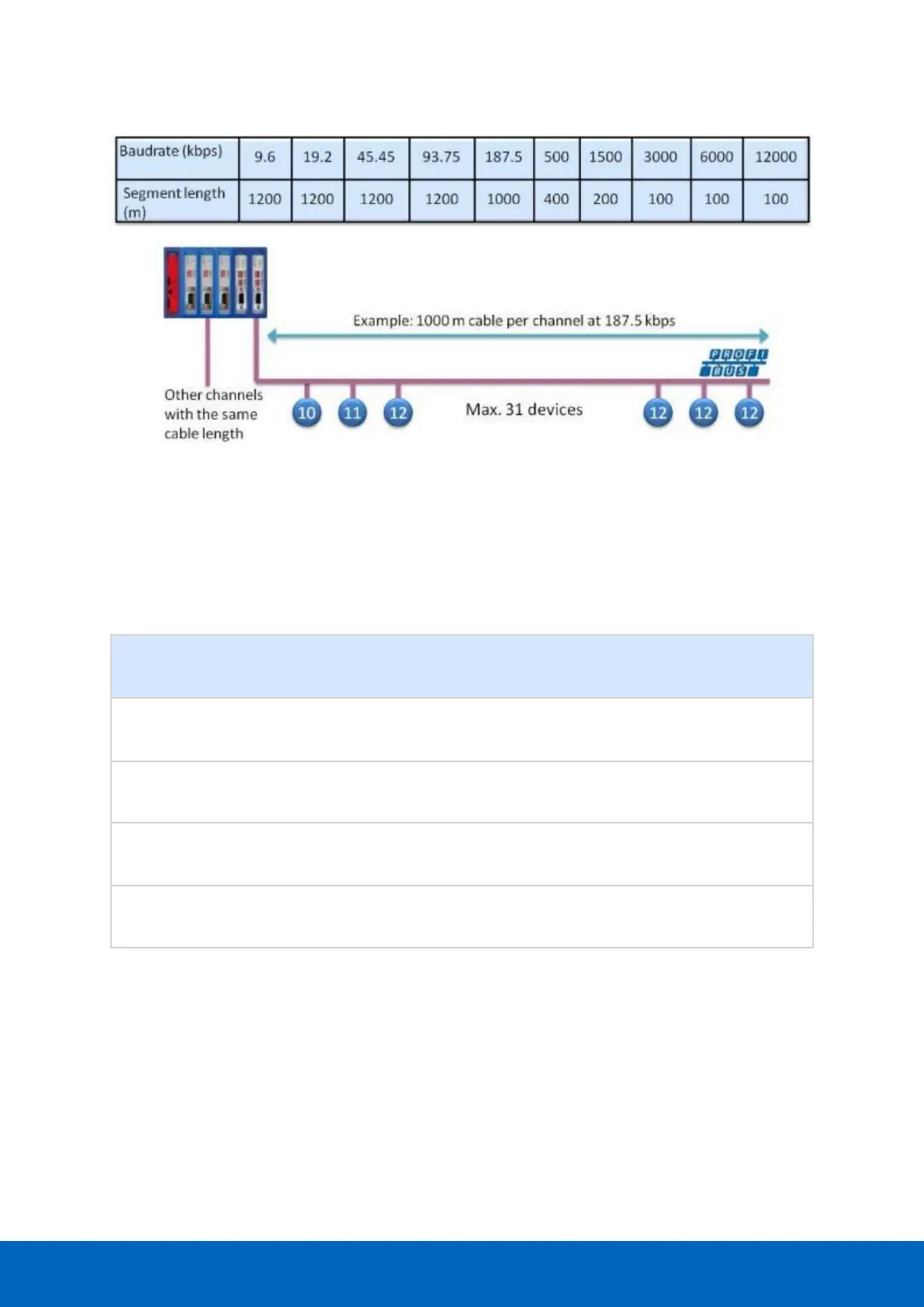

Fig. 53 - PROFIBUS DP cable lengths
