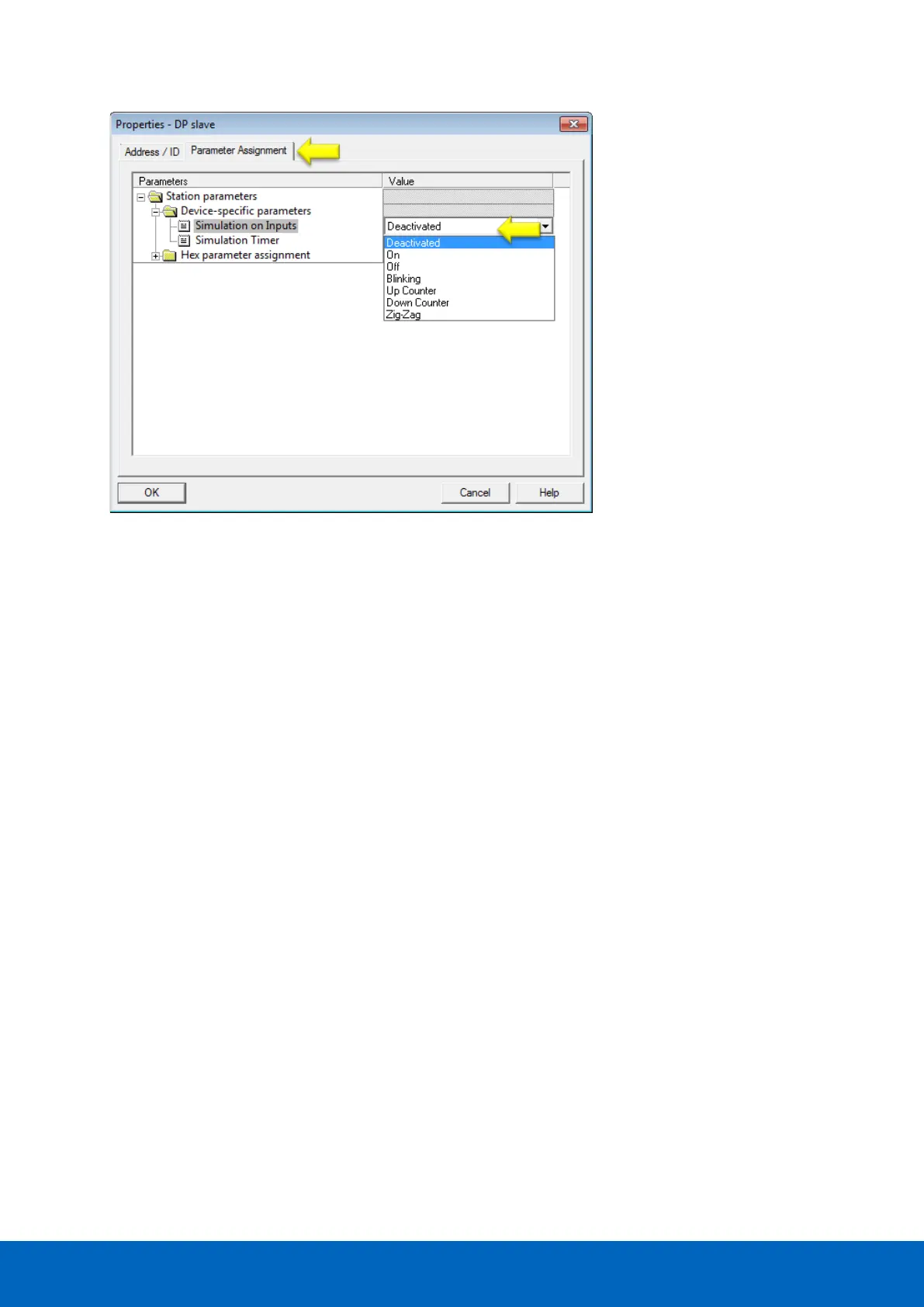

Fig. 69 - Input simulation window

After selecting a simulation pattern, you can enter a decimal value of 0 to 255 in the Simulation Timer box. This

value indicates the waiting time in seconds before the input changes to the next value.
