ComBricks User Manual v6.4.0 | January 18| © PROCENTEC 172/219

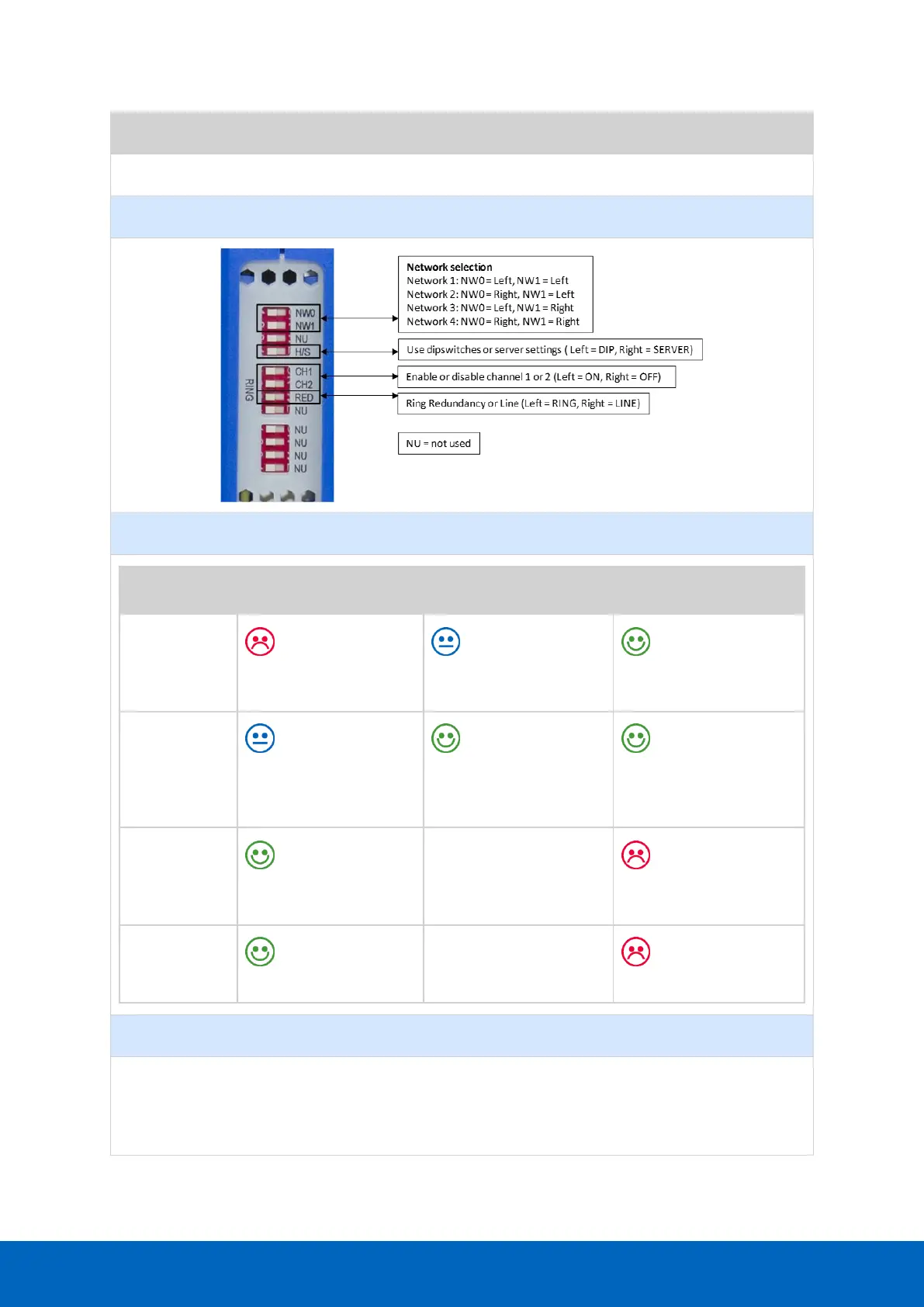

Technical Data - Fiber Optic Ring MM1 (101-201530)
Dipswitches
LEDs
OFF
Blinking
ON
RDY
Module has NOT
been powered / initialized
yet.
Head Station is
initializing or updating the
module.
Module has been
initialized and is
operational
RX1 / RX2
NO signal, or NO
valid telegrams detected
on this channel, or
channel is off.
1 or more devices are
communicating on this
channel.
A fiber optic cable is
connected and link is
established correctly
LV1 / LV2
Signal quality is
good, or channel is off.
Not possible
Low signal, received
messages can still be
decoded
ER1 / ER2
No errors, or channel
is off.
Not possible
No baudrate detected
or no connection/signal
Others
Head Station firmware
Operating temperature
Weight
MTBF
1.288 and higher
0 .. 60 °C
121 g
To be defined
