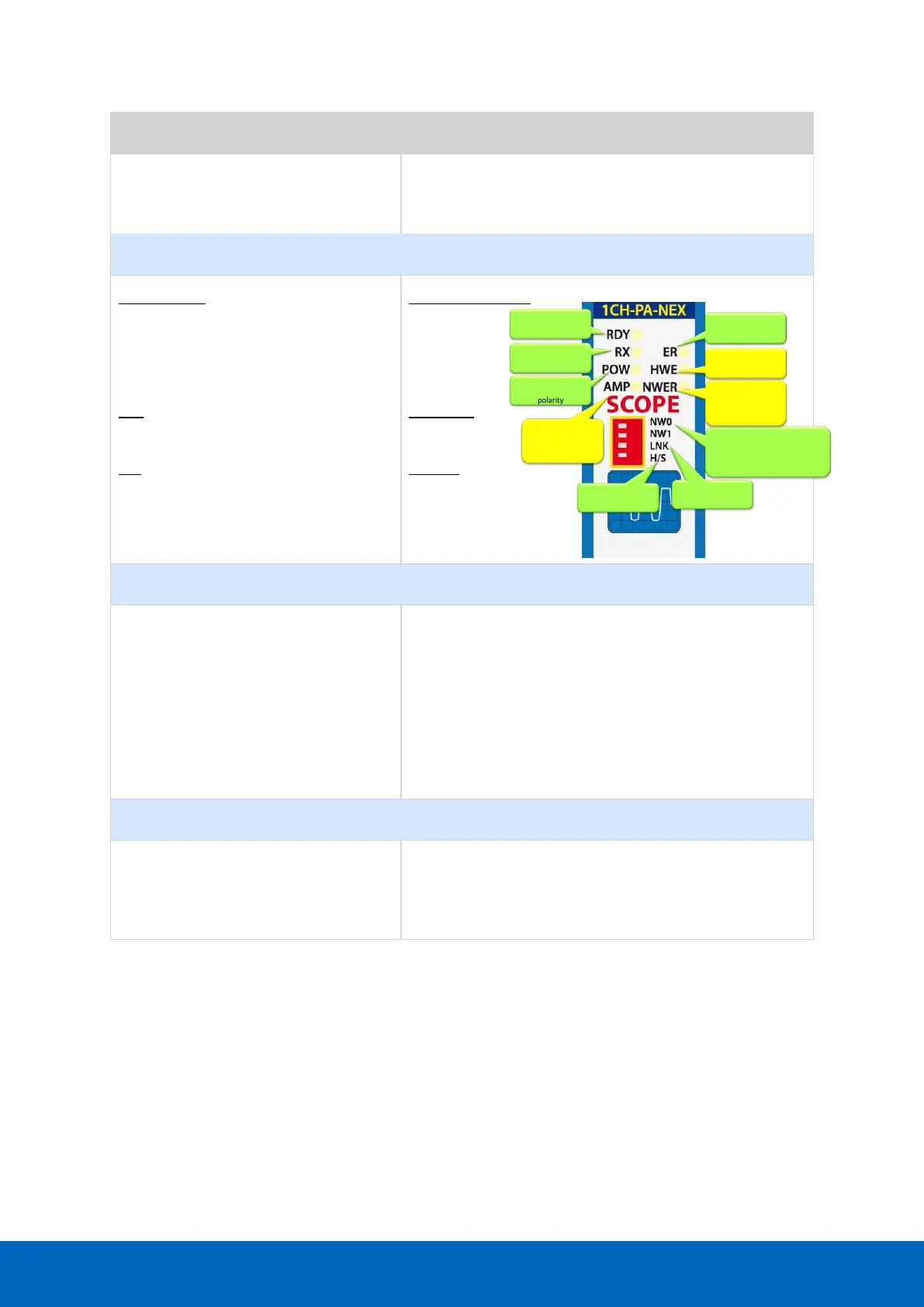

ComBricks User Manual v6.4.0 | January 18| © PROCENTEC 180/219
Technical Data - PA Module (101-201610)
AC PA voltage
DC PA voltage
DC PA current:
4 MS/s, resolution 7.5 mV, range -0.95..0.95 V
1 kS/s, resolution 75 mV, range -38..+38 V
1 kS/s, resolution 1 mA, range 0..1024 mA
Dipswitches
NW0 NW1
LEFT LEFT
RIGHT LEFT
LEFT RIGHT
RIGHT RIGHT
LNK
LEFT / RIGHT
H/S
LEFT / RIGHT
PROFIBUS Network
1
2
3
4
Link mode
OFF / ON
Settings
Hardware / Software
LEDs
RDY
RX
HWE
ER
AMP
POW
NWER
Module is ready for operation (ON)
Receiving PA telegrams (blinking)
Internal repeater error (contact PROCENTEC)
No or bad telegrams on PA detected
PA signal too low or too high
Over current, noise, unbalance, DC-polarity
Jitter, asymmetry, field device polarity
Alarm values can be changed through the web server.
Others
Head Station firmware
Operating temperature
Weight
MTBF
At least version 1.279
0 .. 60 °C
133 g
To be defined
Dipswitches or web
server settings
Coupler or Link
mode
Communication
errors or bad
telegrams
Over current, noise,
unbalance, DC-
polarity
Data received on PA
Repeater Module
status
Network 1: NW0 = L, NW1 = L
Network 2: NW0 = R, NW1 = L
Network 3: NW0 = L, NW1 = R
Network 4: NW0 = R, NW1 = R
Repeater internal
failure
PA signal too low or
too high
Jitter, asymmetry,
field device polarity
