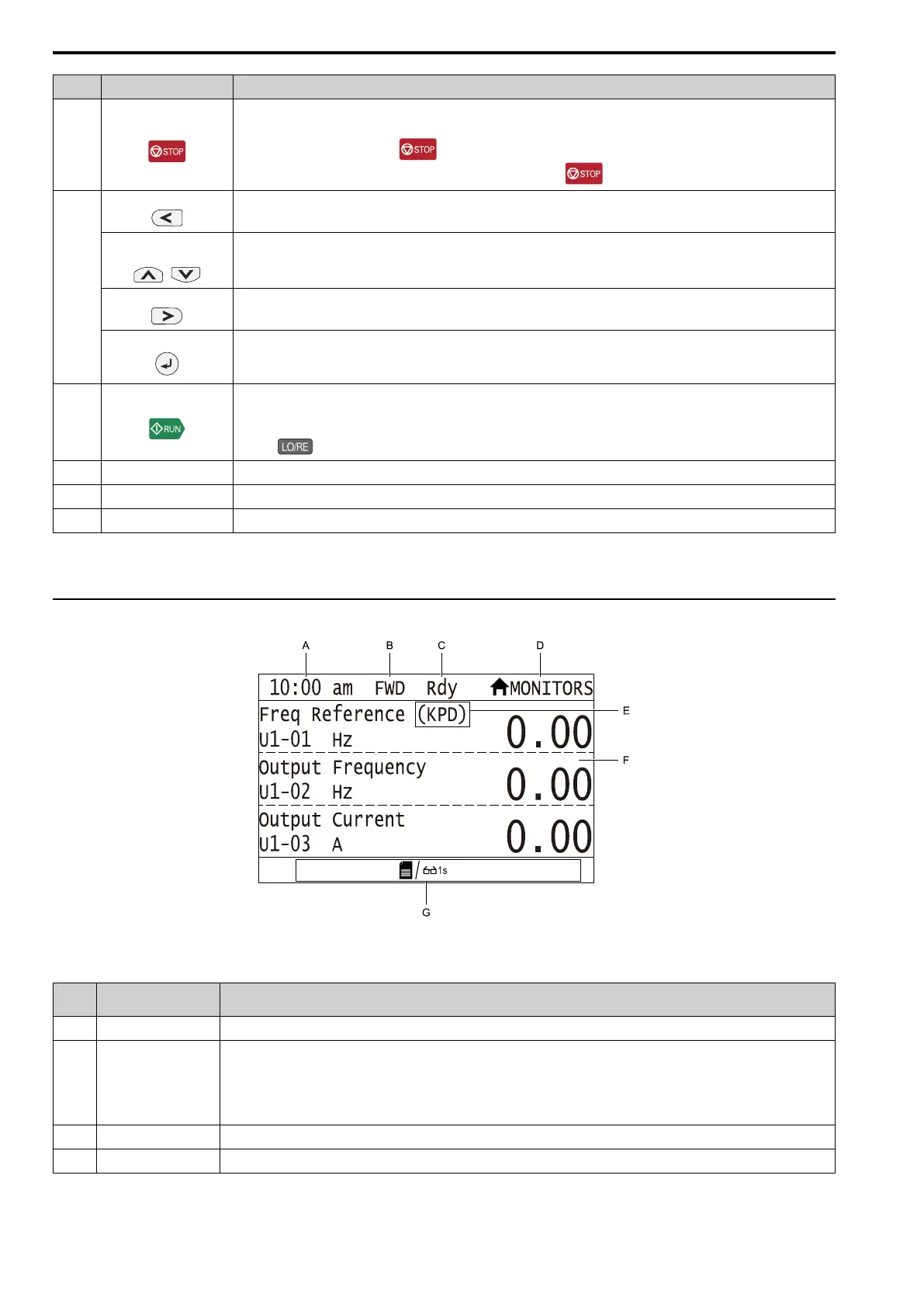

4.2 User Interface Elements
124 SIEPYEUOQ2A01G AC Drive Q2A Technical Manual
Symbol Name Function
G
STOP Key
Stops drive operation.
Note:
Uses a stop-priority circuit. Push to stop the motor even when a Run command is active at MFDI terminals. Set o2-02 = 0
[STOP Key Selection of Function = Disabled] to disable the priority in .
H
Left Arrow Key • Moves the cursor to the left.
Up Arrow Key/Down
Arrow Key
/
• Scrolls up or down to display the next item or the previous item.
• Selects parameter numbers, and increments or decrements setting values.
Right Arrow Key (RESET) • Moves the cursor to the right.
• Restarts the drive to clear a fault.
ENTER Key
• Enters parameter values and settings.
• Selects menu items to move the user between keypad displays.
• Selects each mode, parameter, and set value.
I
RUN Key
Starts the drive in LOCAL Mode.
Starts the operation in Auto-Tuning Mode.
Note:
Push on the keypad to set the drive to LOCAL Mode before operating the motor with the keypad.
J
USB Terminal
Insertion point for a USB cable (USB 2.0, type: A - mini-B). Use the USB cable to connect the drive to a PC.
K RJ-45 Connector
Connects to the drive using an RJ-45 8-pin straight through UTP CAT5e cable or keypad connector.
L Clock Battery Cover
Remove this cover to install or replace the clock battery.
WARNING! Sudden Movement Hazard. The drive may start unexpectedly if switching control sources when setting b1-07 = 2
[LO/RE Run Selection = Accept RUN]. Clear all personnel from rotating machinery and electrical connections prior to switching
control sources. Failure to comply may cause death or serious injury.
◆ Operator Display
Figure 4.2 Operator Display Indications
Table 4.2 Operator Display Indications and Meanings
Sym
bol
Name Description
A Time display area
Shows the current time. Set the time on the default settings screen.
B
Forward run/Reverse run
indication
Shows direction of motor rotation.
• FWD: Shown when set to Forward run.
• REV: Shown when set to Reverse run.
Note:
In Q2pack operation, FWD or REV flash.
C
Ready
The screen will show Rdy when the drive is ready for operation or when the drive is running.
D Mode display area
Shows the name of the current mode or screen.
