Q2 Q2A User Manual

3.3 Main Circuit Wiring
76 SIEPYEUOQ2A01G AC Drive Q2A Technical Manual

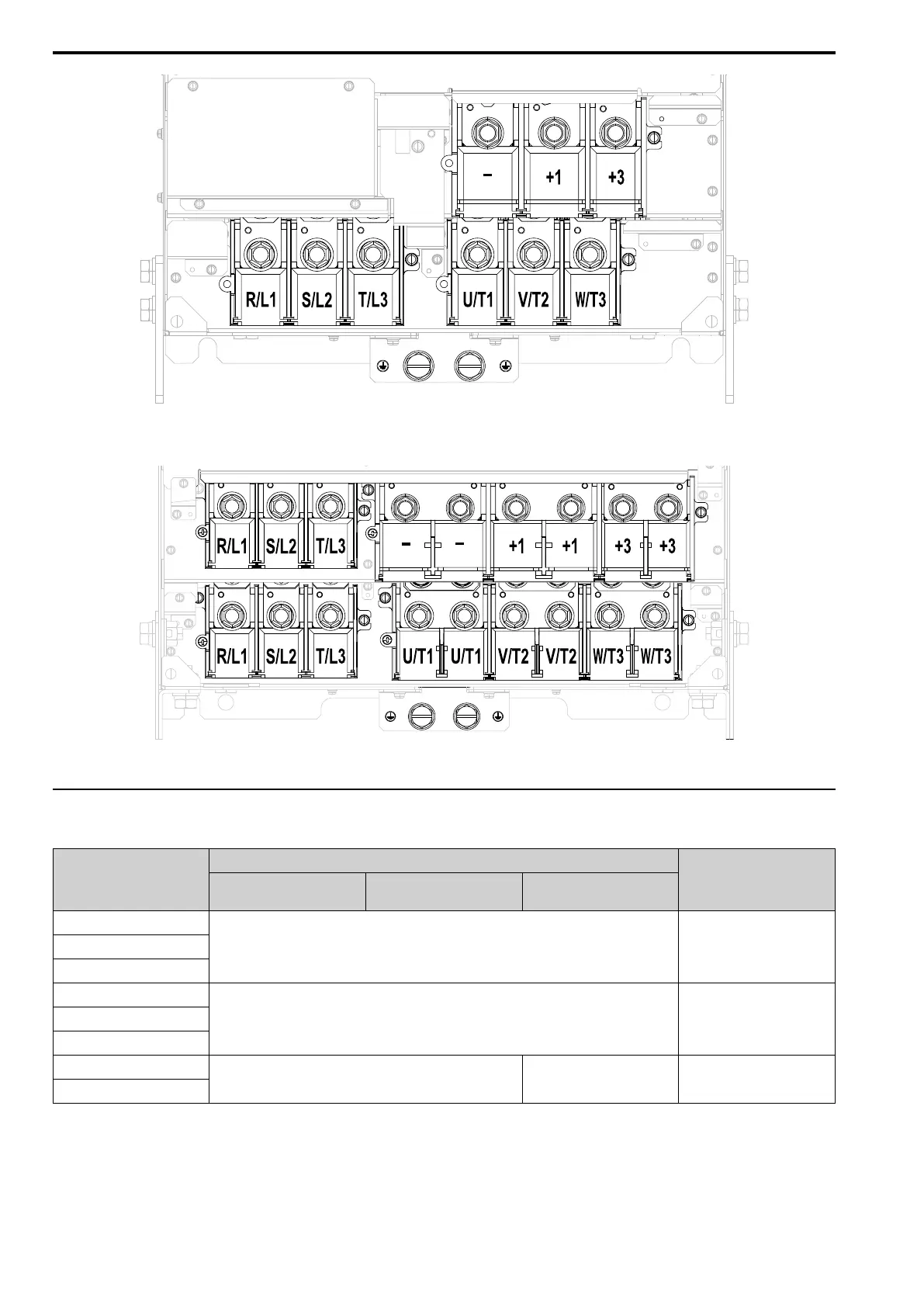

Figure 3.12 Configuration of Main Circuit Terminal Block for Drive Models 2360, 2415, 4371, 4389
Figure 3.13 Configuration of Main Circuit Terminal Block for Drive Models 4453 - 4675
◆ Main Circuit Terminal Functions
Table 3.1 Main Circuit Terminal Functions
Terminals
Model
Function
2004 - 2082
4002 - 4044
2110 - 2138
4060 - 4168
2169 - 2415
4208 - 4675
R/L1
Main circuit power supply input
To connect a commercial power
supply.
S/L2
T/L3
U/T1
Drive output To connect a motor.V/T2
W/T3
B1
Braking resistor connection -
To connect a braking resistor or
braking resistor unit.
B2
R/L1 T/L3
R/L1 T/L3
R/L1
T/L3
