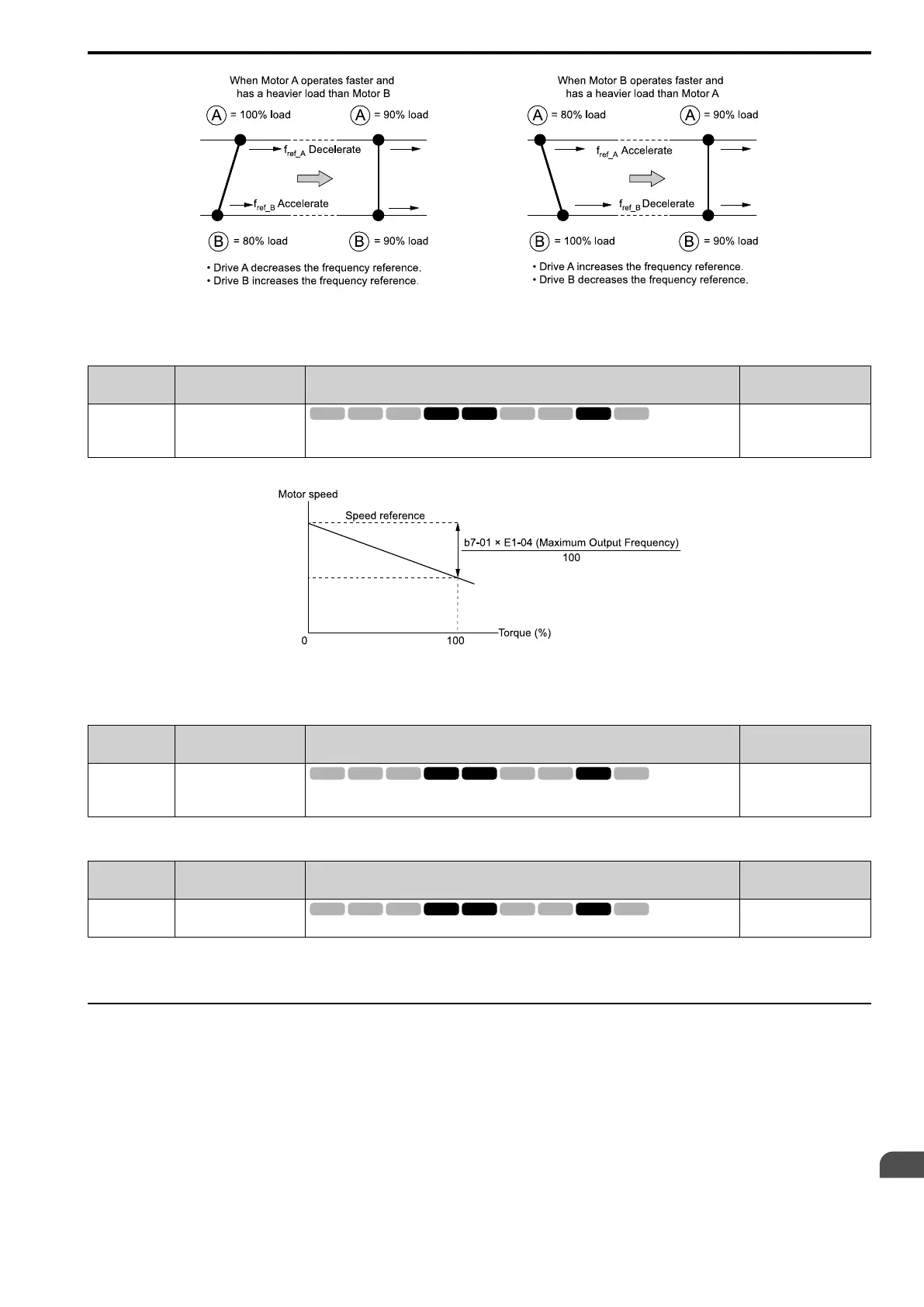

Figure 12.35 Droop Control Application
■ b7-01 Droop Ctrl Gain
No.
(Hex.)
Name Description
Default
(Range)
b7-01
(01CA)
RUN
Droop Ctrl Gain
Sets the amount of deceleration when the torque reference is at 100% of Maximum Output
Frequency.
0.0%
(0.0 - 100.0%)
To disable Droop control, set this parameter to 0.0%.
Figure 12.36 Droop Control Gain
■ b7-02 Droop Ctrl Delay Time
No.
(Hex.)
Name Description
Default
(Range)
b7-02
(01CB)
RUN
Droop Ctrl Delay Time
Sets the responsiveness of Droop control. Decrease this setting when drive response is slow.
Increase this setting when hunting or oscillation occur.
0.05 s
(0.03 - 2.00 s)
■ b7-03 Droop Ctrl Limit Selection
No.
(Hex.)
Name Description
Default
(Range)
b7-03
(017E)
Droop Ctrl Limit Selection
Sets the Droop control limit function.
1
(0, 1)
0 : Disabled
1 : Enabled
◆ b8: ENERGY SAVING
Energy-saving control improves overall system operating efficiency by operating the motor at its most efficient
level.
Set b8-01 and the following parameters according to the control mode and the motor.
• Set parameters b8-04, b8-05, and b8-06 when using V/f Control or Closed Loop V/f Control.
• Set parameters b8-02, b8-03 when using vector control with an induction motor.
• Set parameters b8-16, b8-17 when using a PM motor.
