Startup Procedure and Test Run
4

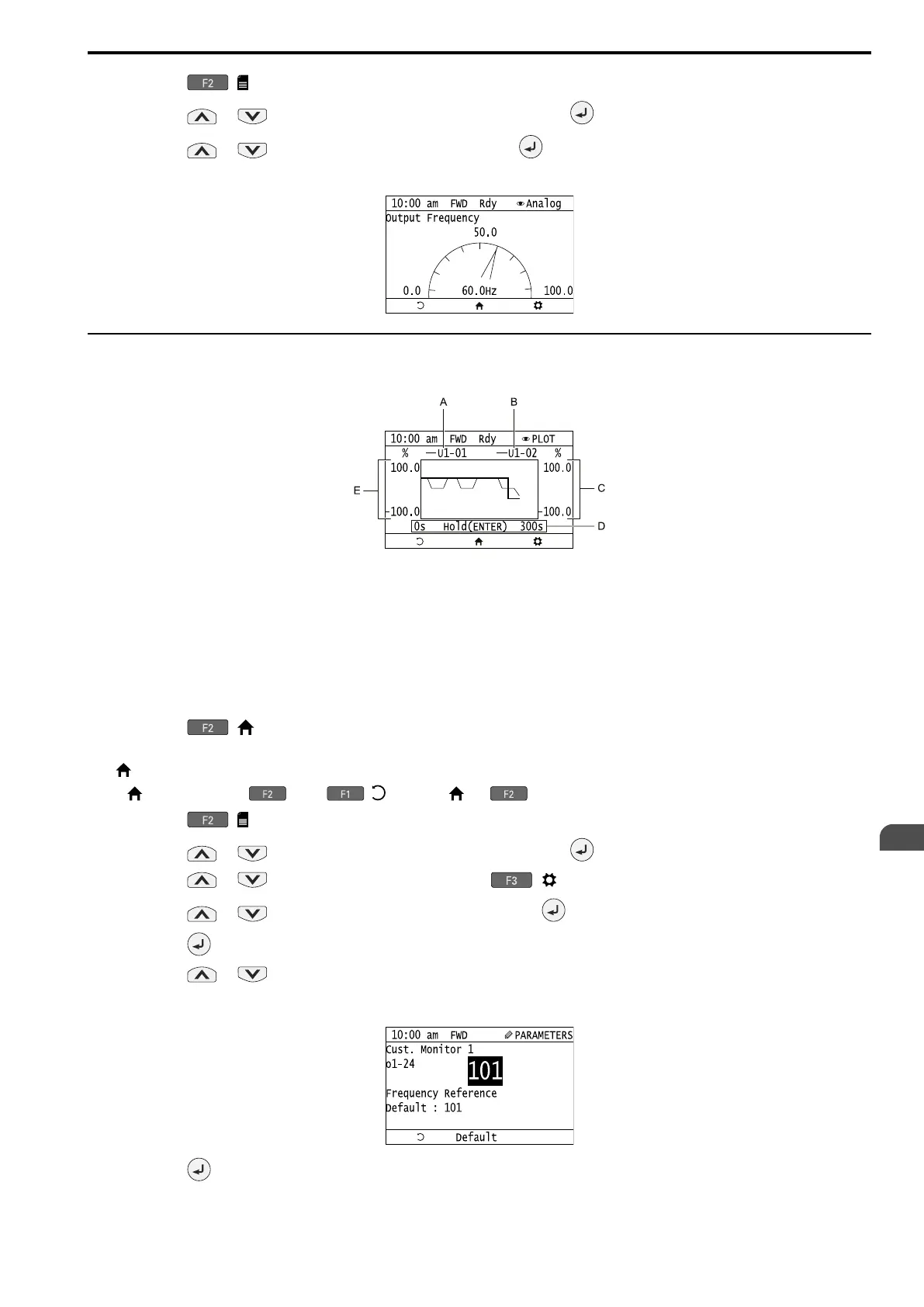

4.5 Keypad Operation
SIEPYEUOQ2A01G AC Drive Q2A Technical Manual 135
2. Push ( ).
3. Push or to select [Monitor & Diagnostics], then push .
4. Push or to select [Analog Gauge], then push .
It will be displayed as follows.
◆ Set Monitoring Items to be Shown as a Trend Plot
You must set the items in this figure to display as a trend plot.
A - Monitor Parameter 1 (set with [Custom Monitor
1])
B - Monitor Parameter 2 (set with [Custom Monitor
2])
C - Trend Plot 2 Scale Max/Min Scale Value
D - Trend Plot Time Scale
E - Trend Plot 1 Scale Max/Min Scale Value
■ Select Monitor Items to Show as a Trend Plot
The procedure in this section shows how to show the frequency reference monitor as a trend plot.
1. Push ( ) to show the HOME screen.
Note:
• [ ] appears in the upper right hand corner of the screen when in HOME mode.
• If [ ] is not shown on , push ( ) to show [ ] on .
2. Push ( ).
3. Push or to select [Monitor & Diagnostics], then push .
4. Push or to select [Trend Plot], then push ( ).
5. Push or to select [Custom Monitor 1], then push .
6. Push .
7. Push or to select the monitor number to register.
When the U parameters are on the display as "Ux-xx", the three digits in "x-xx" identify which monitor to
output. For example, to show monitor U1-01 [Frequency Reference], set it to "101" as shown in this figure.
Push .
