4.5 Keypad Operation
132 SIEPYEUOQ2A01G AC Drive Q2A Technical Manual
Push ( ) to go back to the HOME screen.

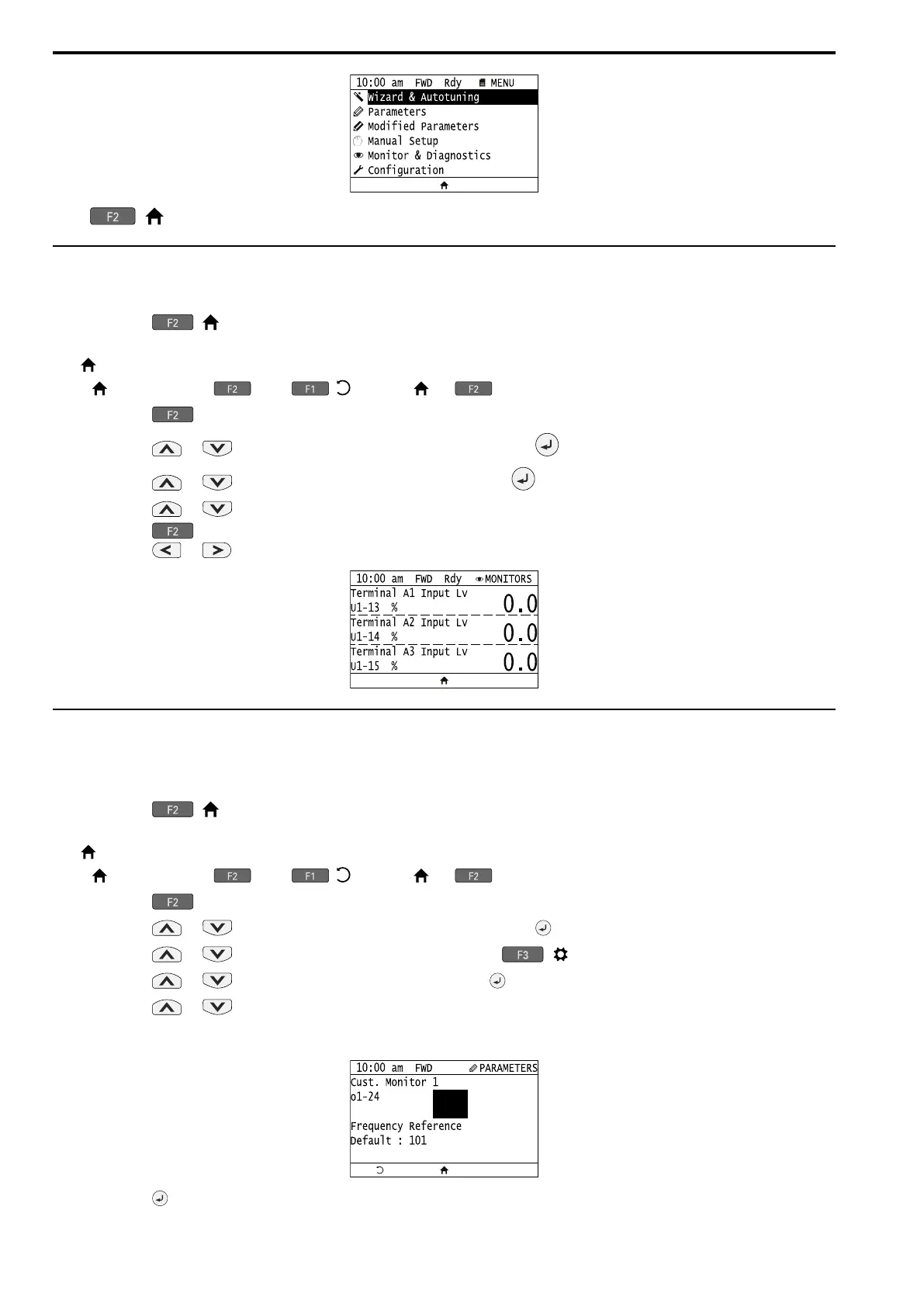

◆ Show the Standard Monitor
This section shows how to show the standard monitor (Ux-xx [U: MONITORS]).
1. Push ( ) to show the HOME screen.
Note:
• [ ] appears in the upper right hand corner of the screen when in HOME mode.
• If [ ] is not shown on , push ( ) to show [ ] on .
2. Push (Menu).
3. Push or to select [Monitor & Diagnostics], then push .
4. Push or to select [Standard Monitors], then push .
5. Push or to change the monitor items displayed.
Push for 2 s to toggle between 3-line view and 6-line view.
Push or to select another group of monitors to display.
◆ Set Custom Monitors
You can select and register a maximum of 12 monitoring items to regularly show on the keypad.
This procedure shows how to set the motor speed to [Custom Monitor 1].
1. Push ( ) to show the HOME screen.
Note:
• [ ] appears in the upper right hand corner of the screen when in HOME mode.
• If [ ] is not shown on , push ( ) to show [ ] on .
2. Push (Menu).
3. Push or to select [Monitor & Diagnostics], then push .
4. Push or to select [Custom Monitors], then push ( ).
5. Push or to select [Cust. Monitor 1], then push .
6. Push or to select the monitor number to register.
Enter the three digits in “x-xx” part of monitor Ux-xx to identify which monitor to output. For example, to
show monitor U1-05, set it to “105” as shown in this figure.
Push .
