4.5 Keypad Operation
142 SIEPYEUOQ2A01G AC Drive Q2A Technical Manual

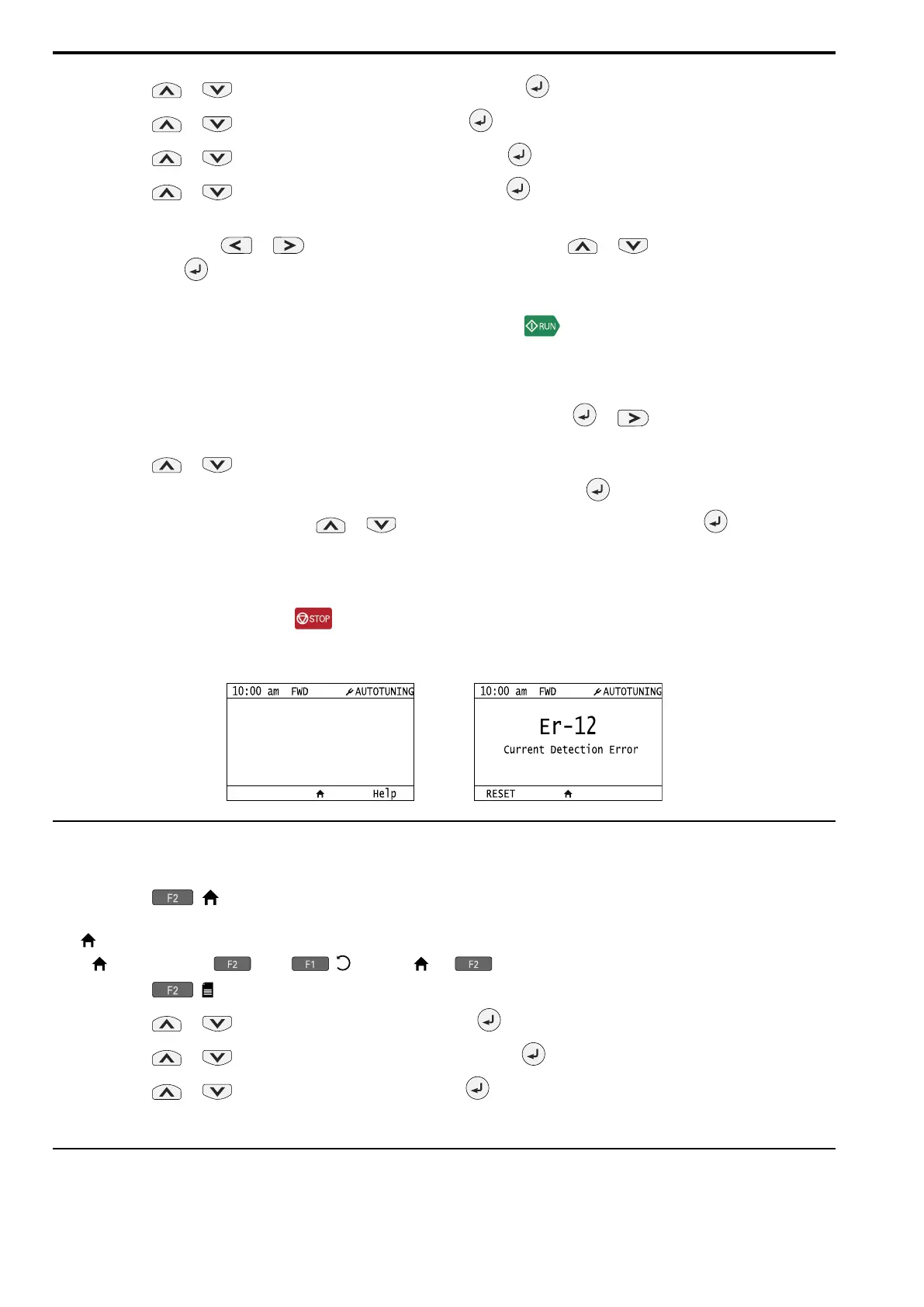

3. Push or to select [Wizard & Autotuning], then push .
4. Push or to select [Auto-Tuning], then push .
5. Push or to select [Mtr Param Tuning], then push .
6. Push or to select [Rotary Auto-Tune], then push .
7. Follow the messages shown on the keypad to input the necessary Auto-Tuning data.
Example: Push or to select the specified digit, then push or to change the number,
then push to save the changes and continue to the next entry field.
8. Follow the messages shown on the keypad to do the next steps.
9. When the keypad shows the Auto-Tuning start screen, push .
Auto-Tuning starts.
When doing Rotational Auto-Tuning, the motor will stay stopped for approximately one minute with power
energized and then the motor will start to rotate.
10. When the keypad shows “End” after Auto-Tuning is complete, push or .
The keypad will show a list of the changed parameters as the result of Auto-Tuning.
11. Push or in the parameter change confirmation screen to check the changed parameters, then
select [Auto-Tuning Successful] at the bottom of the screen and push .
To change a parameter, push or to select the parameter to change then push to show the
Parameter setting screen.
Auto-Tuning is complete.
Note:
If the drive detects an error or you push before Auto-Tuning is complete, Auto-Tuning will stop and the keypad will show an
error code. Endx identifies that Auto-Tuning was successful with calculation errors. Find and repair the cause of the error and do Auto-
Tuning again, or set the motor parameters manually. You can use the drive in the application if you cannot find the cause of the Endx
error. Er-xx identifies that Auto-Tuning was not successful. Find and repair the cause of the error and do Auto-Tuning again.
◆ Set the Keypad Language Display
This procedure shows how to set the language shown on the keypad.
1. Push ( ) to show the HOME screen.
Note:
• [ ] appears in the upper right hand corner of the screen when in HOME mode.
• If [ ] is not shown on , push ( ) to show [ ] on .
2. Push ( ).
3. Push or to select [Configuration], then push .
4. Push or to select [Language Selection], then push .
5. Push or to select the language, then push .
The procedure to set the keypad language is complete.
◆ Set the Date and Time
This procedure shows how to set the date and time.
