8.5 Replace the Drive
352 SIEPYEUOQ2A01G AC Drive Q2A Technical Manual

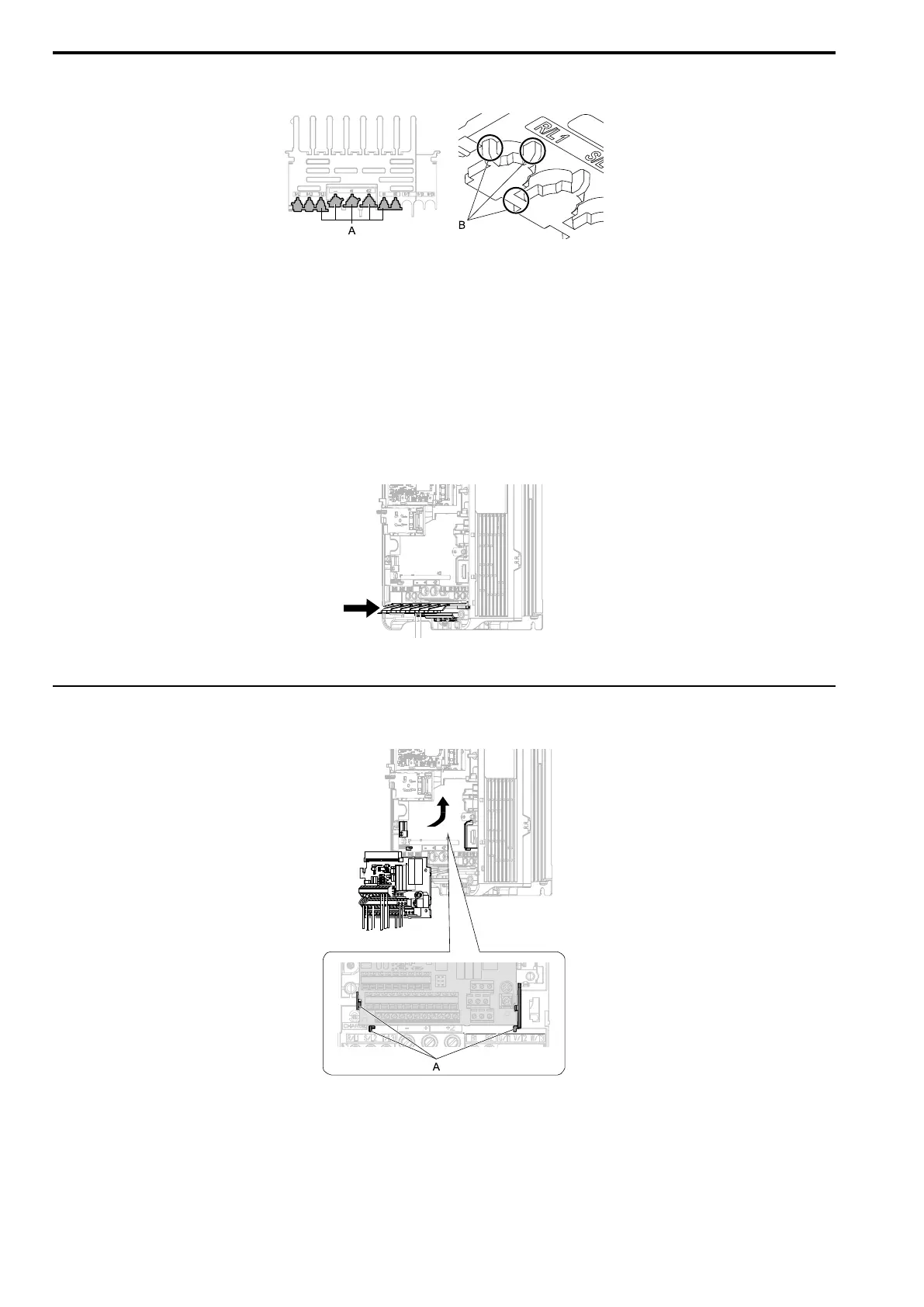

5. Check the terminal sign that you wired and use a nipper to clip the specified cutaway section of the wiring
cover.
A - Cutaway sections B - Clip here with nippers
Figure 8.71 Clip the Cutaway Section of the Wiring Cover
Note:
• Different drive models have different wiring cover shapes.
• Only clip the section of the wiring cover that applies to the wired terminal. If you clip areas that do not apply to wired
terminals, the protective enclosure will not keep its IP20 protective level.
• Be careful when clipping the cutaway section of the wiring cover, as the section may fly out in unpredictable directions.
• Make sure that the clipped section does not cause damage to the wires.
• If you use wires that are not specified by the manufacturer, the protective enclosure could lose its IP20 protective level,
although the wiring cover is correct. Contact the manufacturer or your nearest sales representative for more information.
6. Put the wiring cover in its initial position. Put the cables through the holes that you cut out of the wiring
cover.
Figure 8.72 Reattach the Wiring Cover
◆ Connect the Control Circuit Terminal Block
1.
To put a wired control circuit terminal block in the drive, align it with the guides and move it straight up.
A - Guides
Figure 8.73 Put the Terminal Block into the Connector
To Next Page
