Standards Compliance
5
5.2 European Standards
SIEPYEUOQ2A01G AC Drive Q2A Technical Manual 197

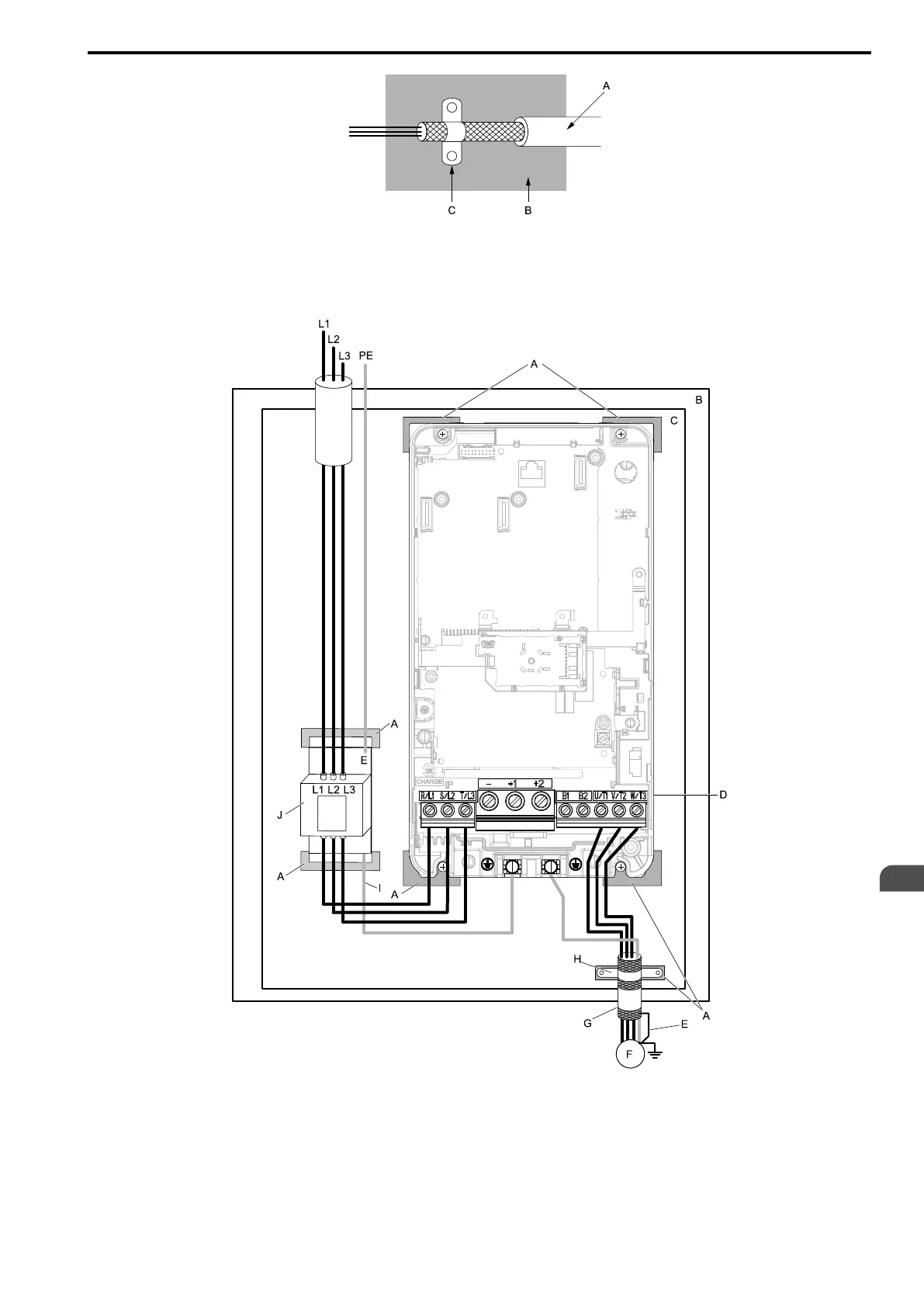

A - Braided shield cable
B - Metal plate
C - Cable clamp (conductive)
Figure 5.16 Ground the Shield
A - Grounding surface (Remove any paint or
sealant.)
B - Enclosure panel
C - Metal plate
D - Drive
E - Ground the shield.
F - Motor
G - Motor cable (Braided shield cable: max. 10 m
(32.8 ft.))
H - Cable clamp
I - Grounding wire
J - EMC noise filter
Figure 5.17 EMC Noise Filter and Drive Installation Procedure
To Next Page
