8.4 Replace a Cooling Fan and Circulation Fan
326 SIEPYEUOQ2A01G AC Drive Q2A Technical Manual

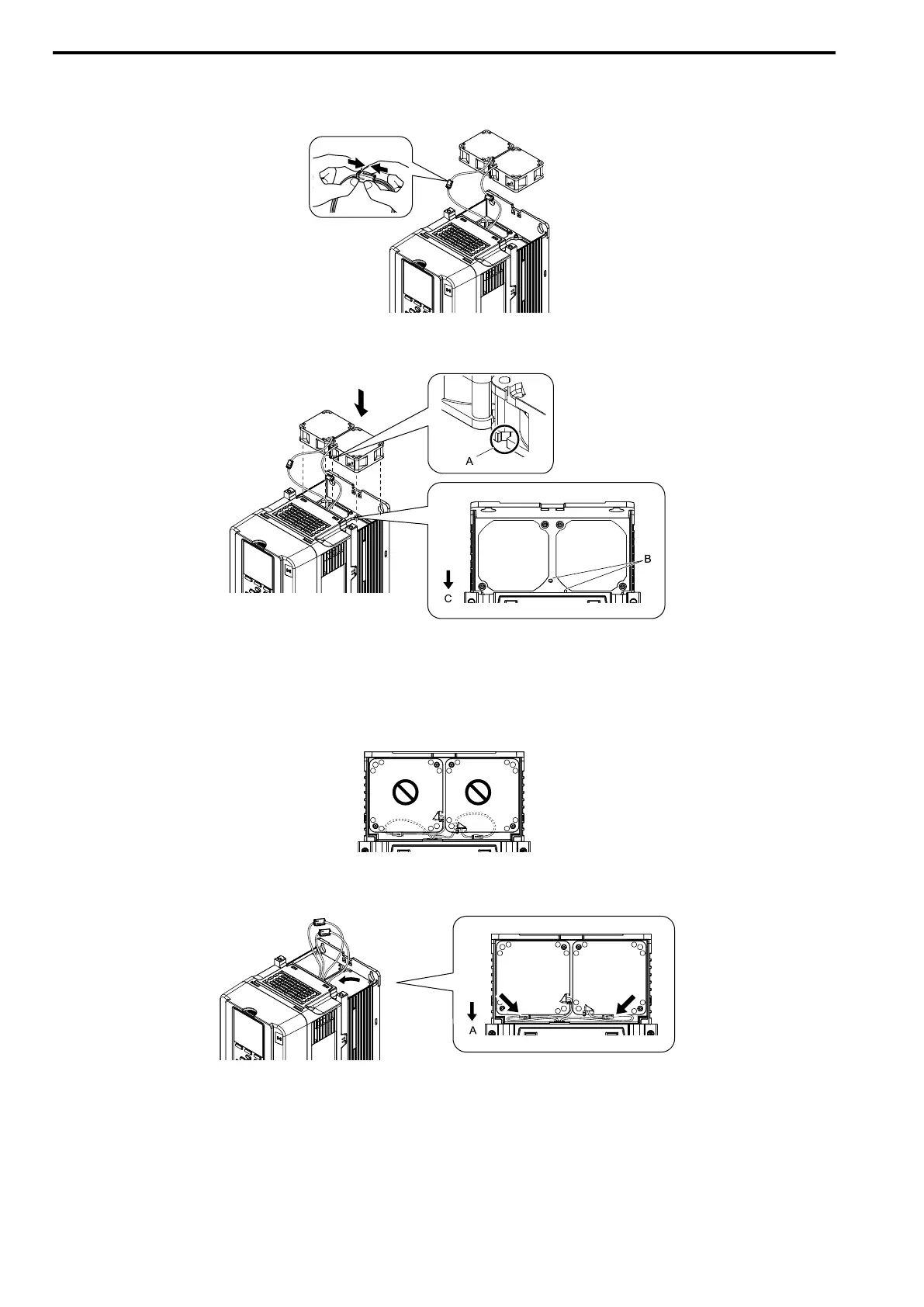

1. Connect the drive and the fan connector.
Figure 8.9 Connect the Power Supply Connector
2. Align the notches on the fan with the pins on the drive and install the cooling fan in the drive.
A - Notch on fan
B - Alignment pins on drive
C - Front of drive
Figure 8.10 Install the Cooling Fan
Note:
When you install the cooling fan, make sure that you do not pinch cables between the cooling fan and the drive.
3. Put the cable in the recess of the drive.
A - Front of drive
Figure 8.11 Put the Cable in the Drive Recess
To Next Page
