Periodic
Inspection
and
Maintenance
8
8.4
Replace
a
Cooling
Fan
and
Circulation
Fan
SIEPYEUOQ2A01G
AC
Drive
Q2A
T
echnical
Manual
341
A
-
Screws
A
B
-
Screws
B
C
-
Slide
panel

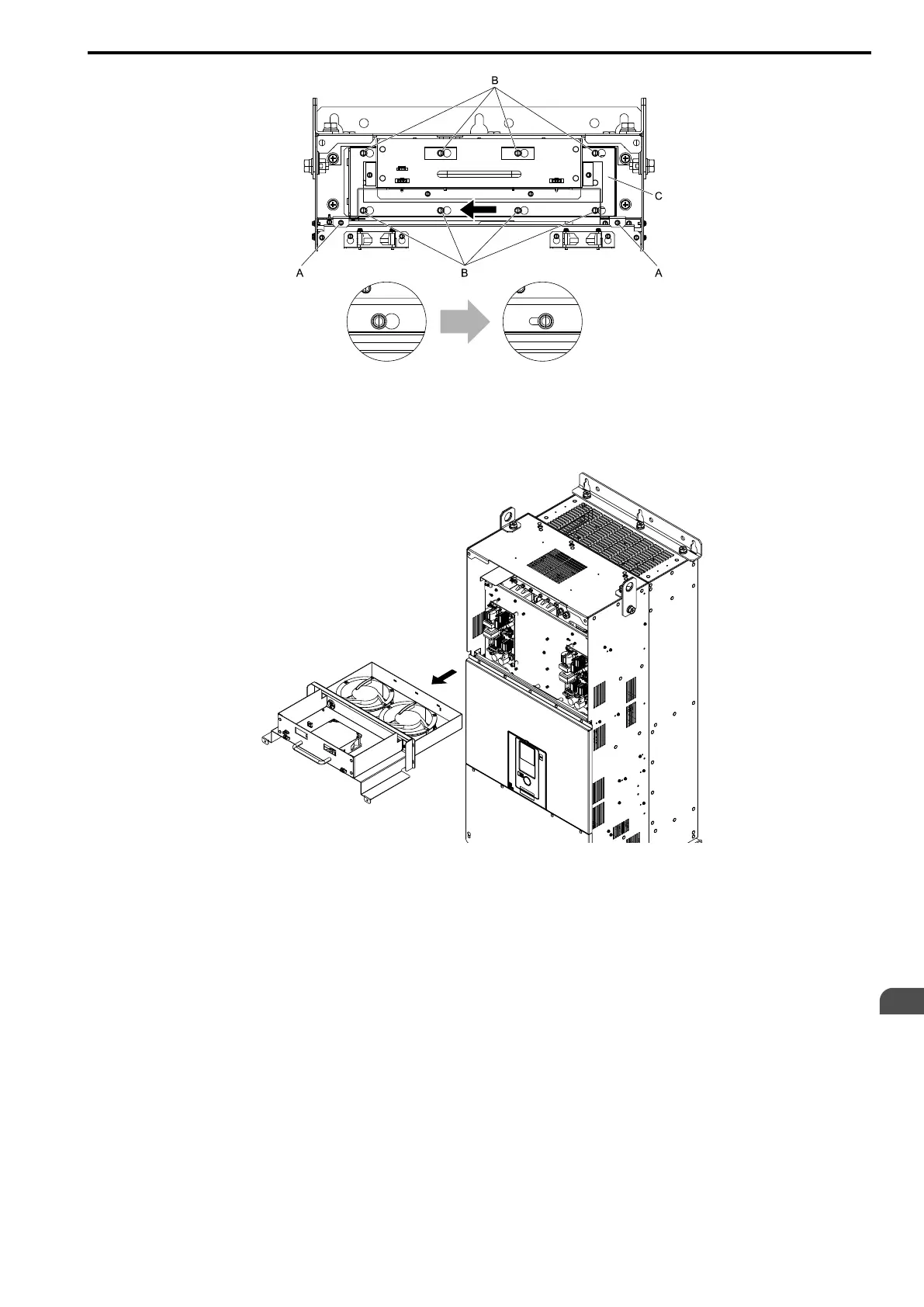

Figure
8.49
Slide
the
Slide
Panel
4.
Remove
the
fan
unit
and
the
slide
panel
at
the
same
time.
Figure
8.50
Remove
the
Fan
Unit
340
342
