Periodic Inspection and Maintenance
8

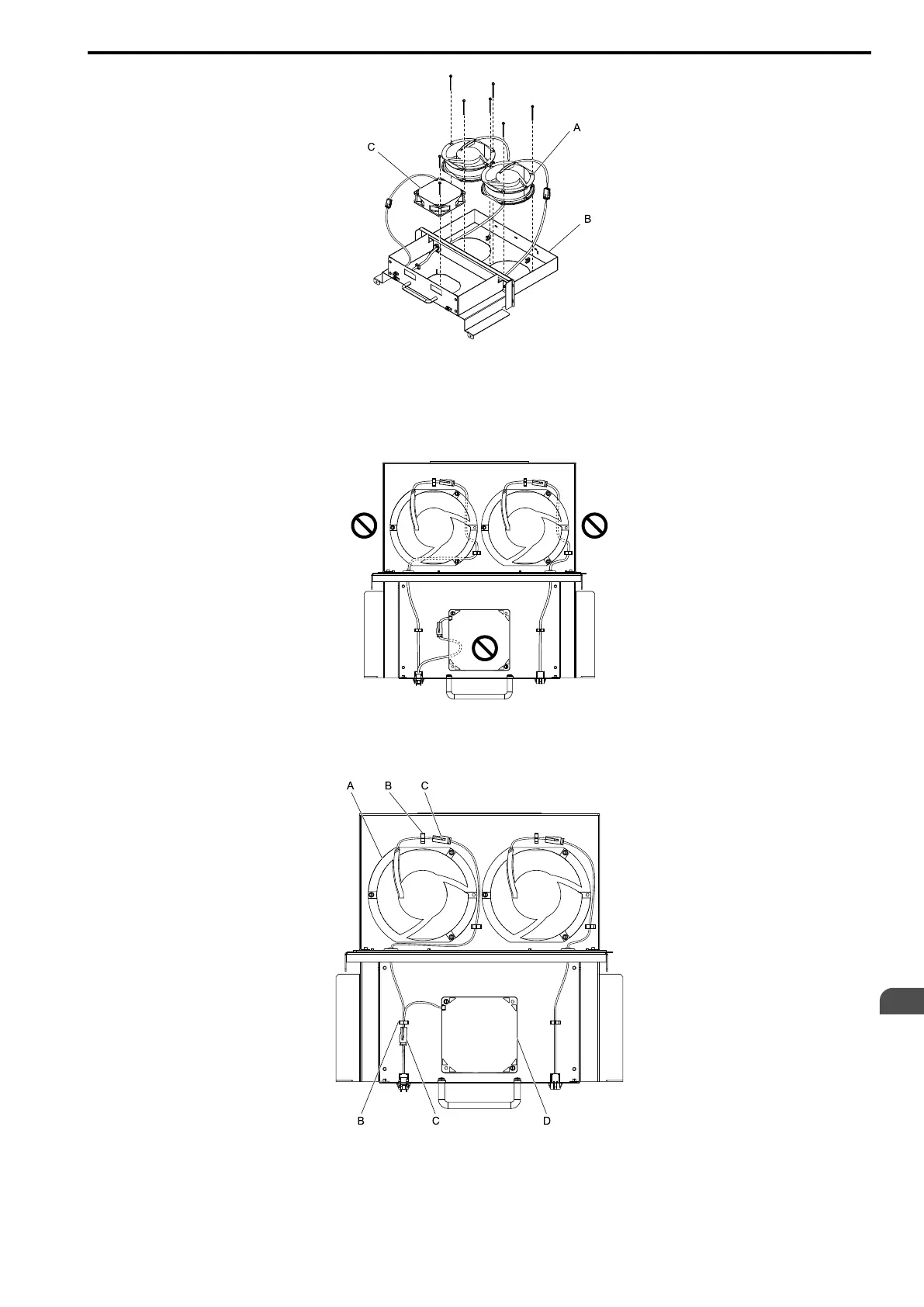

8.4 Replace a Cooling Fan and Circulation Fan
SIEPYEUOQ2A01G AC Drive Q2A Technical Manual 343
A - Cooling Fan
B - Fan unit base
C - Circulation Fans
Figure 8.53 Install the Cooling Fan
Note:
When you install the cooling fan, make sure that you do not pinch cables between the cooling fan and the fan unit base.
3. Put the cables in their initial locations.
Note:
Safety the relay cable to the hook.
A - Cooling Fan
B - Cable hook
C - Relay connector
D - Circulation Fans
To Next Page
