Periodic
Inspection
and
Maintenance
8
8.4
Replace
a
Cooling
Fan
and
Circulation
Fan
SIEPYEUOQ2A01G
AC
Drive
Q2A
T
echnical
Manual
347
3.
Connect
the
fan
cable
to
the
fan
connector
.
A
-
Fan
cable
B
-
Circuit
board
cooling
fan
unit
C
-
Fan
connector

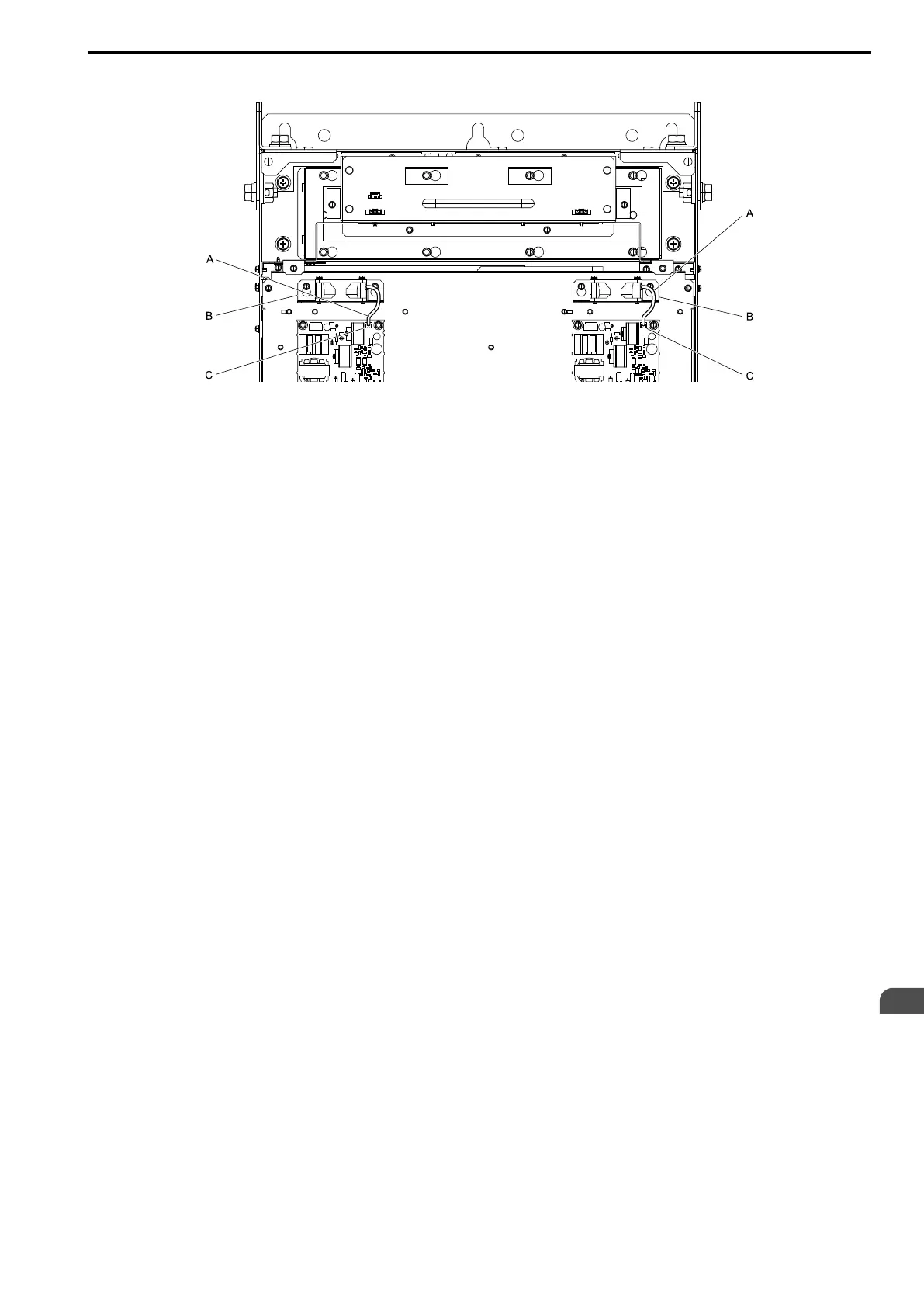

Figure
8.60
Connect
Cooling
Fan
Connectors
4.
Reattach
the
drive
cover
.
5.
Energize
the
drive
and
set
o4-03
=
0
[Fan.Oper
Setting
=
0
h]
to
reset
the
cooling
fan
operation
time.
346
348
