Q2 Q2A - Page 35

Mechanical Installation
2
2.3 Installation Position and Distance
SIEPYEUOQ2A01G AC Drive Q2A Technical Manual 35
Note:
• Align the tops of drives that have different dimensions to help when replacing cooling fans.
• Remove the top protective covers of all drives when mounting UL Type 1 enclosure drives side-by-side.

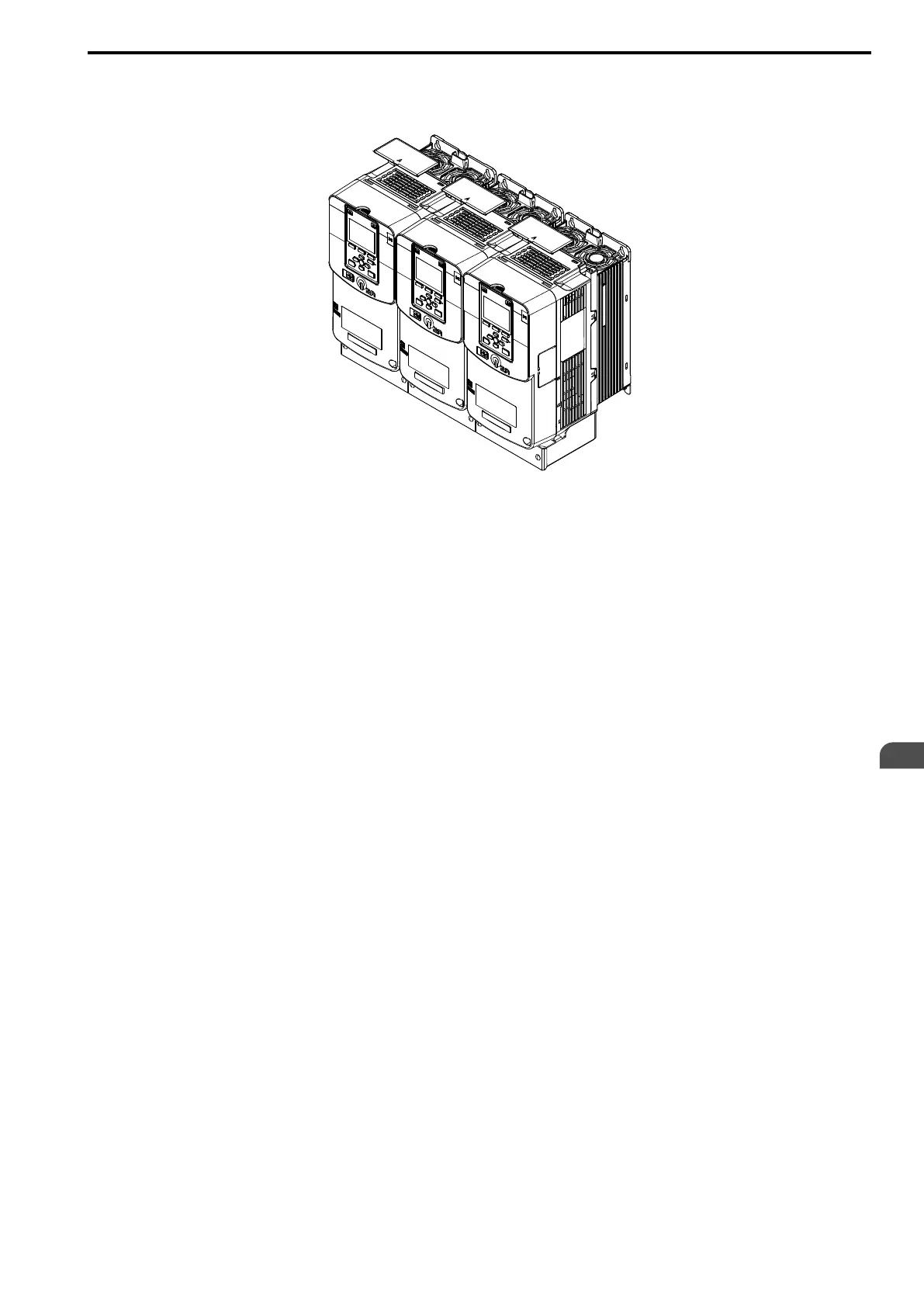

Figure 2.4 Enclosed Wall-Mounted Type (UL Type 1) Installed Side-by-Side
