Q2 Q2A User Manual

10.8 Drive Exterior and Mounting Dimensions
396 SIEPYEUOQ2A01G AC Drive Q2A Technical Manual
■ 4031, 4038

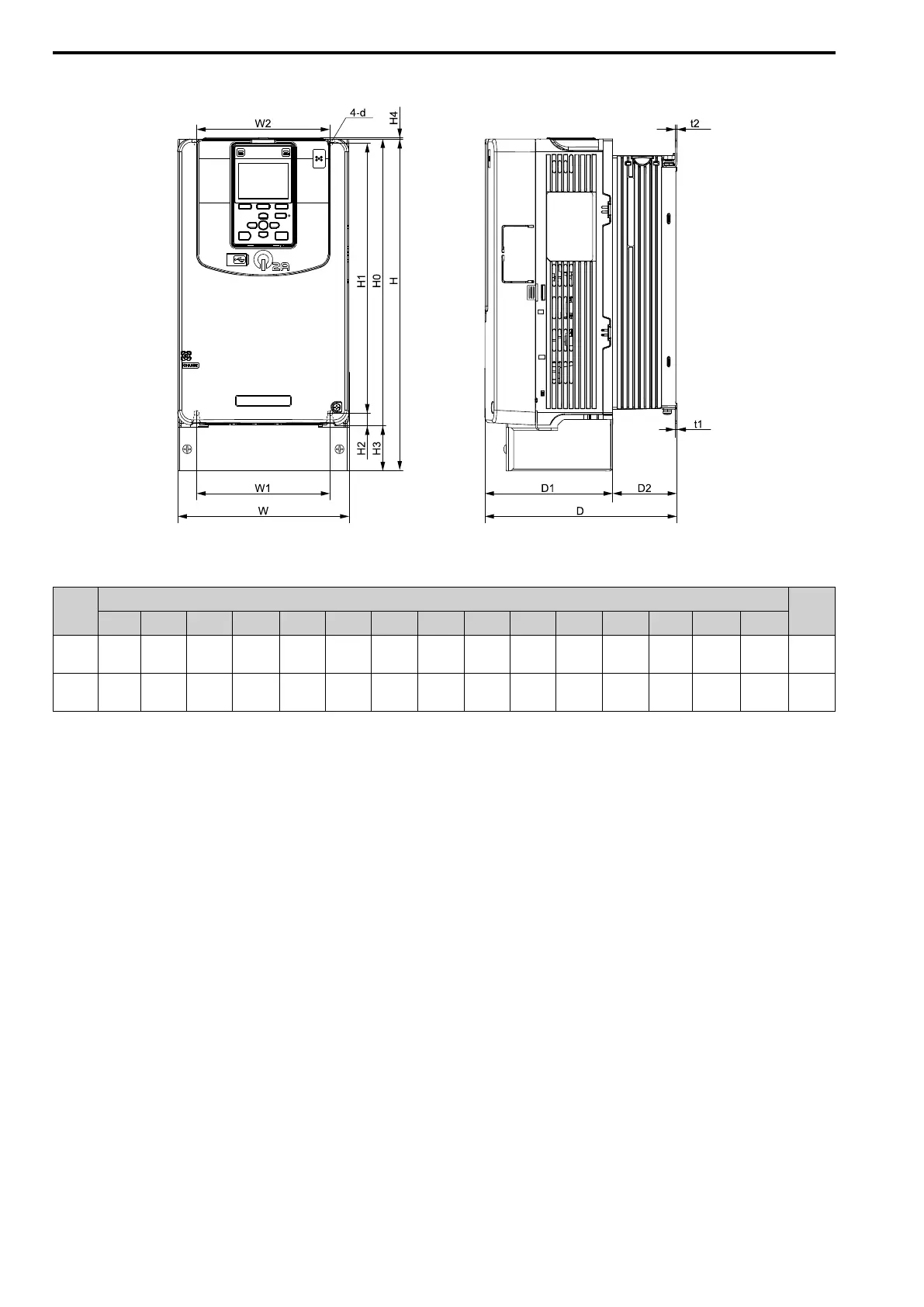

Figure 10.11 Exterior and Mounting Dimensions Diagram 2
Table 10.43 400 V Class (UL Type 1)
Model
Dimensions mm (in.)
Weight
kg (lb.)
W H D D1 D2 W1 W2 H0 H1 H2 H3 H4 t1 t2 d
4031
180
(7.09)
340
(13.39)
202
(7.95)
134
(5.28)
68
(2.68)
140
(5.51)
140
(5.51)
300
(11.81)
284
(11.18)
8
(0.315)
40
(1.57)
1.5
(0.059)
1.6
(0.063)
1.6
(0.063)
M5
6.5
(14.33)
4038
180
(7.09)
340
(13.39)
202
(7.95)
134
(5.28)
68
(2.68)
140
(5.51)
140
(5.51)
300
(11.81)
284
(11.18)
8
(0.315)
40
(1.57)
1.5
(0.059)
1.6
(0.063)
1.6
(0.063)
M5
6.5
(14.33)
