10.8 Drive Exterior and Mounting Dimensions
SIEPYEUOQ2A01G AC Drive Q2A Technical Manual 401
■ 4208 to 4296

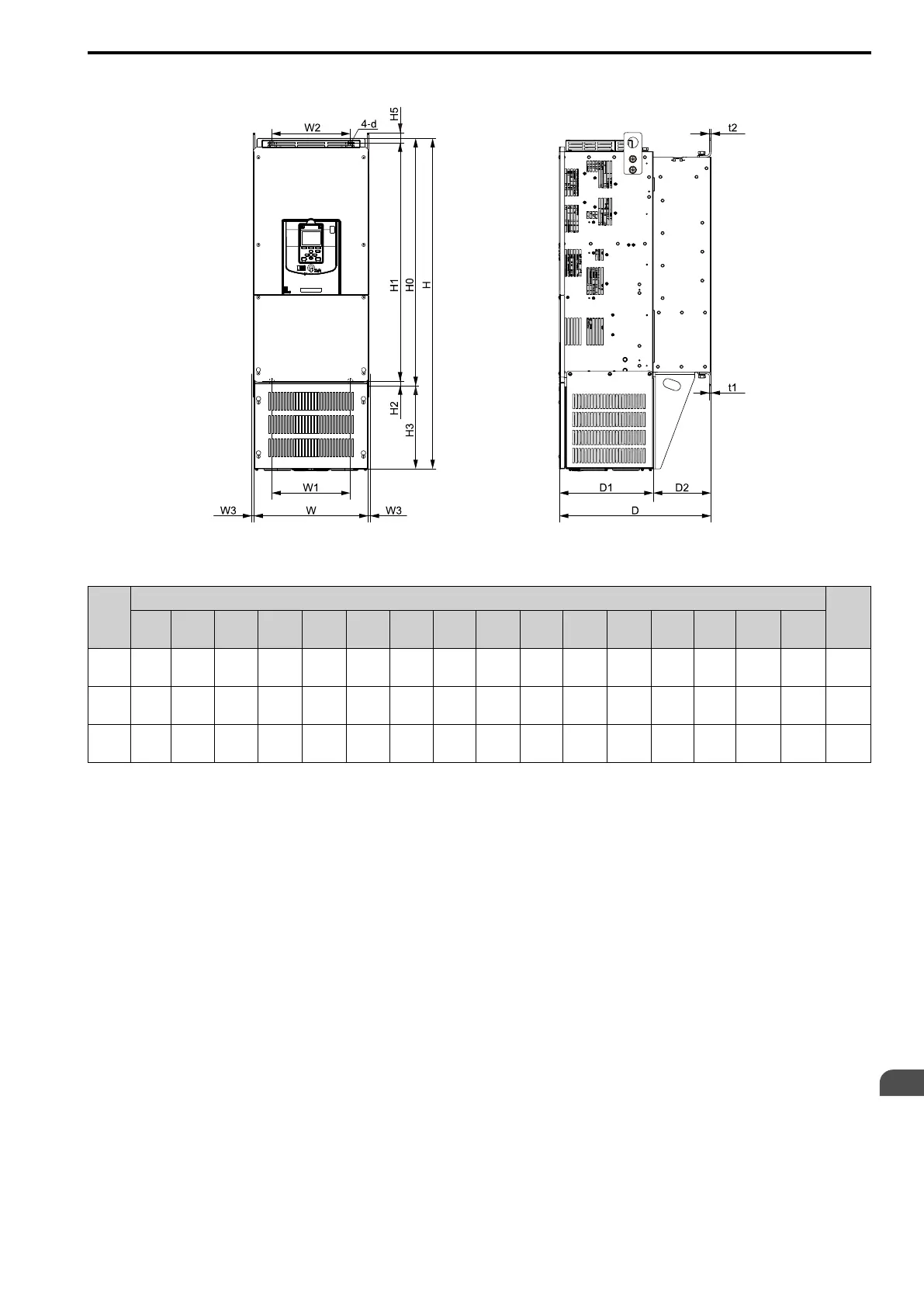

Figure 10.16 Exterior and Mounting Dimensions Diagram 7
Table 10.48 400 V Class (UL Type 1)
Model
Dimensions mm (in.)
Weight
kg (lb.)
W H D D1 D2 W1 W2
W3
(max.)
H0 H1 H2 H3 H5 t1 t2 d
4208
316
(12.44)
915
(36.02)
420
(16.54)
260
(10.24)
160
(6.30)
218
(8.58)
218
(8.58)
16
(0.630)
700
(27.56)
659
(25.94)
28
(1.102)
215
(8.46)
28.5
(1.122)
4.5
(0.177)
4.5
(0.177)
M10
66
(145.53)
4250
316
(12.44)
915
(36.02)
420
(16.54)
260
(10.24)
160
(6.30)
218
(8.58)
218
(8.58)
16
(0.630)
700
(27.56)
659
(25.94)
28
(1.102)
215
(8.46)
28.5
(1.122)
4.5
(0.177)
4.5
(0.177)
M10
68
(149.94)
4296
316
(12.44)
915
(36.02)
420
(16.54)
260
(10.24)
160
(6.30)
218
(8.58)
218
(8.58)
16
(0.630)
700
(27.56)
659
(25.94)
28
(1.102)
215
(8.46)
28.5
(1.122)
4.5
(0.177)
4.5
(0.177)
M10
71
(156.56)
