Mechanical Installation
2
2.7 Removing/Reattaching Covers
SIEPYEUOQ2A01G AC Drive Q2A Technical Manual 47

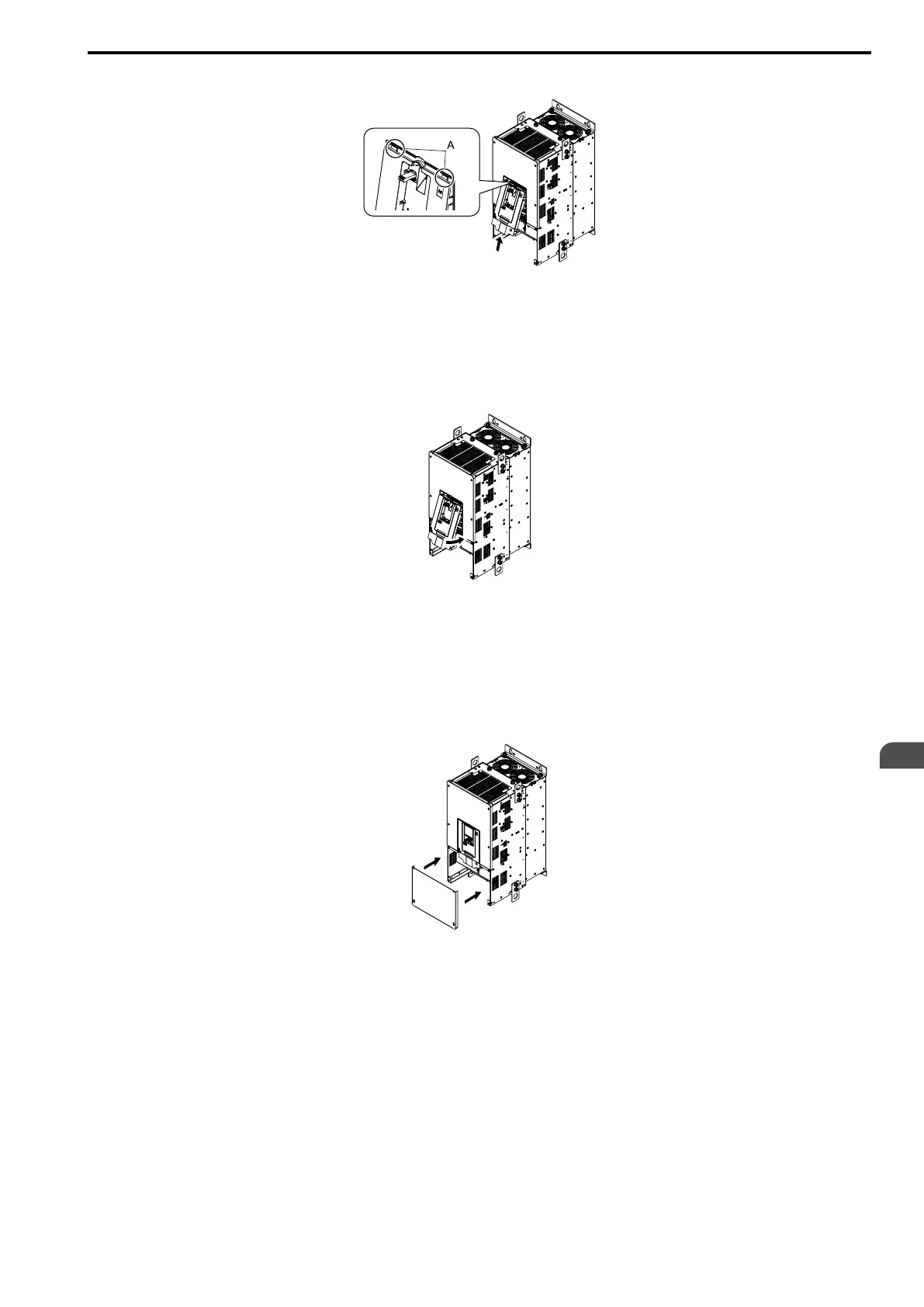

1. Move the front cover to connect the hooks at the top of the front cover to the drive.
A - Hooks
Figure 2.29 Reattach the Front Cover
2. Move the front cover until it clicks into position while pushing on the hooks on the left and right sides of the
front cover.
Note:
Make sure that you do not pinch wires or signal lines between the front cover and the drive before you reattach the cover.
Figure 2.30 Reattach the Front Cover
3. Reattach the keypad to the original position.
4. Wire the drive and other peripheral devices then reattach the terminal cover.
Note:
• Wire the grounding terminals first, main circuit terminals next, and control circuit terminals last.
• Make sure that you do not pinch wires or signal lines between the wiring cover and the drive before you reattach the cover.
• Tighten the screws to a tightening torque of 0.98 N∙m to 1.33 N∙m (8.67 lb.∙in. to 11.77 lb.∙in.).
Figure 2.31 Reattach the Terminal Cover
To Next Page
