Parameter Details
12
12.5 E: MOTOR
SIEPYEUOQ2A01G AC Drive Q2A Technical Manual 633

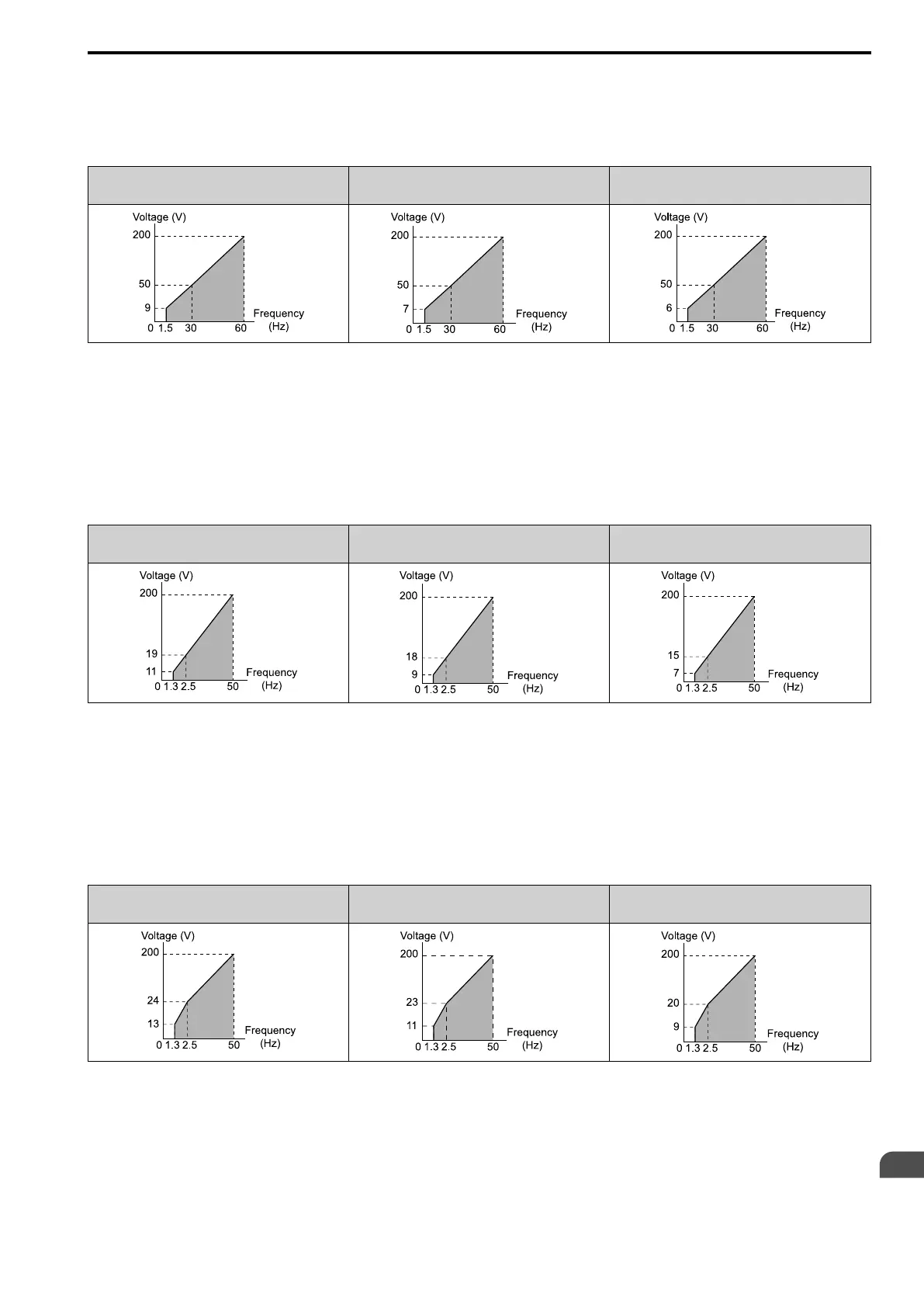

Use this derated torque pattern for torque loads proportional to two times the rotation speed. For example, fans
and pumps.
Note:
The voltage values in the figures are for 200 V class drives. Multiply the values by 2 for 400 V class drives.
HD: 4002 - 4012
ND: 4002 - 4009
HD: 4018 - 4103
ND: 4012 - 4089
HD: 4140 - 4675
ND: 4103 - 4675
8 : HT_50Hz_125 V
Use this pattern when moderate torque is necessary during start up.
Select this pattern only in these conditions:
• The wiring distance between the drive and motor is 150 m (492.1 ft.) minimum.
• There is an AC reactor connected to the drive output.
Note:
The voltage values in the figures are for 200 V class drives. Multiply the values by 2 for 400 V class drives.
HD: 4002 - 4012
ND: 4002 - 4009
HD: 4018 - 4103
ND: 4012 - 4089
HD: 4140 - 4675
ND: 4103 - 4675
9 : HTrq50Hz-165 V
Use this pattern when high torque is necessary during start up.
Select this pattern only in these conditions:
• The wiring distance between the drive and motor is 150 m (492.1 ft.) minimum.
• There is an AC reactor connected to the drive output.
Note:
The voltage values in the figures are for 200 V class drives. Multiply the values by 2 for 400 V class drives.
HD: 4002 - 4012
ND: 4002 - 4009
HD: 4018 - 4103
ND: 4012 - 4089
HD: 4140 - 4675
ND: 4103 - 4675
A : HTrq60Hz-125V
Use this pattern when moderate torque is necessary during start up.
Select this pattern only in these conditions:
• The wiring distance between the drive and motor is 150 m (492.1 ft.) minimum.
• There is an AC reactor connected to the drive output.
