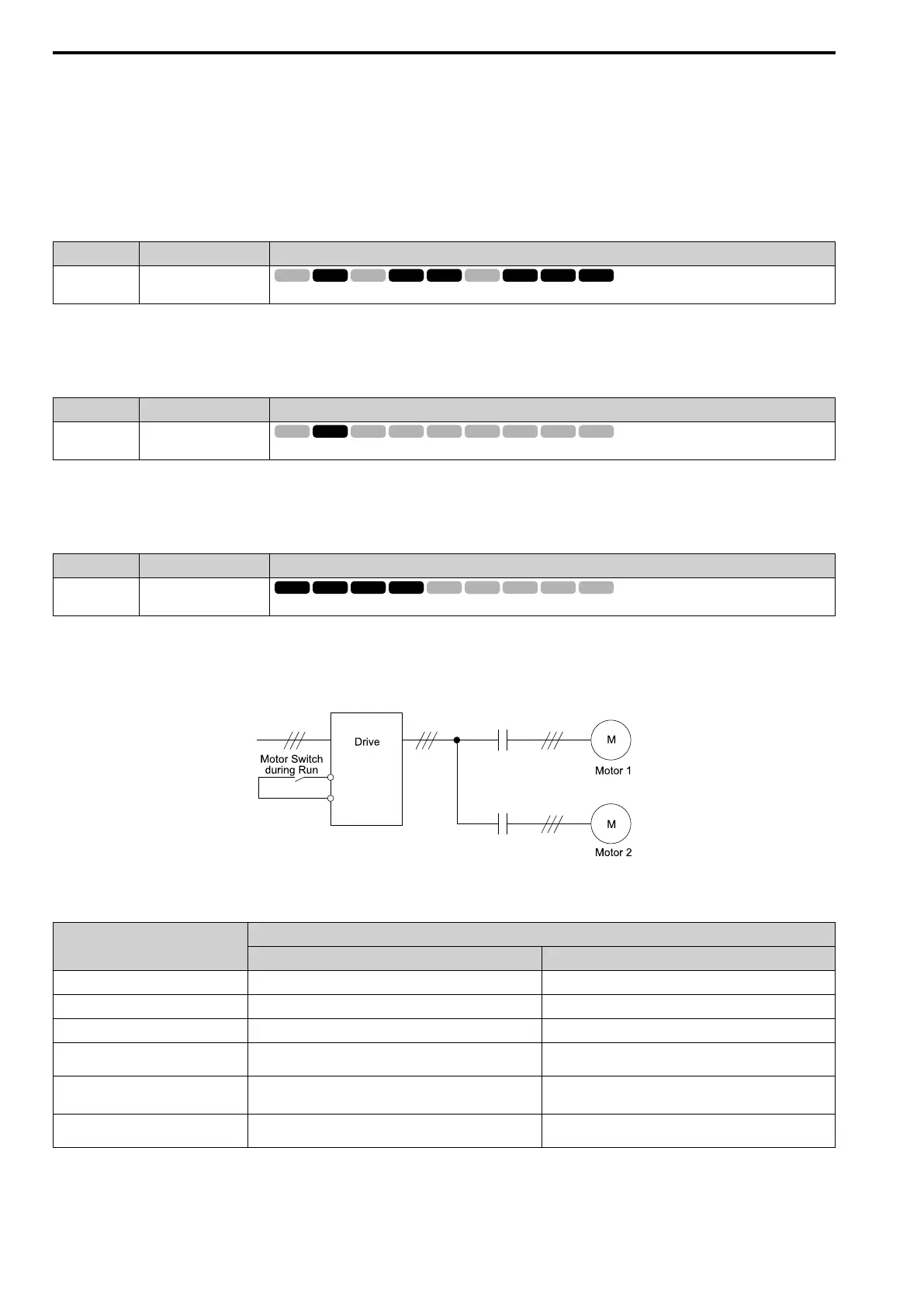

12.7 H: TERMINALS
702 SIEPYEUOQ2A01G AC Drive Q2A Technical Manual
ON : C5-03
Switches the proportional gain to C5-03 [ASR PGain 2].
OFF : C5-01
Switches the proportional gain to C5-01 [ASR PGain 1].
Note:
Refer to C5: ASR - SPEED REGULATION for more information.
46: ASR I Reset
Setting Function Description
46 ASR I Reset
Sets the command to reset the integral value and use PI control or P control for the speed control loop.
ON : P control
OFF : PI control
47: PG Enc Disable
Setting Function Description
47 PG Enc Disable
Sets the command to disable speed feedback control and run the drive in V/f control or use speed feedback from the encoder.
ON : Speed feedback control disable (V/f Control)
OFF : Speed feedback control enable (Closed Loop V/f Control)
61: Motor 2 Select
Setting Function Description
61 Motor 2 Select
Sets the command for the drive to operate motor 1 or motor 2. Stop the motors before switching.
You can use an external input to switch operation between two induction motors. The drive will save the control
methods, V/f patterns, and motor parameters for the two motors.
ON : Selects motor 2
OFF : Selects motor 1
When you select motor 2, the drive will switch to motor 2 parameters.
Table 12.41 Parameters that Switch between Motor 1 and Motor 2
Parameters
Motor 2 Selection
OFF (Motor 1) ON (Motor 2)
C1-xx [Accel & Decel Time] C1-01 to C1-04 C1-05 to C1-08
C3-xx [Slip Compensation] C3-01 to C3-04 C3-21 to C3-24
C4-xx [Torque Compensation] C4-01 C4-07
C5-xx [Automatic Speed Regulator
(ASR)]
C5-01 to C5-08, C5-12, C5-17, C5-18 C5-21 to C5-28, C5-32, C5-37, C5-38
E1-xx, E3-xx [V/f Patterns]
E2-xx, E-4xx [Motor Parameters]
E1-xx, E2-xx E3-xx, E4-xx
F1-xx [Number of PG pulses per
Revolution]
F1-01 to F1-21 F1-02 to F1-04, F1-08 to F1-11, F1-14, F1-31 to F1-37
V/f
CL-V/f
OLV
CLV
AOLV
OLV/PM OLV/PM
AOLV/PM
CLV/PM
EZOLV
V/f
CL-V/f
OLV
CLV
AOLV
OLV/PM OLV/PM
AOLV/PM
CLV/PM
EZOLV
V/f
CL-V/f
OLV
CLV
AOLV
OLV/PM OLV/PM
AOLV/PM
CLV/PM
EZOLV
