Parameter Details
12
12.7 H: TERMINALS
SIEPYEUOQ2A01G AC Drive Q2A Technical Manual 711
Use H2-61, H2-64, H2-67 [2NO-2CM Logic Operation, 3NO-3CM Logic Operation, 4NO-4CM Logic Operation]
to set the logical operation.

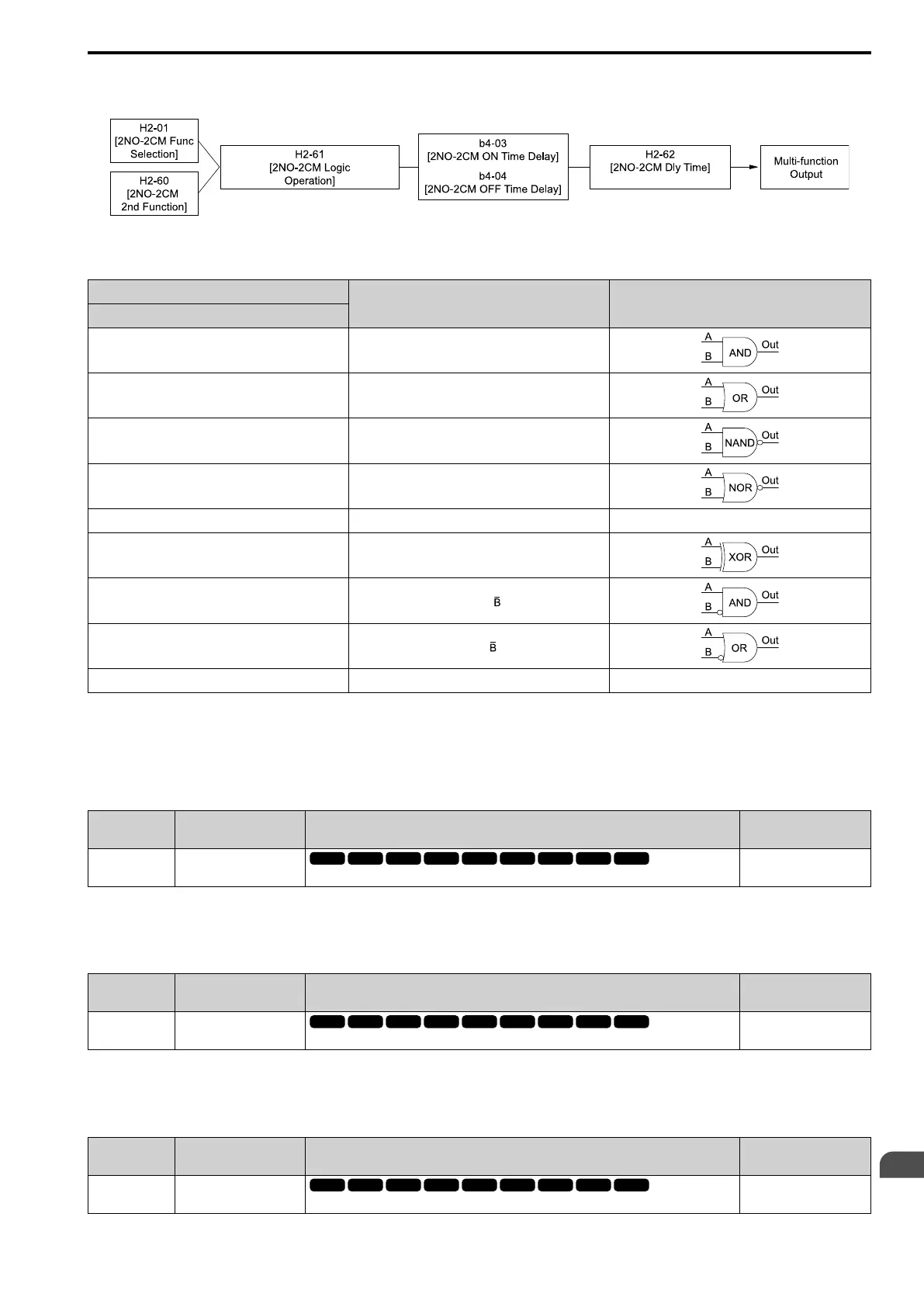

Figure 12.82 Functional Block Diagram of Logical Operation Output for MFDO 1
Table 12.47 MFDO Logical Operation Table
Logical Operation Selection
Logical Operation Expression Logical Operation Notation
H2-61, H2-64, H2-67
1 A=B=1
2 A=1 or B=1
3 A=0 or B=0
4 A=B=0
5 A=B A=B
6 A != B
7
AND(A, )
8
OR(A, )
9 - On
Note:
• If you use the function to output logical calculation results, you cannot set H2-01 to H2-03 = 1xx [Inverse Output of xx]. If you do, the
drive will detect oPE33 [Digital Output Selection Error ].
• When you do not use H2-60, H2-63, and H2-66, set them to 0. The Through Mode function is not supported.
■ H2-01 Multi-Function Digital Output 1
No.
(Hex.)
Name Description
Default
(Range)
H2-01
(040B)
Multi-Function Digital
Output 1
Sets the function for MFDO terminal 2NO-2CM.
0
(0 - 1FF)
Note:
Set this parameter to 0 when not using the terminal or to use the terminal in through mode.
■ H2-02 Multi-Function Digital Output 2
No.
(Hex.)
Name Description
Default
(Range)
H2-02
(040C)
Multi-Function Digital
Output 2
Sets the function for MFDO terminal 3NO-3CM.
1
(0 - 1FF)
Note:
Set this parameter to 0 when not using the terminal or to use the terminal in through mode.
■ H2-03 Multi-Function Digital Output 3
No.
(Hex.)
Name Description
Default
(Range)
H2-03
(040D)
Multi-Function Digital
Output 3
Sets the function for MFDO terminal 4NO-4CM.
2
(0 - 1FF)
