Parameter Details
12
12.7 H: TERMINALS
SIEPYEUOQ2A01G AC Drive Q2A Technical Manual 723
■ 11: SpeedAgree2
Setting Function Description
11 SpeedAgree2
The terminal activates when the output frequency is in the range of the frequency reference ± L4-04 [SpAgree Det.Width(+/-)].
Note:
• The motor rotation direction does not have an effect on the detection function. The drive uses the L4-01 value as the forward/reverse
detection level.
• CLV and CLV/PM control use motor speed as the reference.
ON : The output frequency is in the range of “frequency reference ± L4-04”.
OFF : The output frequency is not in the range of “frequency reference ± L4-04”.

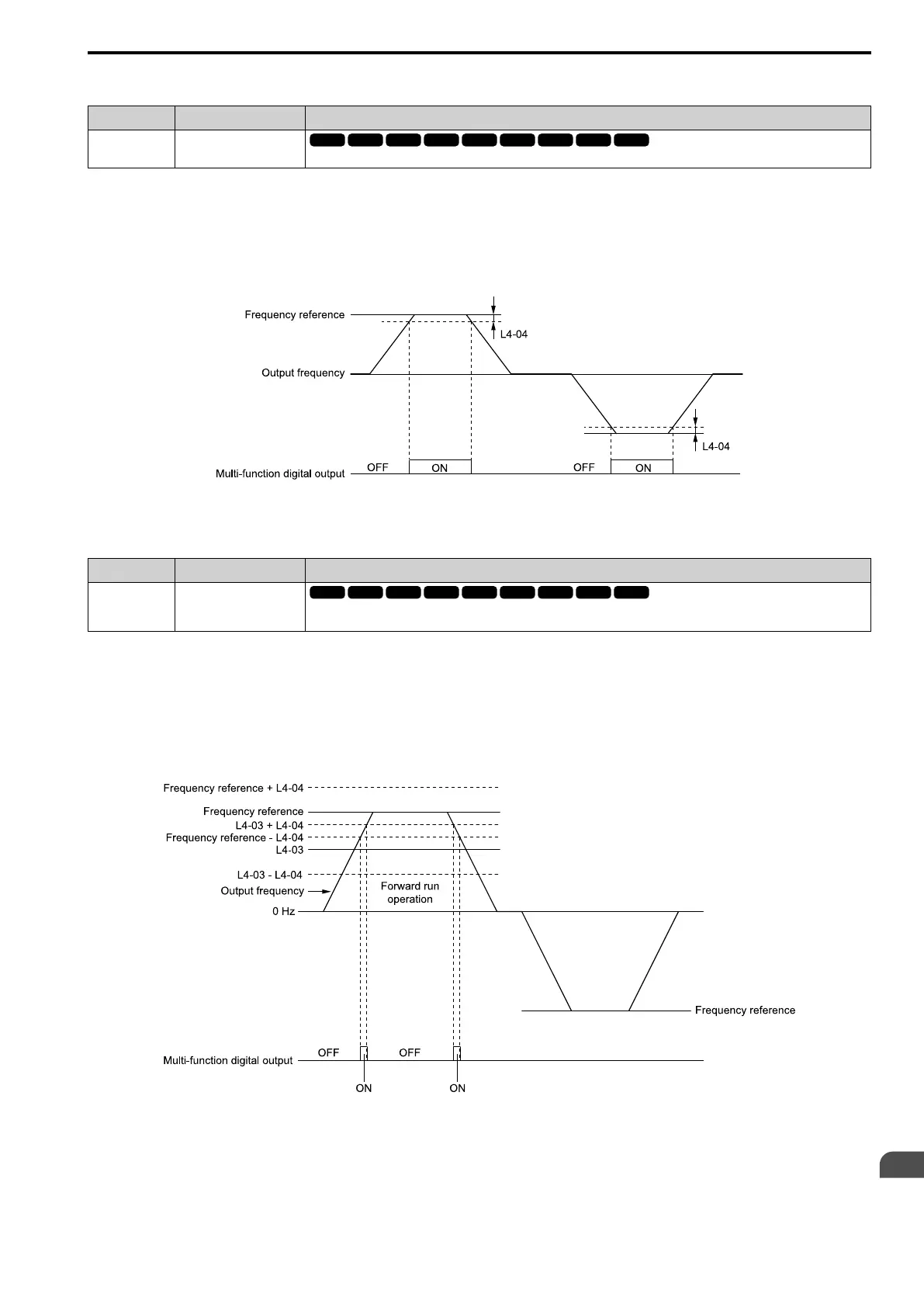

Figure 12.90 Speed Agree 2 Time Chart
■ 12: USpeedAgree2
Setting Function Description
12 USpeedAgree2
The terminal activates when the output frequency is in the range of L4-03 [SpAgree Det.Level(+/-)] ± L4-04 [SpAgree Det.
Width(+/-)] and in the range of the frequency reference ± L4-04.
Note:
• The detection level configured with L4-03 is a signed value. The drive will only detect in one direction.
• CLV and CLV/PM control use motor speed as the reference.
ON : The output frequency is in the range of “L4-03 ± L4-04” and the range of frequency
reference ± L4-04.
OFF : The output frequency is not in the range of “L4-03 ± L4-04” or the in the range of frequency
reference ± L4-04.
Figure 12.91 Example of User-set Speed Agree 2 (L4-03 Is Positive)
