Range Rover Evoque - UNDER BONNET COVERS - REMOVAL; UNDER BONNET COVERS - REFITTING

UNDER BONNET COVERS -
REMOVAL

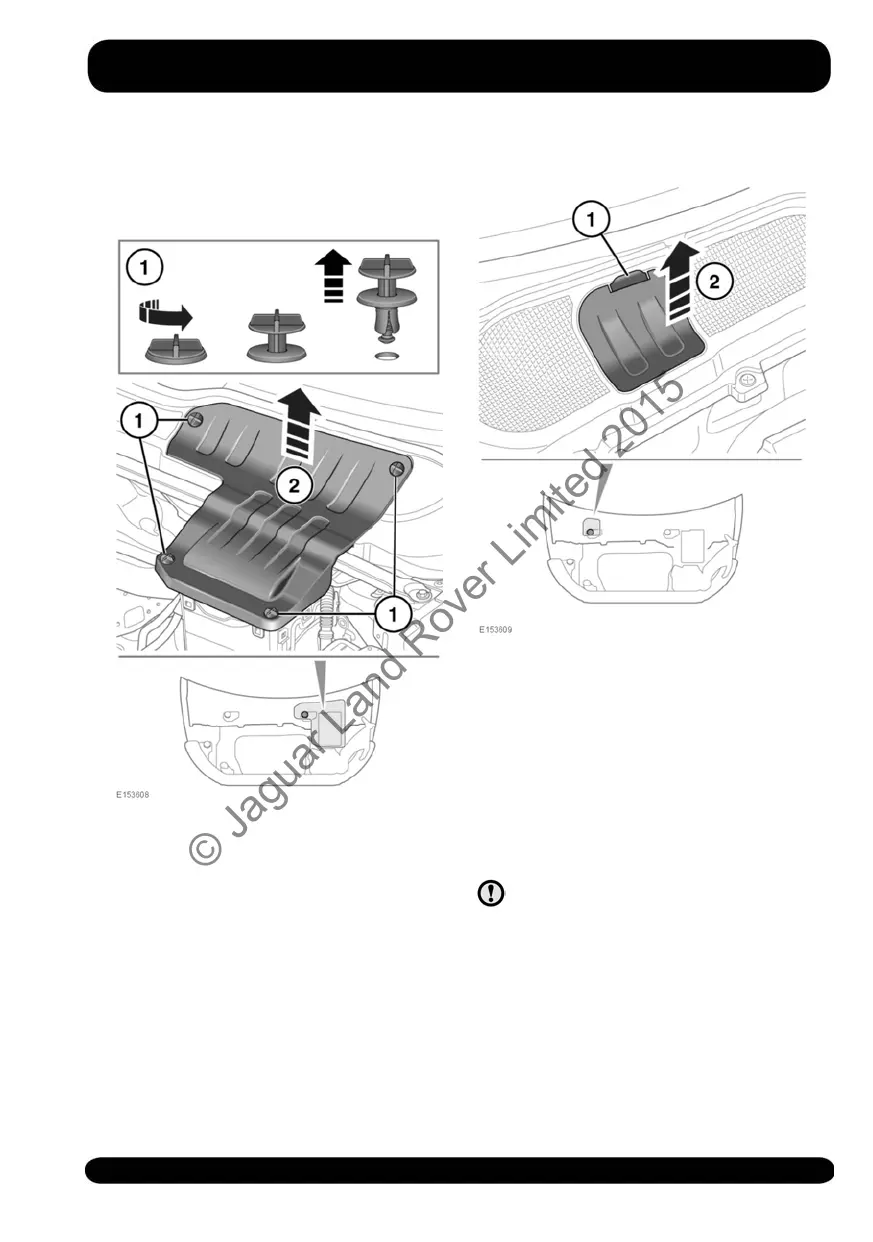

Left-side under bonnet cover
1. Unscrew the turnbuckles clips
counter-clockwise and remove.
2. Lift the front edge of the cover and
slide forward to remove.
Right-side under bonnet cover
1. Pull the cover securing catch towards
the front of the vehicle to release.
2. While still holding the cover securing
catch, lift up the edge of the cover to
remove.
UNDER BONNET COVERS -
REFITTING
Left-side under bonnet cover
Before refitting the under bonnet
cover, make sure no pipes, cables
or other items, have been trapped
between the cover and the casing.
1. Place the under bonnet cover over the
casing, making sure that all of the
holes are aligned.
201
