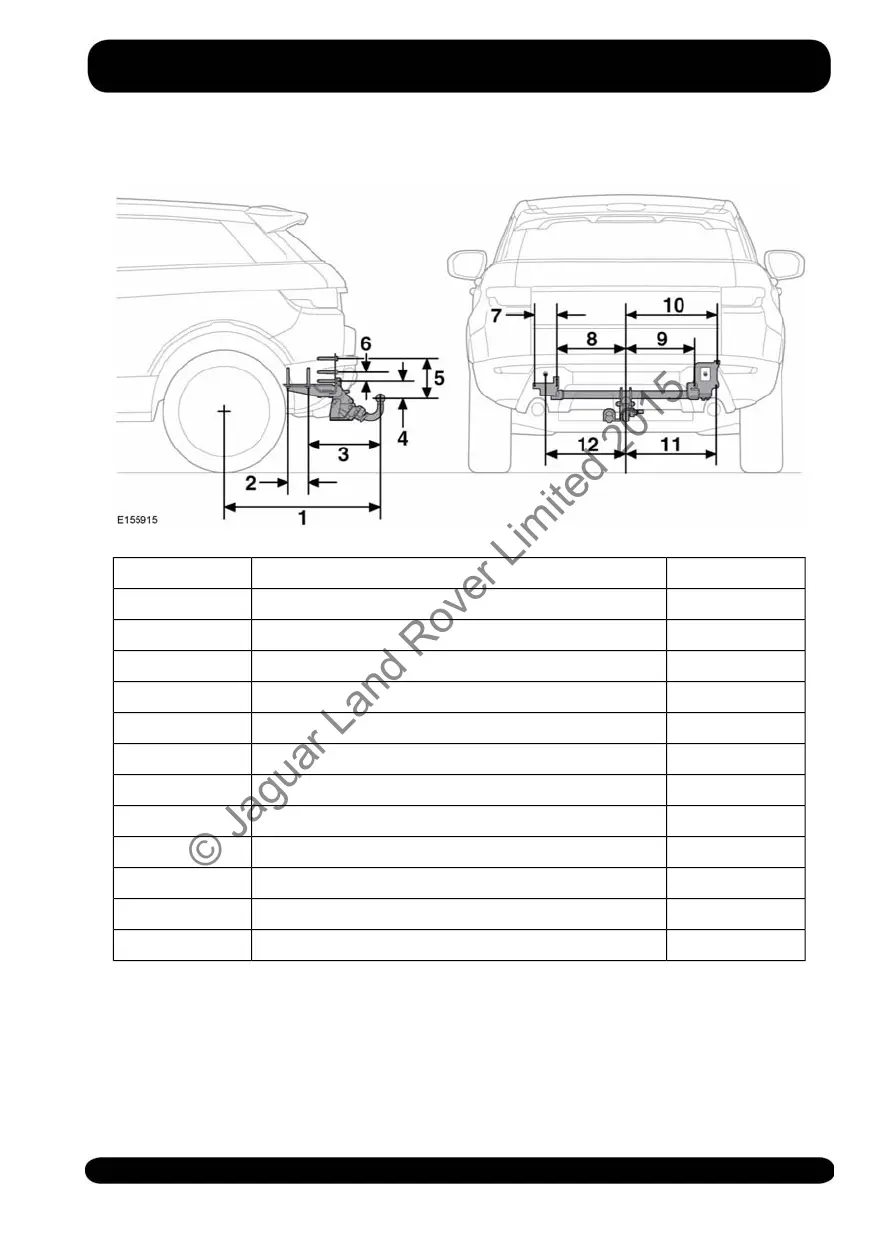

TOW BAR DIMENSIONS AND MOUNTING POINTS

(mm)DimensionRef.

870Wheel centre to centre of tow ball1

110Fixing points2

405Fixing point to centre of tow ball3

83Centre of tow ball to tow bar attachment4

220Centre of tow ball to fixing point5

32Fixing points6

130Fixing points7

415Centre of tow ball to fixing point8

415Centre of tow ball to fixing point9

545Centre of tow ball to fixing point10

550Centre of tow ball to fixing point11

480Centre of tow ball to fixing point12

Note: Dimensions refer to towing

equipment officially released by the

vehicle manufacturer.
