LABEL LOCATIONS
Warning labels attached to the
vehicle bearing this symbol
mean: Do not touch or adjust
components until you have read
the relevant instructions in the
handbook.
Labels showing this symbol
indicate that the ignition system
utilises very high voltages. Do
not touch any ignition
components while the starter
switch is switched on.

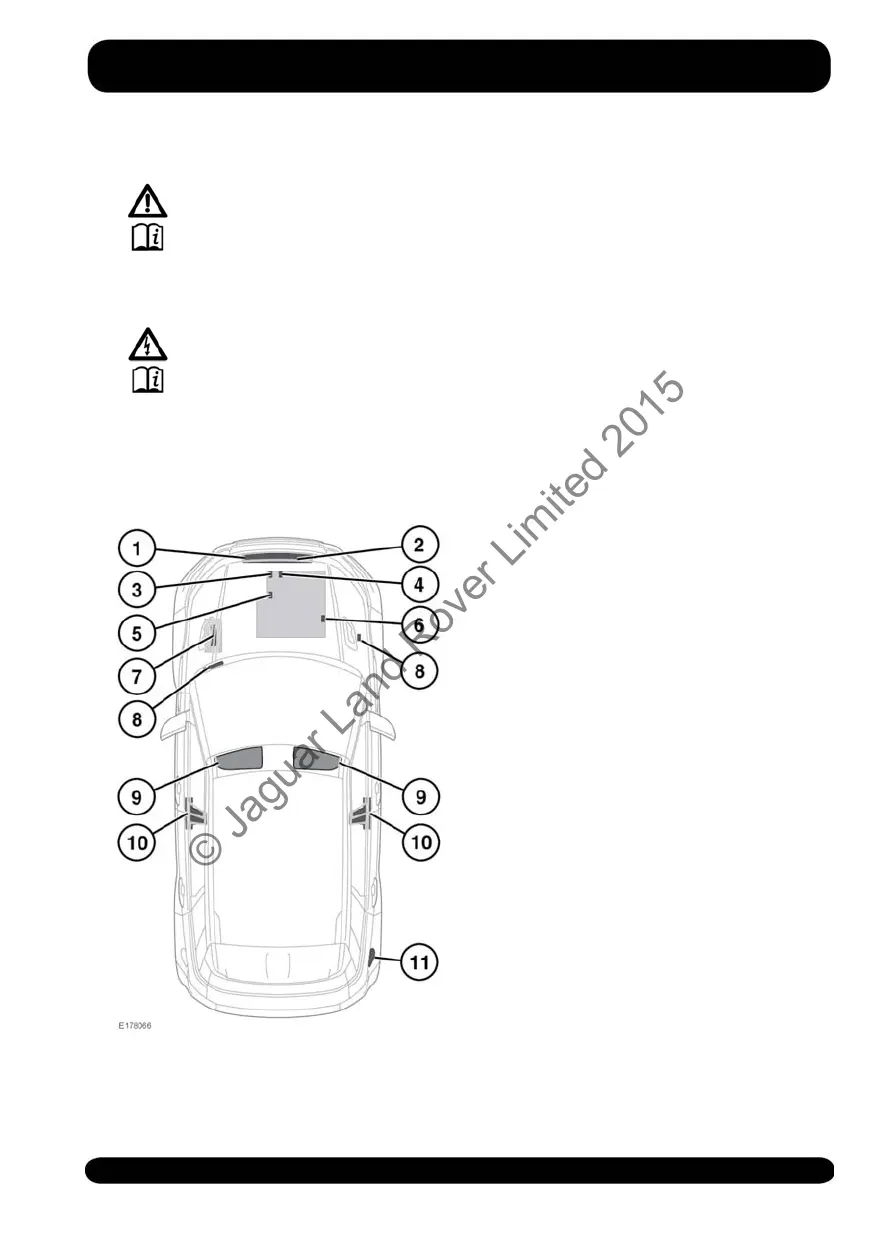

Additional information labels may also be
found at the following locations:
1. Air conditioning label: Located on the
bonnet locking platform.
2. Vehicle Identification Number (VIN):
Located on the bonnet locking
platform.
3. Engine information label (2.0L diesel):
Located on the intake manifold.
4. Engine identification information (2.0L
diesel): Stamped into the marking pad
on the cylinder block.
5. Engine identification information:
Stamped into the engine mounting
flange.
6. Engine information label: Located on
the top right side of the engine cover.
7. Battery warning symbols: Located on
the top of the battery.
8. The VIN is stamped on a plate, which
is visible through the lowest part of the
left side of the front windscreen.
The VIN is also stamped into the right
side, front inner wing.
The VIN can also be shown in the
Message centre via the Vehicle Info
and VIN Display Information panel
menus. See 49, INSTRUMENT PANEL
MENU.
Note: If you need to communicate
with a Retailer/Authorised Repairer,
you may be asked to quote the VIN
number.
9. Airbag label and vehicle handling
label: Located on the Sun visors.
10.Tyre pressure label, airbag warning
label and Certification label: Located
at the base of the left side B pillar.
The Certification label shows VIN, tyre
and build date information.
11.Fuel specification label: Located inside
the fuel filler flap.
