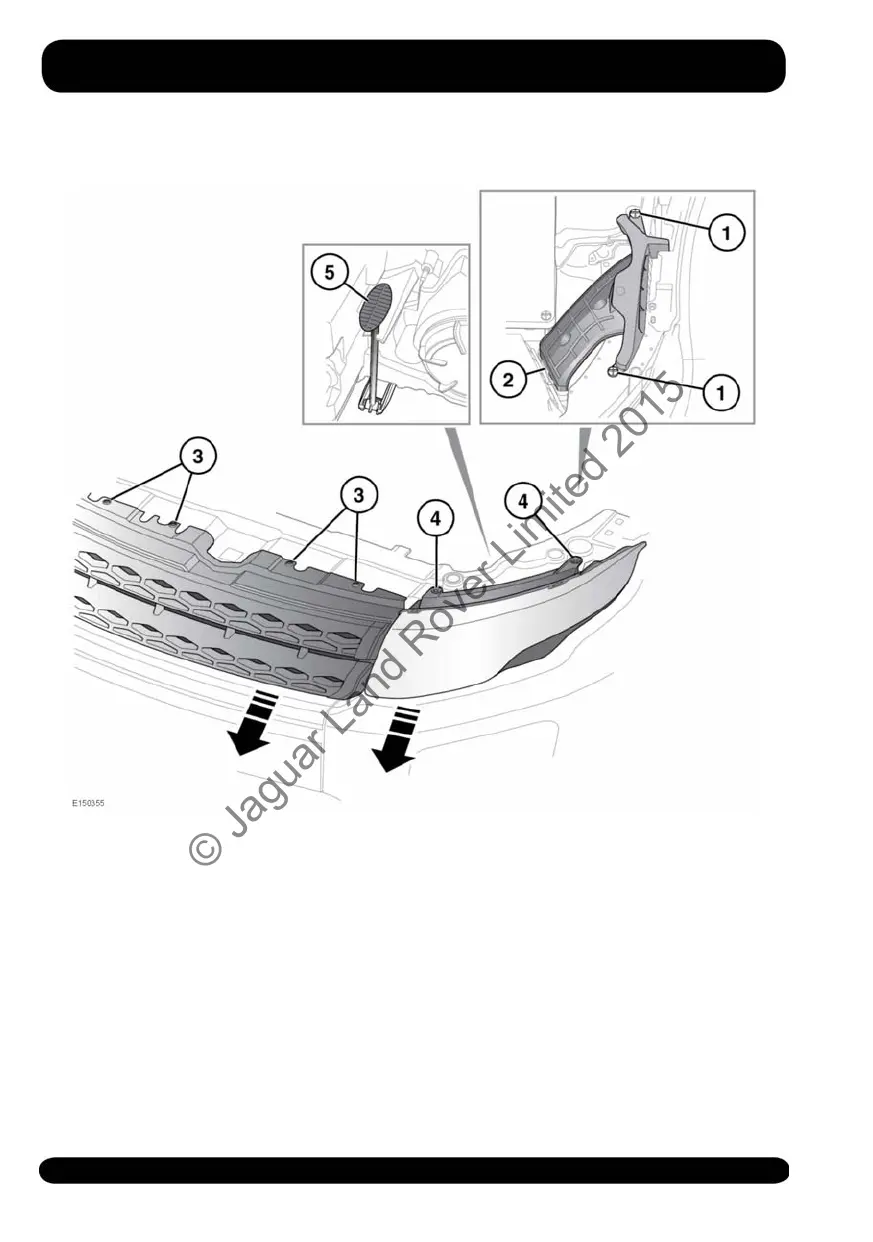

HEADLAMP REMOVAL
Moving the left headlamp unit to access
the bulbs:
1. Remove the 2 plastic fixings.
2. Pull the tube up to release from the air
box. This will allow more room for
manoeuvrability.
3. Remove the 4 grille fixings.
4. Remove the 2 retaining bolts.
5. At the rear of the headlamp unit, pull
up on the T grip release mechanism
and hold while sliding the headlamp
unit forward 40 mm.
