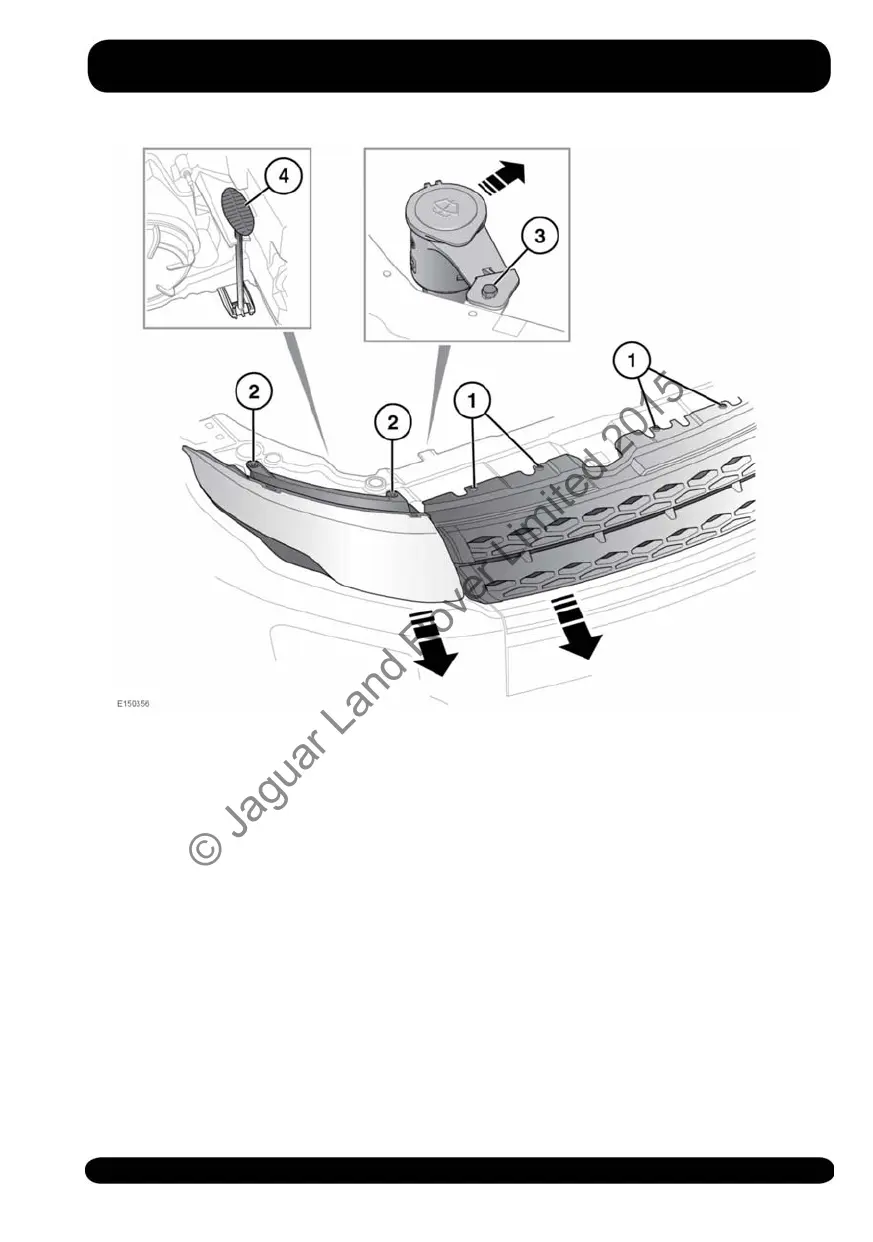

Moving the right headlamp unit to access
the bulbs:
1. Remove the 4 grille fixings.
2. Remove the 2 retaining bolts.
3. Remove the fixing and then move the
filler tube rearwards. This will allow
more room for access to the bulb
holders.
4. At the rear of the headlamp unit, pull
up on the T grip release mechanism
and hold while sliding the headlamp
unit forward 40 mm.
205
Maintenance
© Jaguar Land Rover Limited 2015
