Halogen headlamp bulb replacement
Removing a halogen headlamp bulb:

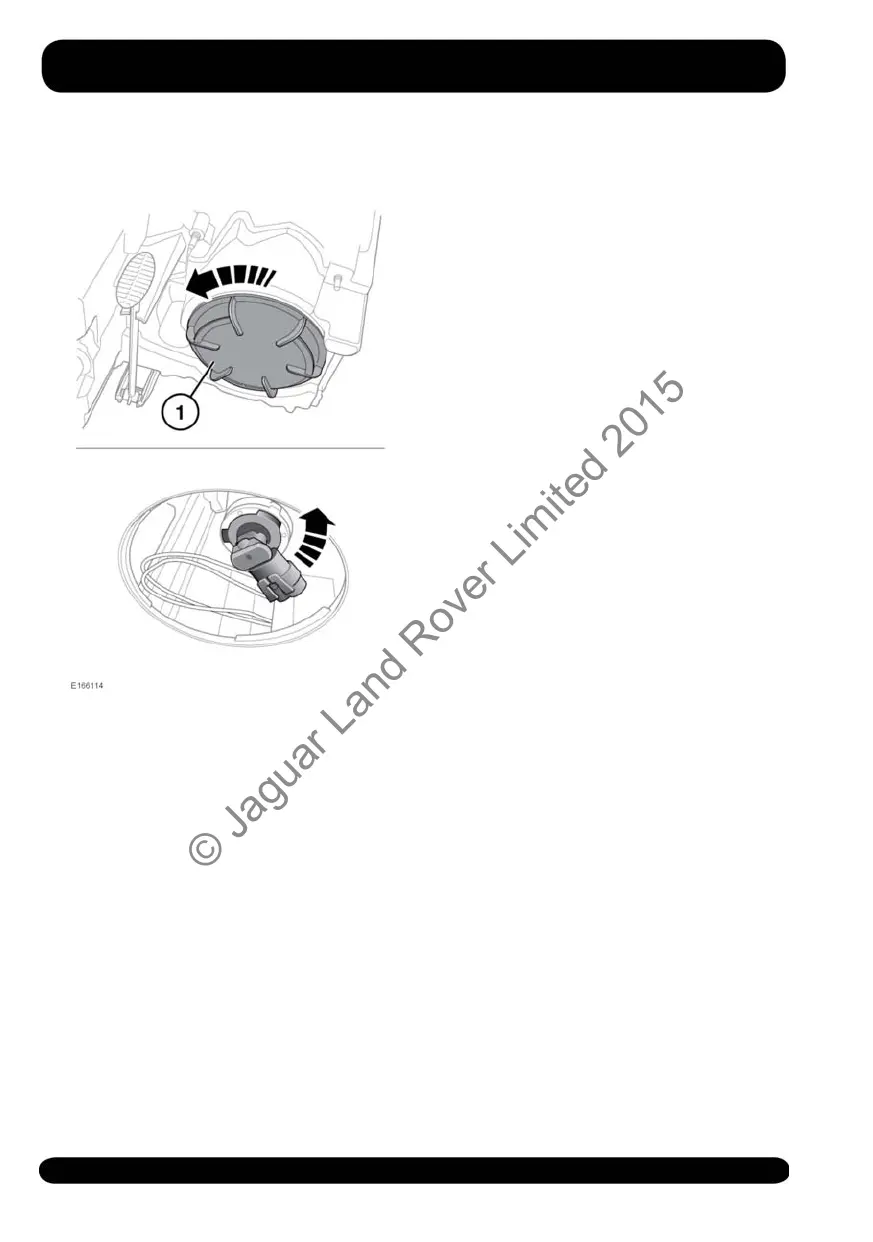

1. At the back of the headlamp unit,
remove the cover. Turn it counter-
clockwise to release.
2. The back of the bulb unit will now be
exposed. Release the clip and pull
down on the electrical connector to
release it from the bulb unit.
3. Turn the bulb unit counter-clockwise
and remove it from the headlamp unit.
Note: Note the orientation of the bulb
unit to aid refitting.
Reverse the removal procedure to install
a new bulb.
206
Maintenance
© Jaguar Land Rover Limited 2015
