21 August 2006
3-22

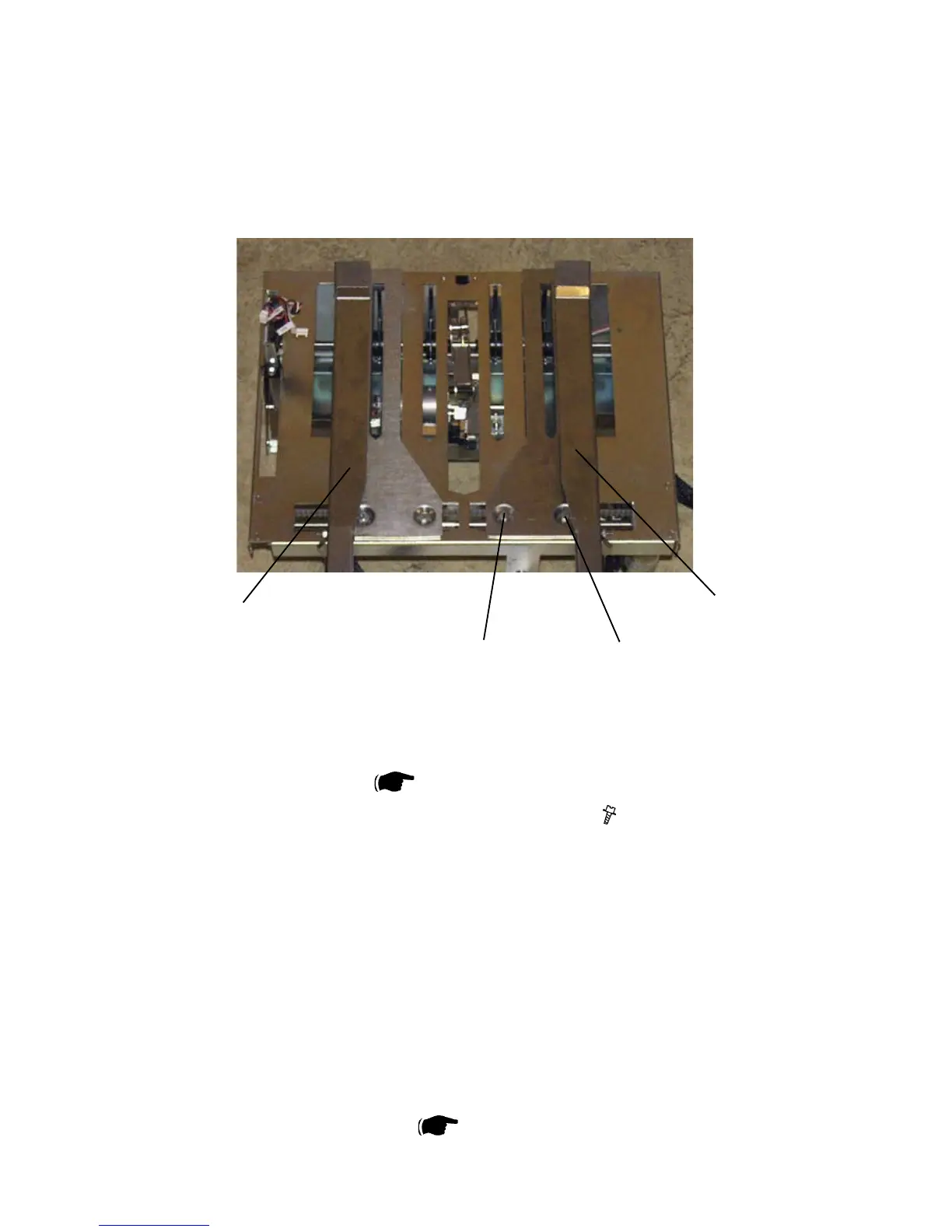

3.4.6 SIDE GUIDES
AREA A
Removal Front
1. Remove Infeed module (
3.4.1 ).
2. Remove screw [A] and [B] to the Front side guide [C] (
x2 ).
3. Same procedure on the Rear side guide [D].
Replacement
1. Reverse the removal procedure.
NOTE: Make sure that you are using the correct screws (M4 x 8mm) when
reinstalling the side guides. If you are using longer screws, you may damage
the side guide shaft.
Adjustment
1. Adjust Side guide parallelism (
3.9.2 ).
[B][A]
[D]
[C]
