1.3 BOOKLET MAKER INSTALLATION
1.3.1 ACCESSORY CHECK

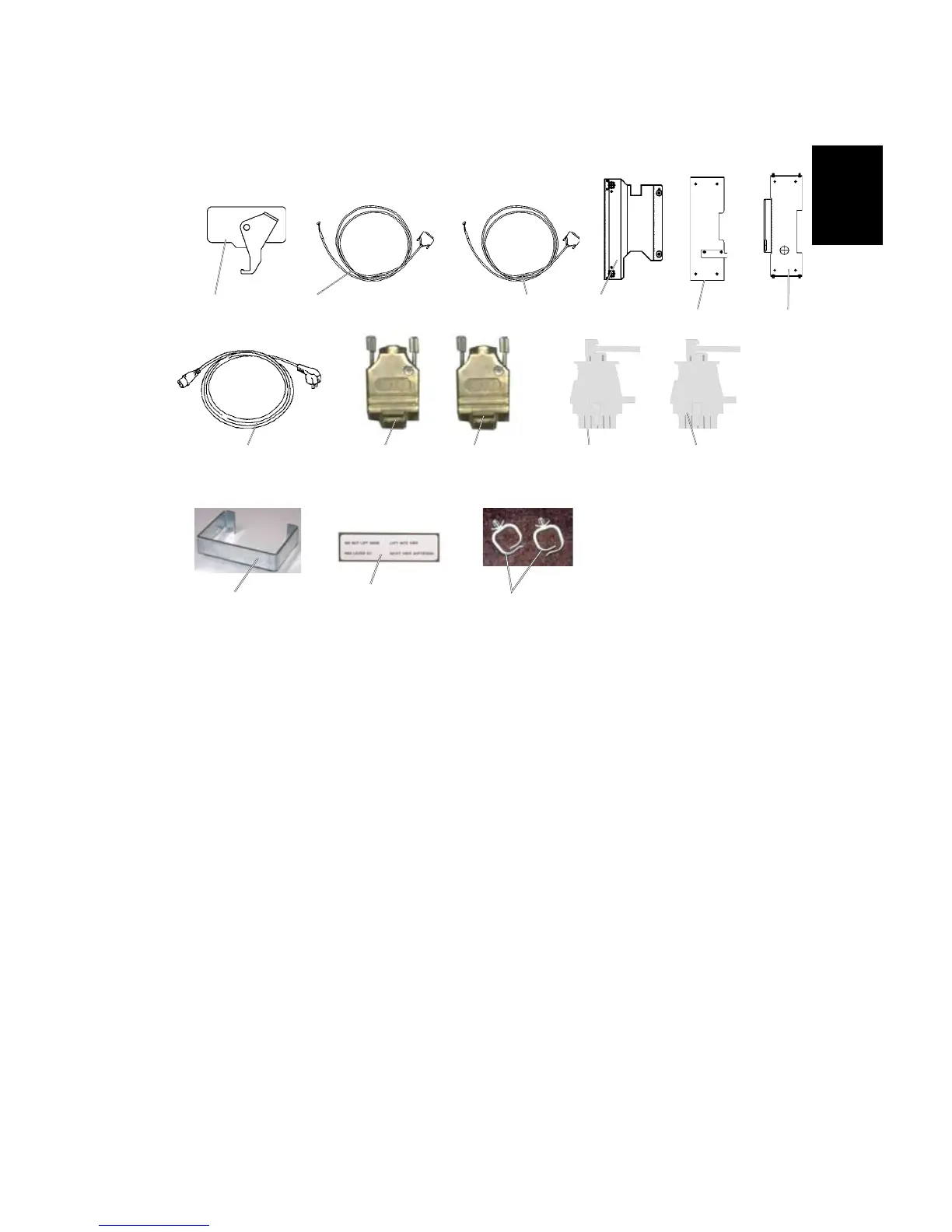

Check the quantity and condition of the accessories in the box against the following list:
Description Q’ty
A. Exit arm Catcher .................................................................. 1
B. Communication Cable to SR5000 nisher ........................... 1
C. Communication Cable to SR841 nisher ............................. 1
D. Docking assembly ................................................................ 1
E. Shift tray plate ...................................................................... 1
F. Exit tray plate ....................................................................... 1
G. Powercord ............................................................................ 1
H. Terminator plug, will always be installed onto BK5010 ........ 1
I. Terminator plug TR5010 ....................................................... 1
J. Interlock Jumper, will always be installed onto BK5010 ...... 1
K. Interlock Jumper TR5010 ..................................................... 1
L. Cable protector ..................................................................... 1
M. Cable protector sticker ........................................................ 1
N. Cable holder ......................................................................... 1
[A] [E][D][B] [F]
[G] [I]
[H]
[J] [K]
[C]
[L]
[M] [N]
