5.2.5 Downloading to PCB MD6DC A in Trimmer.
1. Switch Off the Main Power Switch.
2. Remove Rear Cover (
TR5010 Service Manual 1.1.1).

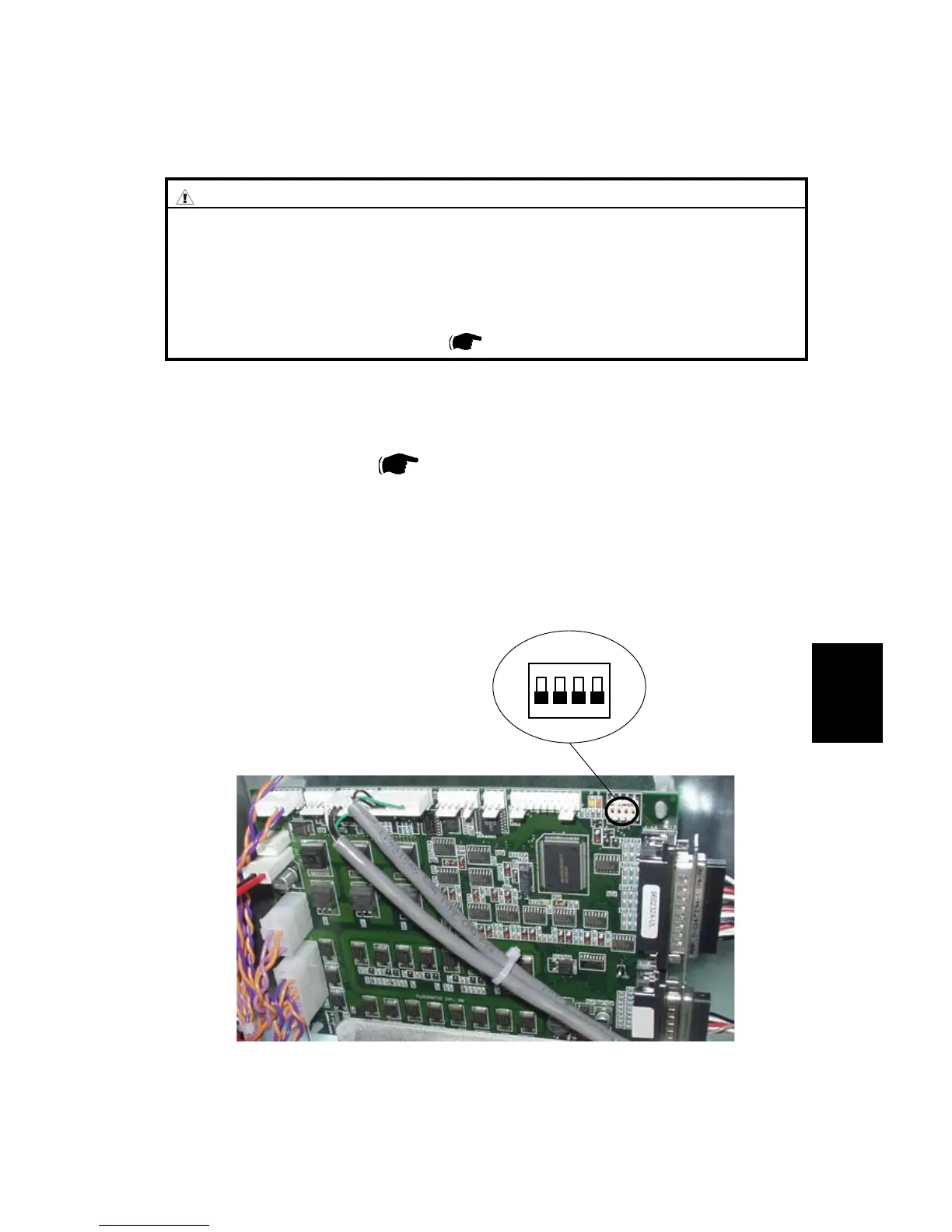

3. Make sure all DIP-switches 1 - 4 is set to OFF (down) position.
4. Run the TR5010 MD6DC v1.00.exe* le (* v1.00 is an example - use latest
version) and follow the instruction in the program, or according to the latest
bulletin.
ON
SERVICE PROGRAM MODE
CAUTION
ESD Hazard! ESD (Electrostatic Discharge) can cause software crashes,
data and/or communications problems. Failure to use proper ESD pro-
cedures will cause damage to electronic components (example: PCBs).
ESD problems can be minimized by maintaining all machine ground con-
nections, ensuring the proper handling of circuit boards and sensors. Use
ESD protection when working near PCBs. Failure to use ESD protection is
likely to result in a PCB failure ( 3.1 ).
