1. Switch Off the Main Power Switch.
2. Remove Rear Cover (
3.3.1).

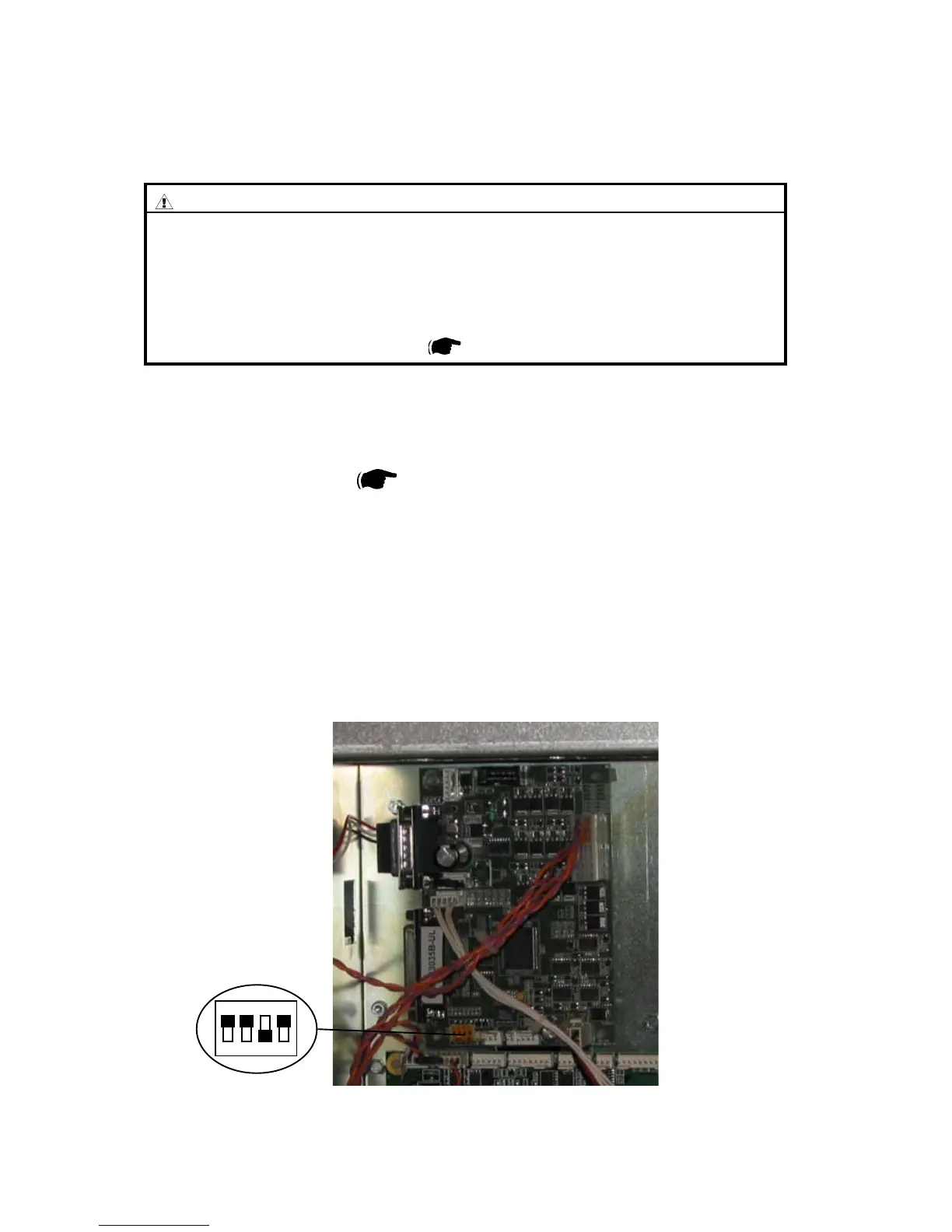

3. Make sure DIP-switches 2 is set to ON (down) position.
Make sure DIP-switches 1, 3 and 4 is set to OFF (up) position.
4. Run the BK5010 MD3DC v1.00.exe* le (* v1.00 is an example - use latest
version) and follow the instruction in the program, or according to the latest
bulletin.
NOTE: A red LED on the board will ash while downloading. When download is
complete LED goes out.
5.2.4 Downloading to lower PCB MD3DC H in the Booklet maker.
ON
SERVICE PROGRAM MODE
CAUTION
ESD Hazard! ESD (Electrostatic Discharge) can cause software crashes,
data and/or communications problems. Failure to use proper ESD pro-
cedures will cause damage to electronic components (example: PCBs).
ESD problems can be minimized by maintaining all machine ground con-
nections, ensuring the proper handling of circuit boards and sensors. Use
ESD protection when working near PCBs. Failure to use ESD protection is
likely to result in a PCB failure ( 3.1 ).
