Ricoh bk5010 - Infeed Cover

21 August 2006
3-8
COVERS
3.3.2 INFEED COVER
[B]
[A]

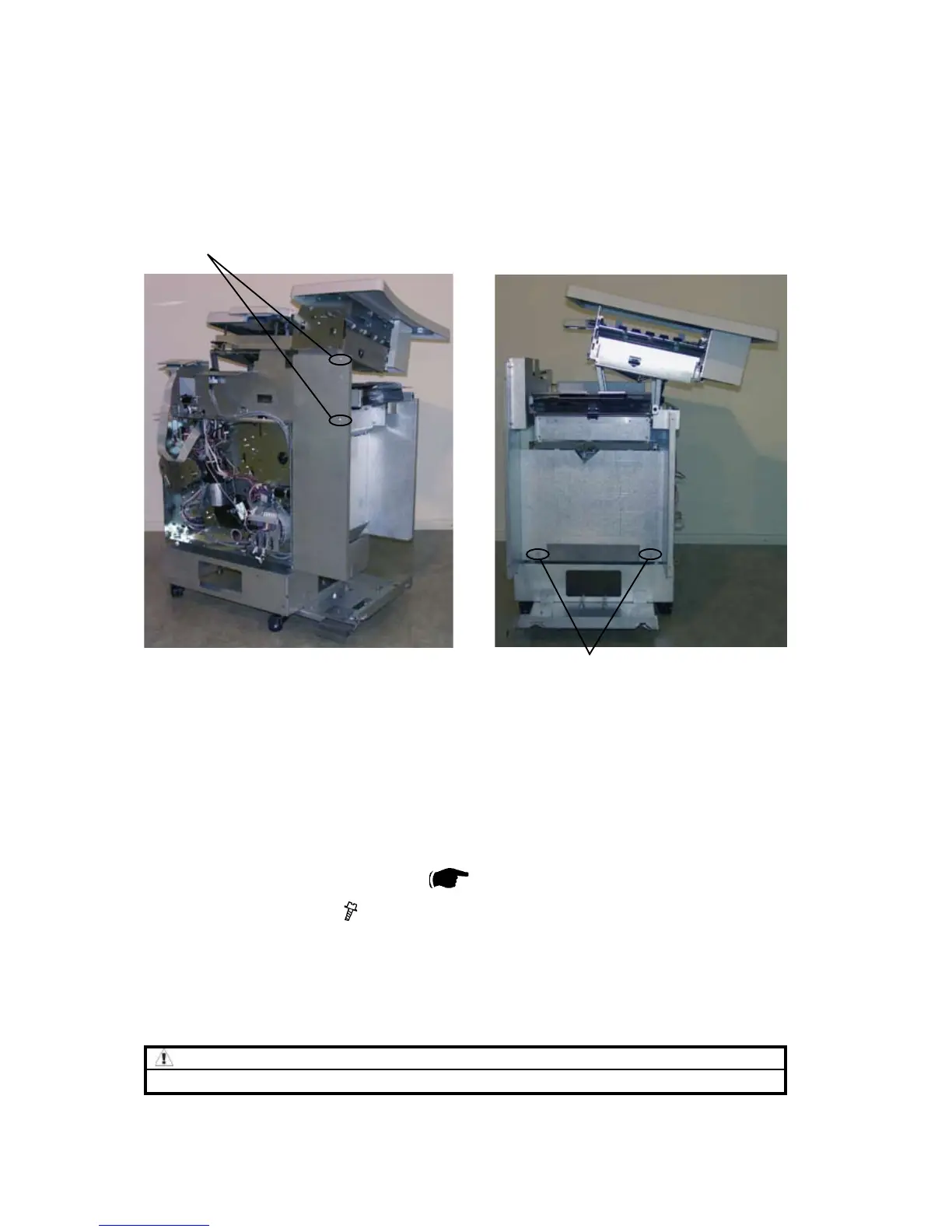

1. Remove Front and Rear cover (
3.3.1 ).
2. Remove screws [A] (
2 ).
3. Support Infeed Cover.
4. Remove screws [B] to remove Infeed Cover.
NOTE: Remove screws in this order to avoid bending front frame part.
WARNING
Infeed cover is very heavy and could cause injury if it falls down.
