21 August 2006
3-72
PCB

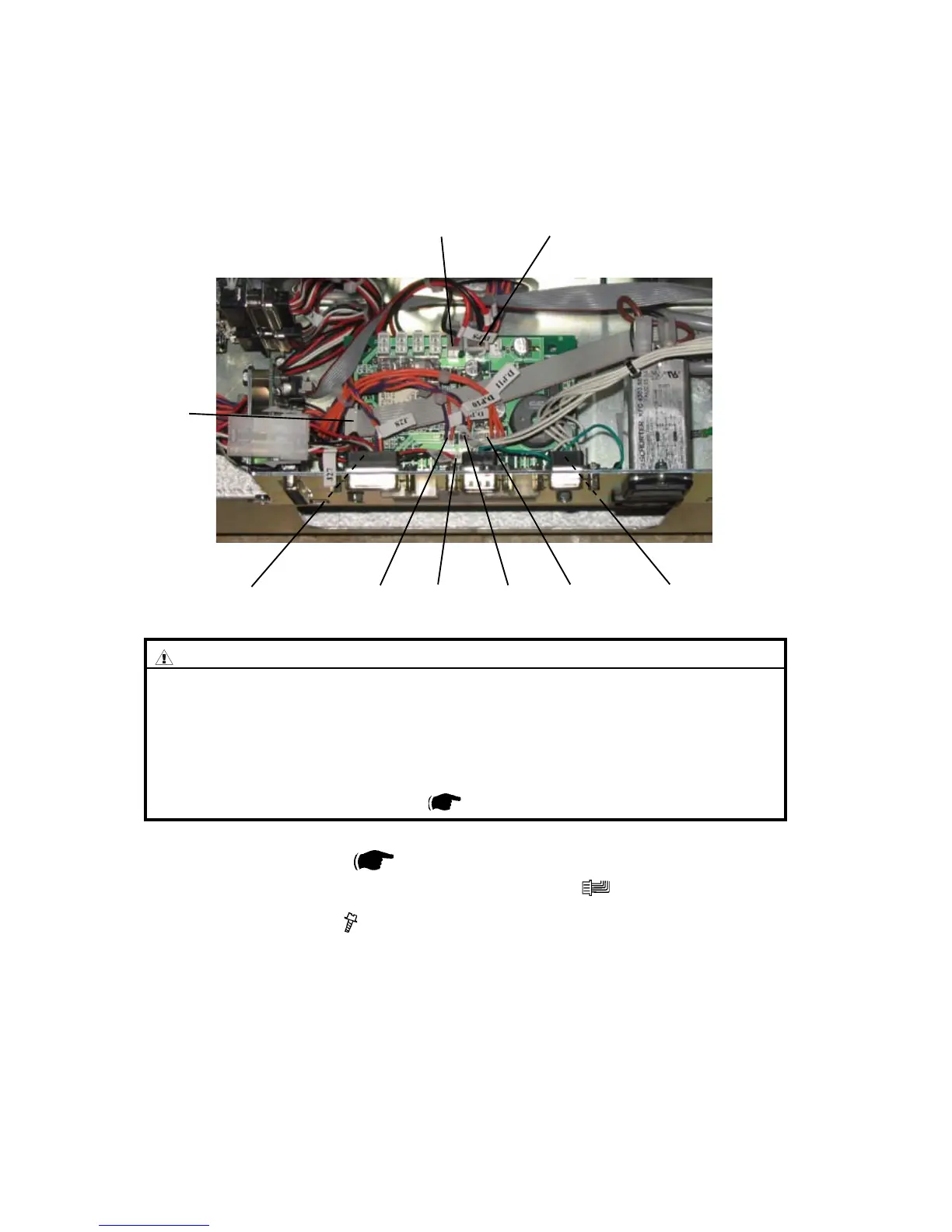

3.7.4 INTERLOCK PCB ”D”
1. Remove Rear cover ( 3.3.1 ).
2. Remove all connectors from the Interlock PCB “D” (
x7 ).
3. Remove screws [A] (
x2 ).
[A]
D.P6D.P5
D.P8
D.P9 D.P10D.P13
[A]
D.P11
CAUTION
ESD Hazard! ESD (Electrostatic Discharge) can cause software crashes,
data and/or communications problems. Failure to use proper ESD pro-
cedures will cause damage to electronic components (example: PCBs).
ESD problems can be minimized by maintaining all machine ground con-
nections, ensuring the proper handling of circuit boards and sensors. Use
ESD protection when working near PCBs. Failure to use ESD protection is
likely to result in a PCB failure ( 3.1 ).
To Next Page
