Replacement
Adjustment
21 August 2006
Replacement
Adjustment
3-75
CAUTION
ESD Hazard! ESD (Electrostatic Discharge) can cause software crashes,
data and/or communications problems. Failure to use proper ESD pro-
cedures will cause damage to electronic components (example: PCBs).
ESD problems can be minimized by maintaining all machine ground con-
nections, ensuring the proper handling of circuit boards and sensors. Use
ESD protection when working near PCBs. Failure to use ESD protection is
likely to result in a PCB failure ( 3.1 ).

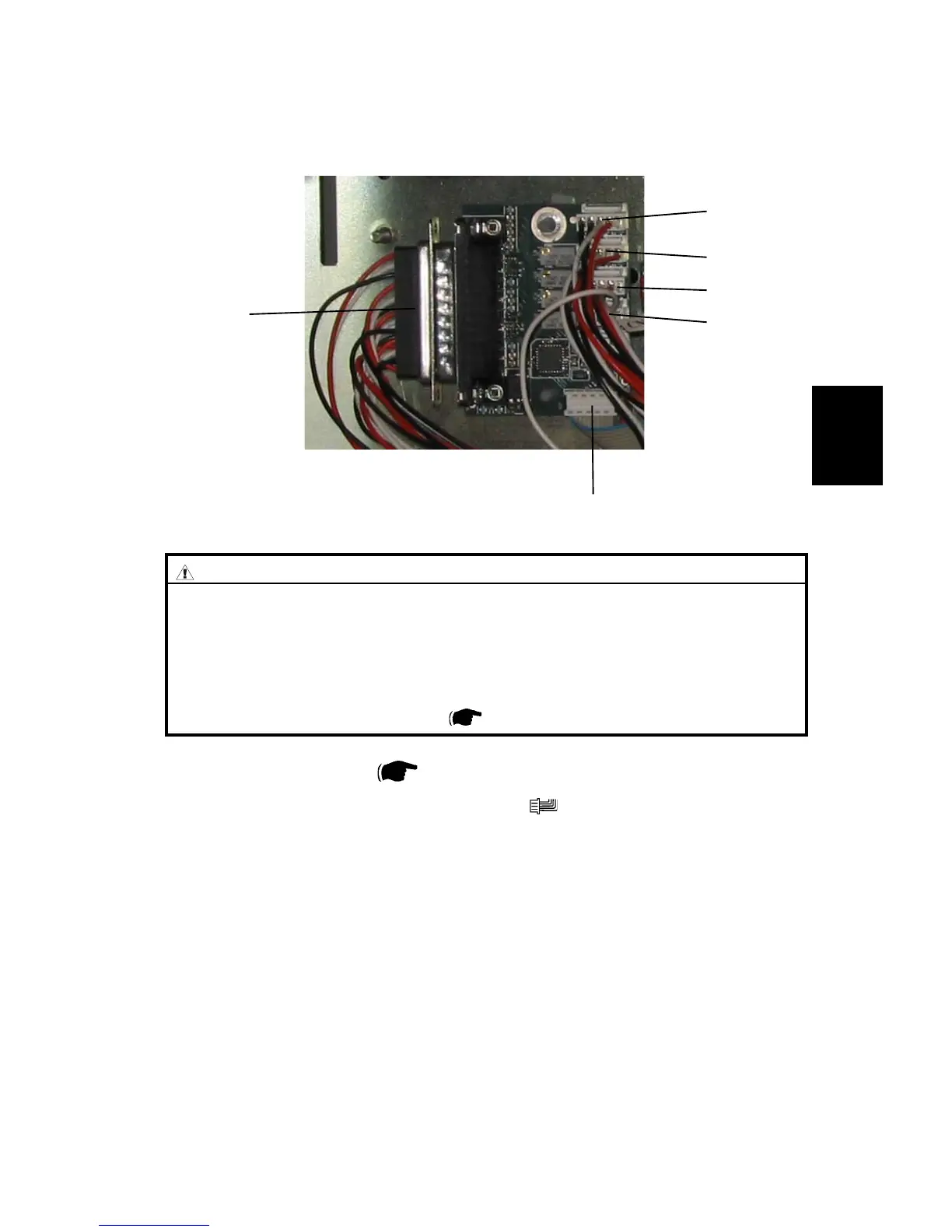

3.7.6 ADDON PCB ”F”
1. Remove Front cover ( 3.3.1 ).
2. Remove all connectors from the PCB ”F” (
x6 ).
3. Squeeze the barbs of the pins and remove PCB ”F”.
F.P1
F.P2
F.P3
F.P4
F.P6
F.P5
PCB
To Next Page
