3.4 AREA A
3.4.1 INFEED MODULE

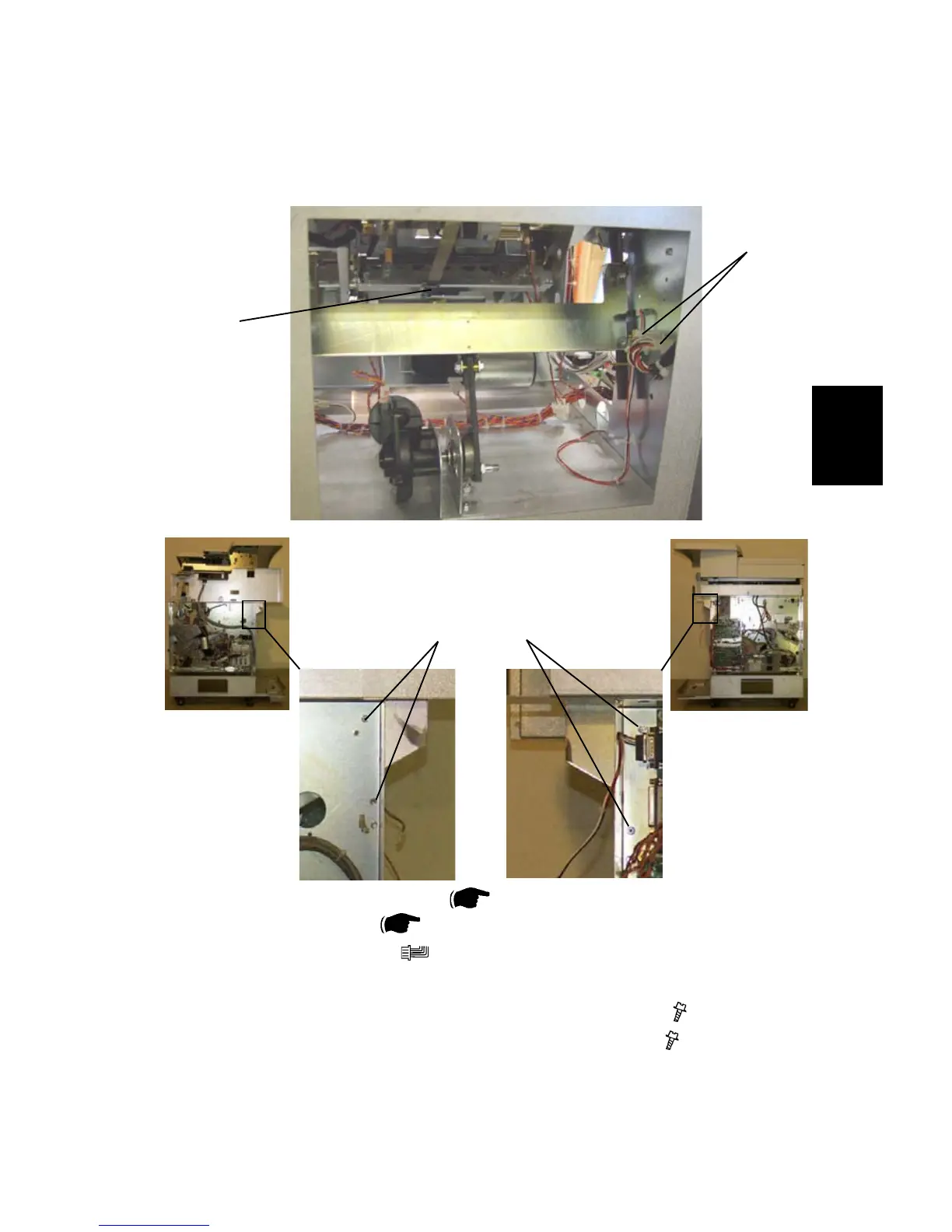

1. Remove Front and Rear cover ( 3.3.1 ).
2. Remove Infeed cover (
3.3.2 ).
3. Remove connectors [A] (
x2 ).
4. Unhook of the length adjustment strap
[B].
5. Remove screws [C] on the Front side of the Booklet maker (
x2 ).
6. Remove screws [D] on the Rear side of the Booklet maker (
x2 ).
7. Pull out the Infeeder carefully.
NOTE: Make sure that the Side jogger motor M3 is not catching the frame of the
Booklet maker.
