BOOKLET QUALITY ADJUSTMENT
3.9.7 STAPLE AND FOLD POSITION
Purpose
The purpose is to ensure that the set is folded in the center of the set, and that the
staple is positioned in the center of the set.
Initial Action
1. Check/adjust Side Guide Parallelism ( 3.9.2 ).
2. Make sure that the value ”Index 3, Rear jogger offset” in EEPROM values, is
the same value as the value on the label in the back of the machine.
3. If not, Change the value in EEPROM values to the value on the label.
4. Set up the Booklet maker for 297x420 mm / 11x17” in Custom size.
NOTE: Do NOT use the preset A3 or 11x17” paper sizes.
5. Hand feed a 2-sheet set, using 297x420 mm / 11x17” paper.
6. Run a few sets.
7. Check that the staples are aligned with fold, and that the fold is in the middle
of the set. If not, go to Adjustment.

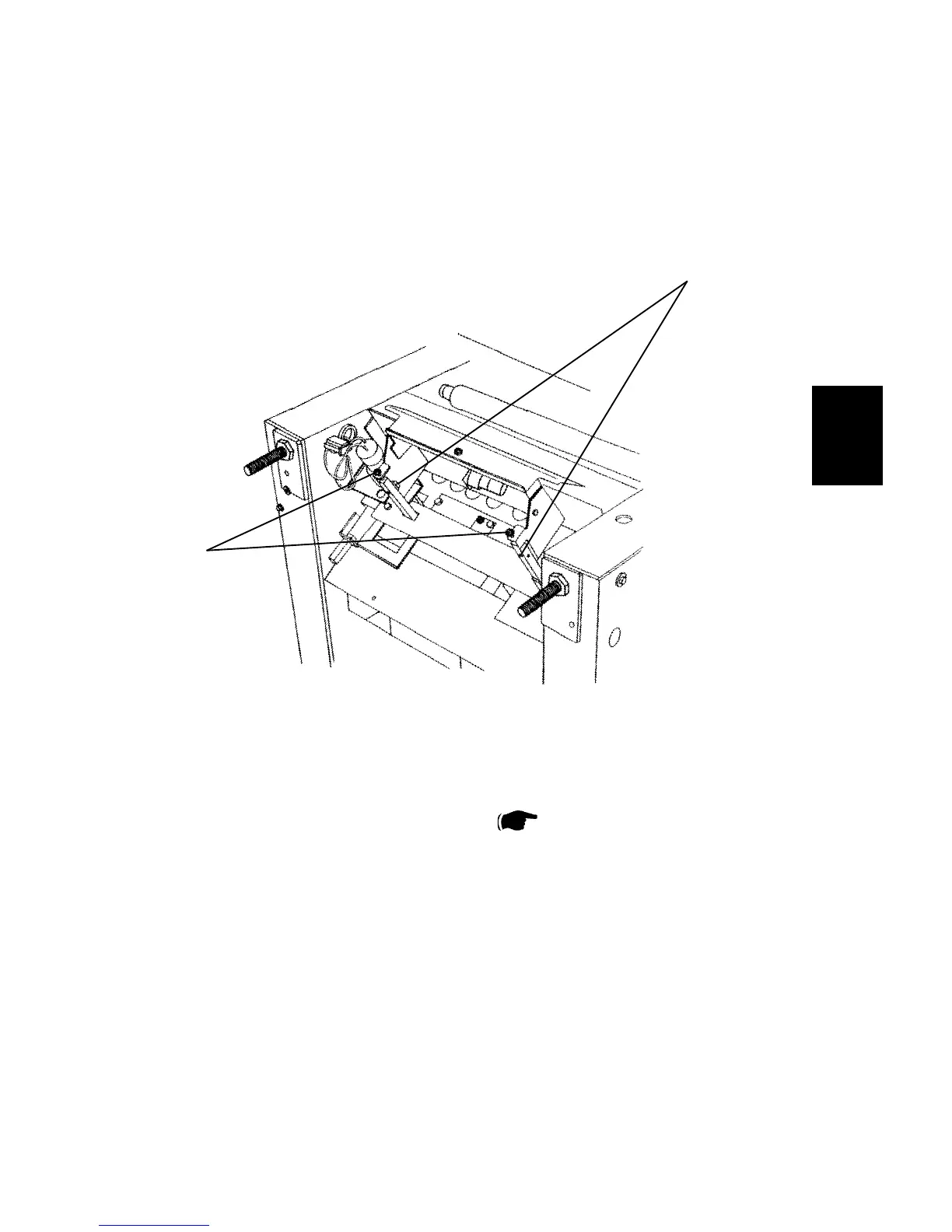

Shown in tipped position for clarity
Continued on next page....
