Replacement
Adjustment
21 August 2006
Replacement
Adjustment
3-93
POWER REQUIREMENTS
Purpose
To be able to change the Transformer setting.
Removal

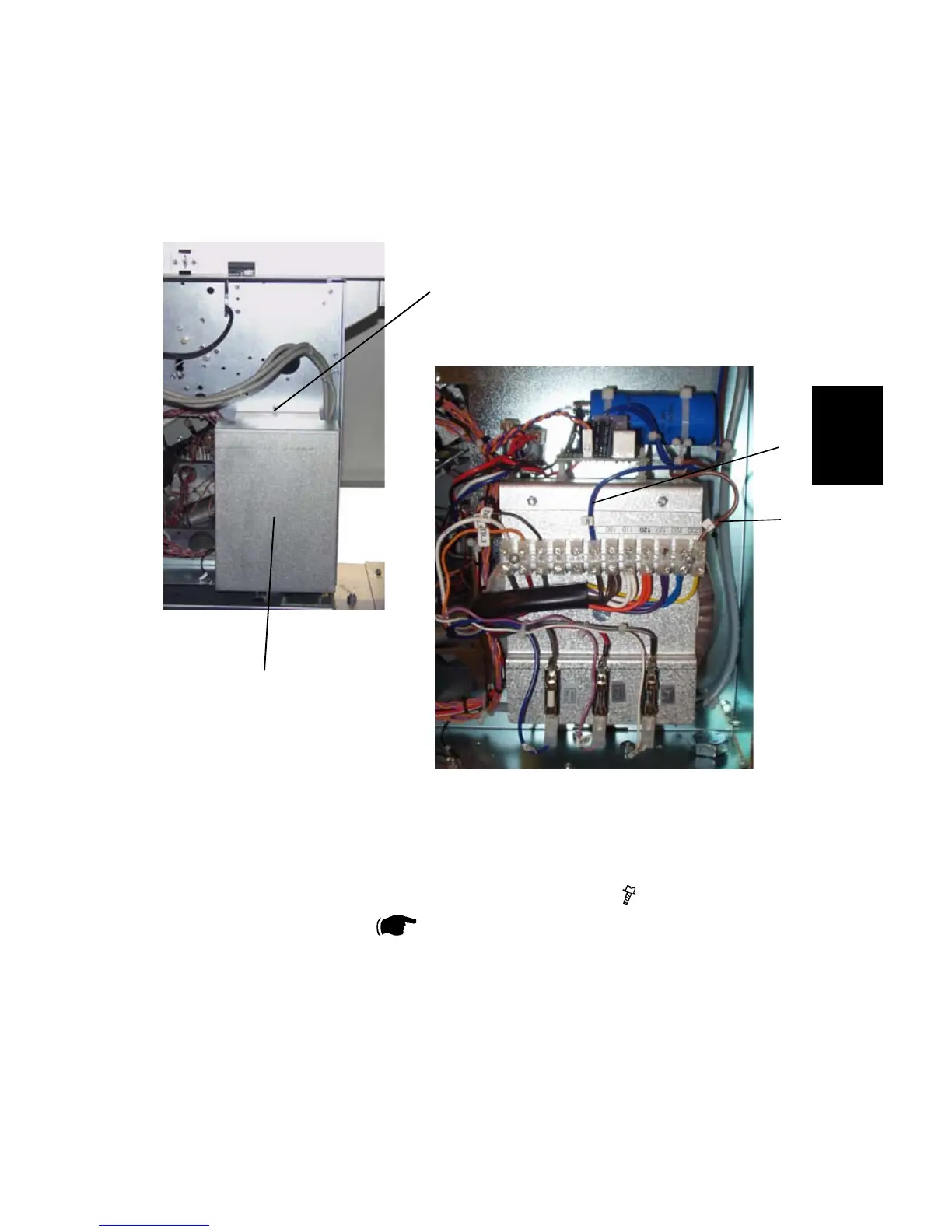

1. Remove screw [A] and renove Transformer cover [B] (
x1 ).
2. Remove Front Cover (
3.3.1 ).
Adjustment
1. Measure the wall outlet voltage.
2. Tap the Transformer to the appropriate setting according to the label on the
Transformer by moving cable [C].
NOTE: Do not move cable [D].
Replacement
1. Reverse the removal procedure.
[D]
[C]
3.10 POWER REQUIREMENTS
3.10.1 TAPPING THE TRANSFORMER
Transformer in picture tapped for 230V
[B]
[A]
