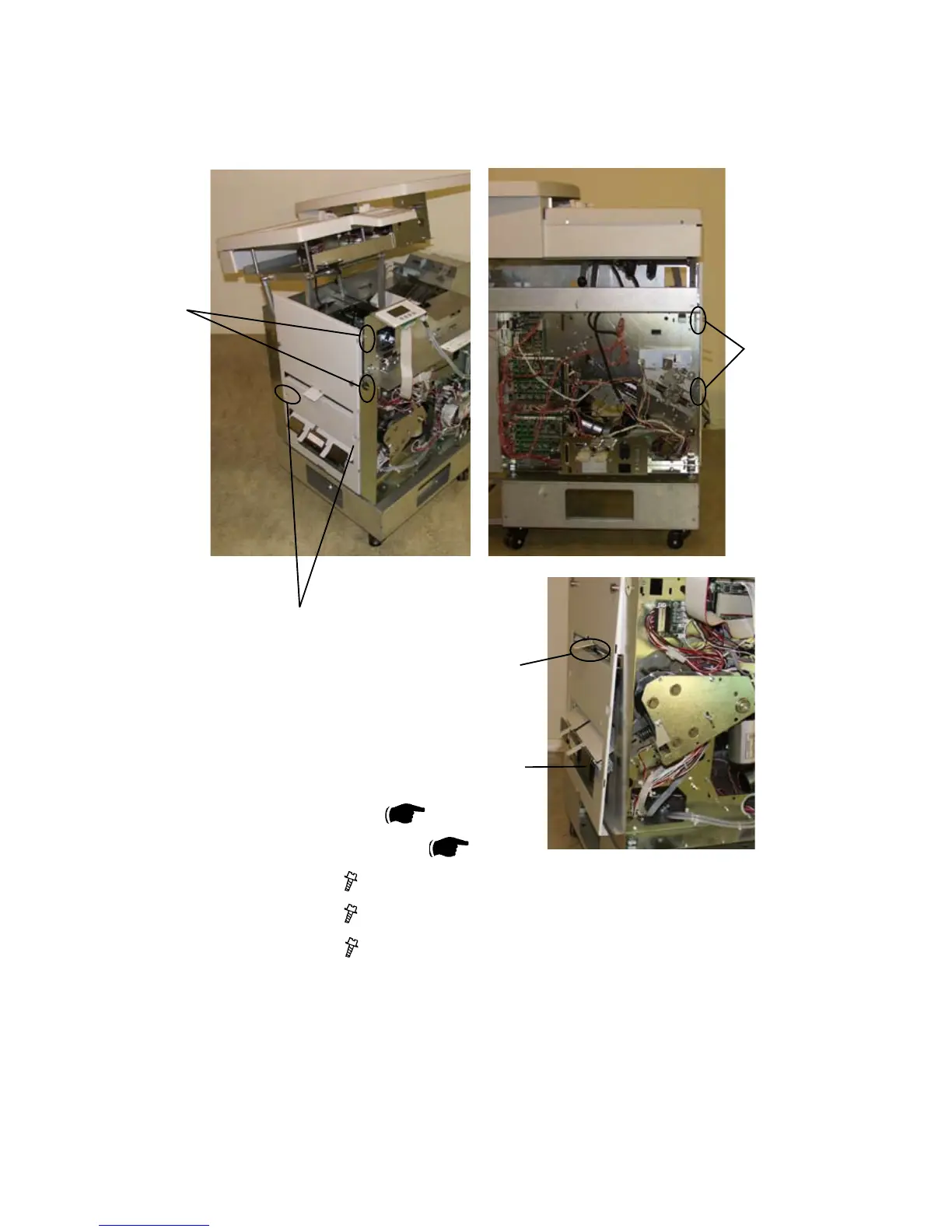

3.3.4 OUTFEED COVER
COVERS
[B]
1. Set the machine to A4.
2. Remove Stacker module (
3.8.1 ).
3. Remove Front and Rear cover (
3.3.1 ).
4. Remove screws [A] (
x2 ).
5. Remove screws [B] (
x2 ).
6. Remove screws [C] (
x2 ).
7. Turn Fold Gate [D] halfway to its downmost position.
8. Pull out lower end of the Outfeed Cover and lift it up enough to clear the Out
-
feed Sensor [E].
10. Pull out upper end of the Outfeed Cover and lower it until it touches the Fold
Gate.
11. Turn Fold Gate to its uppermost position and remove Outfeed cover.
[A]
[D]
[C]
[E]
