3.6.9 FOLD TRANSMISSION GEAR ASSEMBLYS

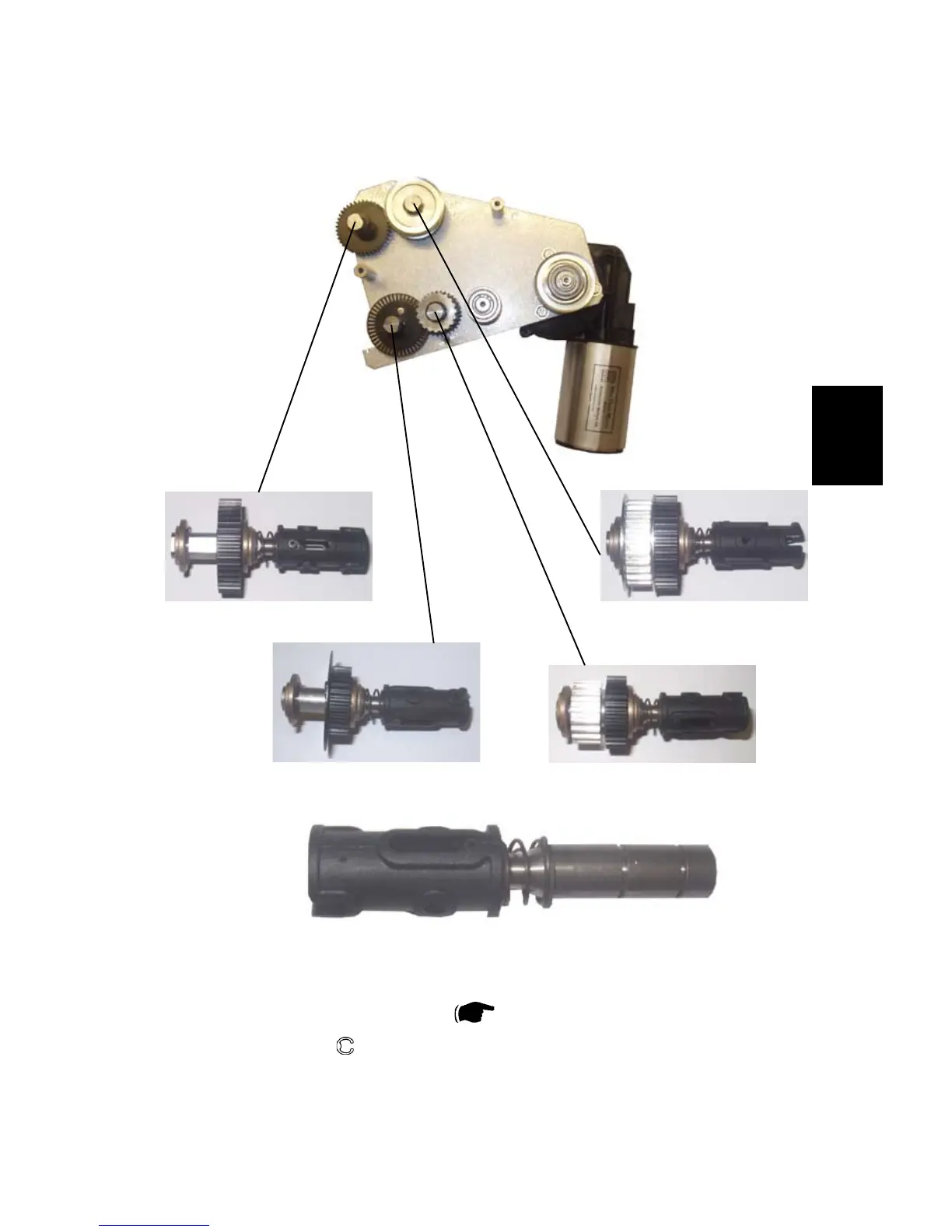

[A] [B]
[C] [D]
[E]
1. Remove Fold transmission belt (
3.6.7 ).
2. Remove E-clips (
).
3. Remove transmission gears.
4. It is the same Fold transmission coupling assembly [E] on all of the Fold trans
-
mission gear assembly’s.
