Replacement
Adjustment
21 August 2006
Replacement
Adjustment
3-85
BOOKLET QUALITY ADJUSTMENT

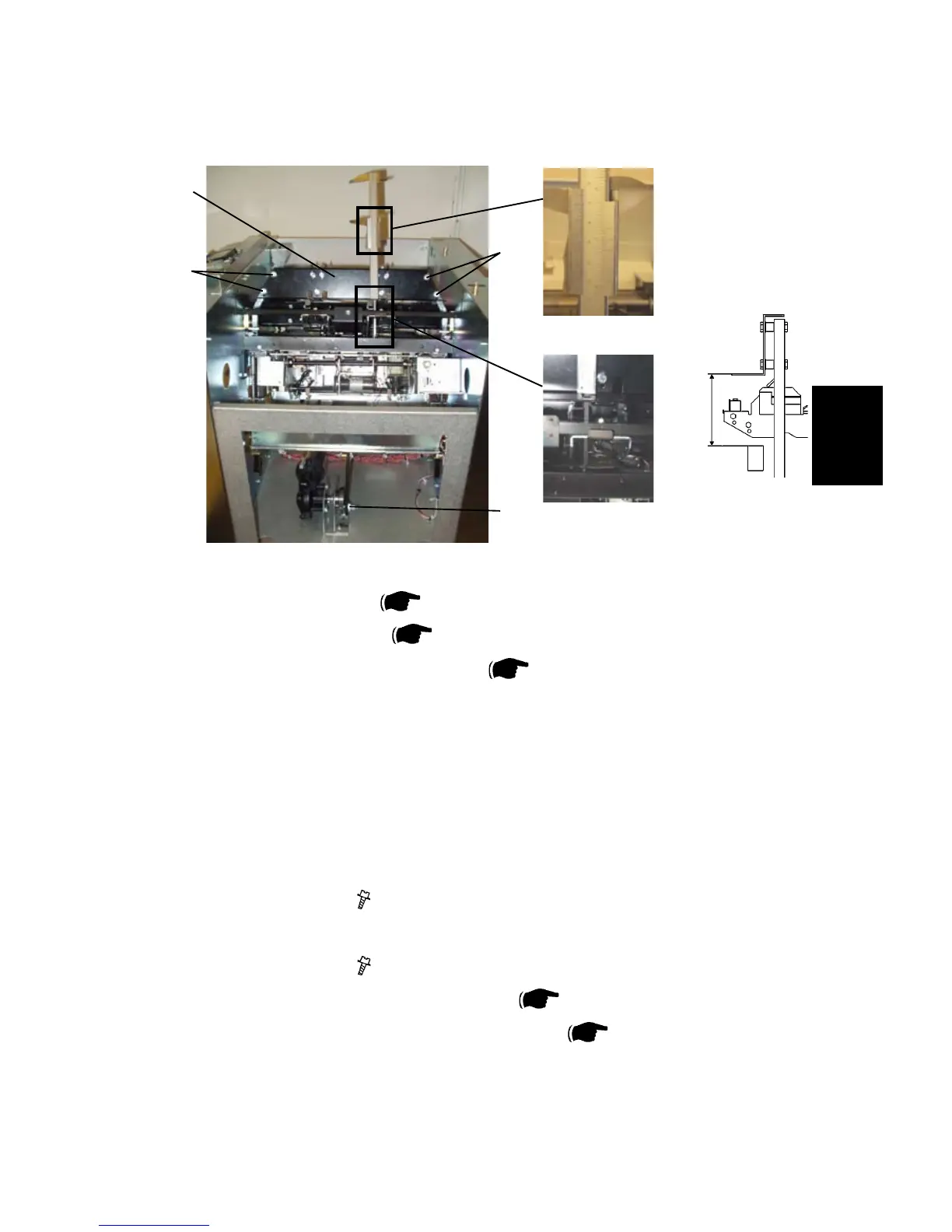

3.9.4 STAPLER PRESSURE
Removal Front
1. Remove Infeed cover (
3.3.2 ).
2. Remove Stapler heads (
3.4.12 ).
3. Check/adjust the Clincher Pressure (
3.9.6 ).
4. Rotate the motor linkage [A] to the down dead center.
NOTE: Use a 17 mm open wrench.
Adjustment
1. Use a sliding calliper, and check that the distance between the upper side of the clincher
bar, and the upper side of the sheet plate is 70 mm ± 0,3 mm. If not, go to step 2.
NOTE: Check both front and rear side.
2. Loosen screws [B] (
x4 ).
3. Adjust the sheet plate [C] according to step 1.
4. Tighten screws [B] (
x4 ).
5. Check/adjust the Stapler assy drive bar (
3.4.15 ).
6. Check/adjust Stapler head retraction distance (
3.4.13).
Replacement
1. Reverse the removal procedure.
[B]
[A]
[B]
[C]
70 ± 0,3 mm
