COVERS
3.3.3 INFEEDER

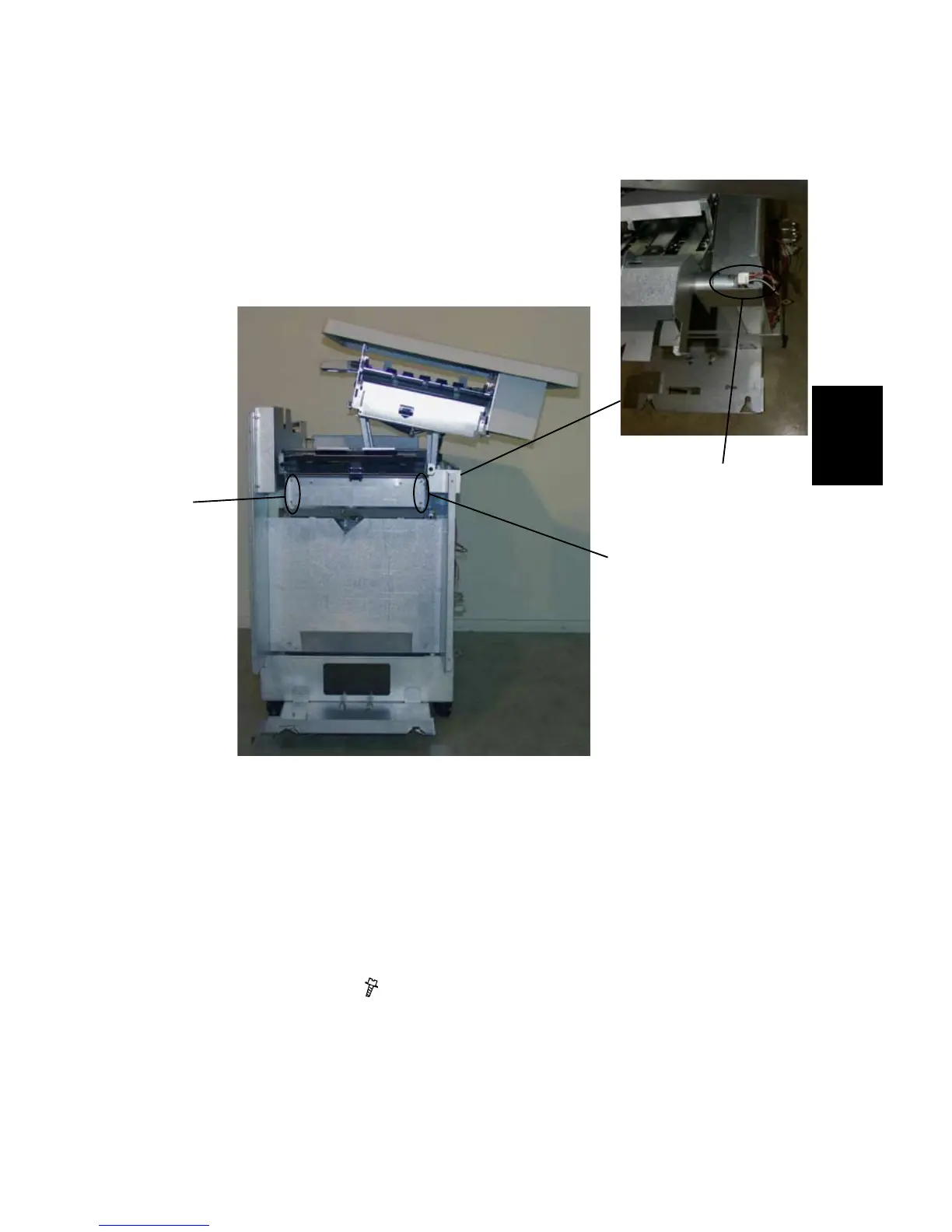

1. Open the Top Cover.
2. Remove screws [A] (
x4 ).
3. Disconnect connector [B].
4. Lift out the Infeeder.
[A]
[A]
[B]
