Replacement
Adjustment
3-35
AREA A
3.4.14 STAPLER MOTOR M4
Removal
1. Remove Infeed cover(
3.3.2 ).
2. Disconnect connector [A] (
x1 ).
3. Remove nut [B], brass spacer [C] and screw [D] (
x1, x1 ).
4. Remove Crank journal [E] with an 17 mm open wrench.
5. Remove screw and washer [F] (
x1, x1 ).
6. Remove the Crank wheel [G].
7. Remove screws [H] to the motor (
x3 ).
Replacement
1. Reinstall screws [H] to the motor (
x3 ).
NOTE: DO NOT TIGHTEN THE SCREWS.
2. Reinstall the Crank wheel [G].
3. Reinstall screw and washer [F] (
x1, x1 ).
4. Tighten screws [H] (
x3 ).
5. Reinstall Crank journal [E] with an 17 mm open wrench.
NOTE: Make sure to install the grater end [ I ] of the Crank journal.
6. Reverse the rest of the removal procedure.

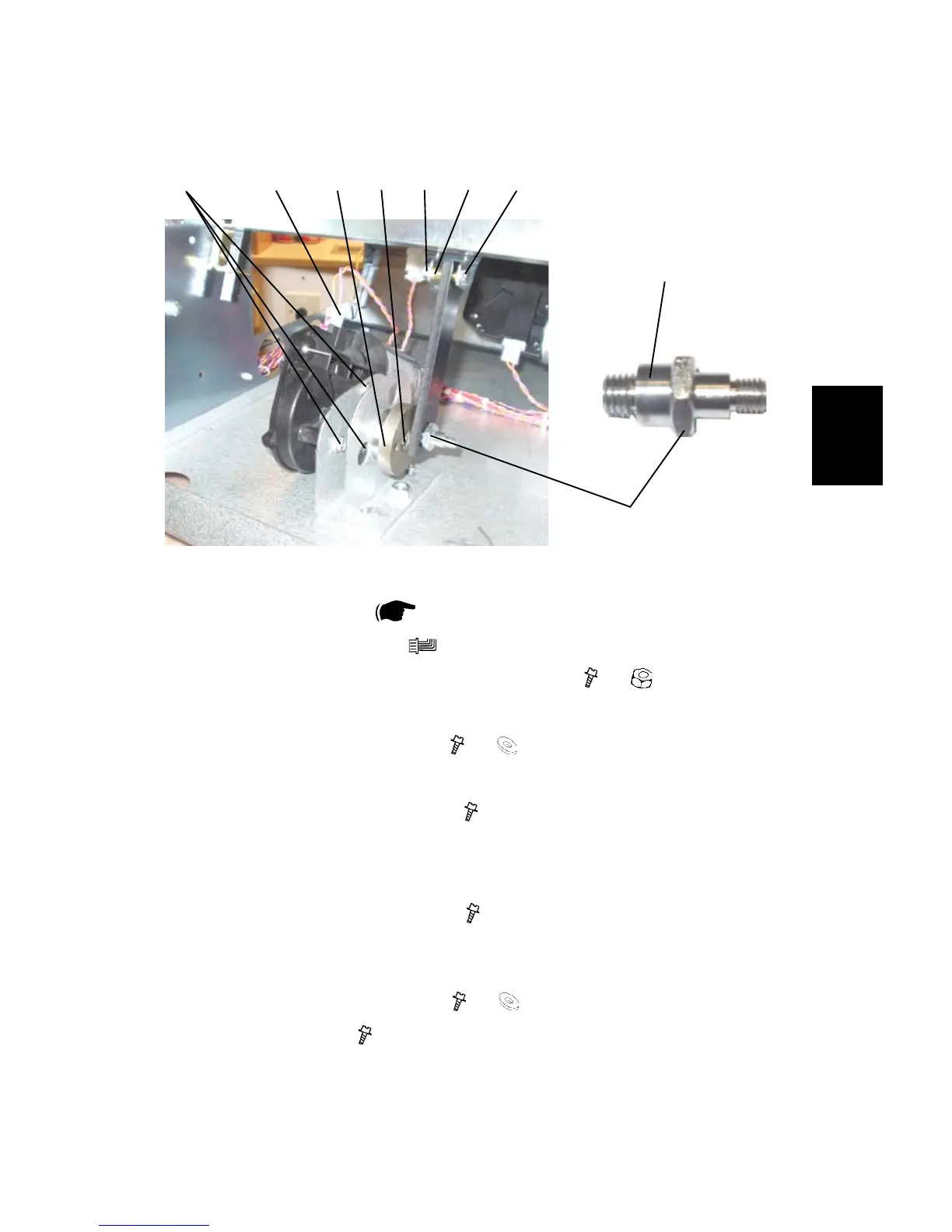

[A] [B] [C]
[D]
[E]
[F]
[G]
[H]
[ I ]
